9.6Analogoutput(Option-MIO)
The “MIO” technology option is for the purpose of expanding the digital and
analogue inputs and outputs. Options slot 2 (technology) is intended for the purpose
of IO expansion.

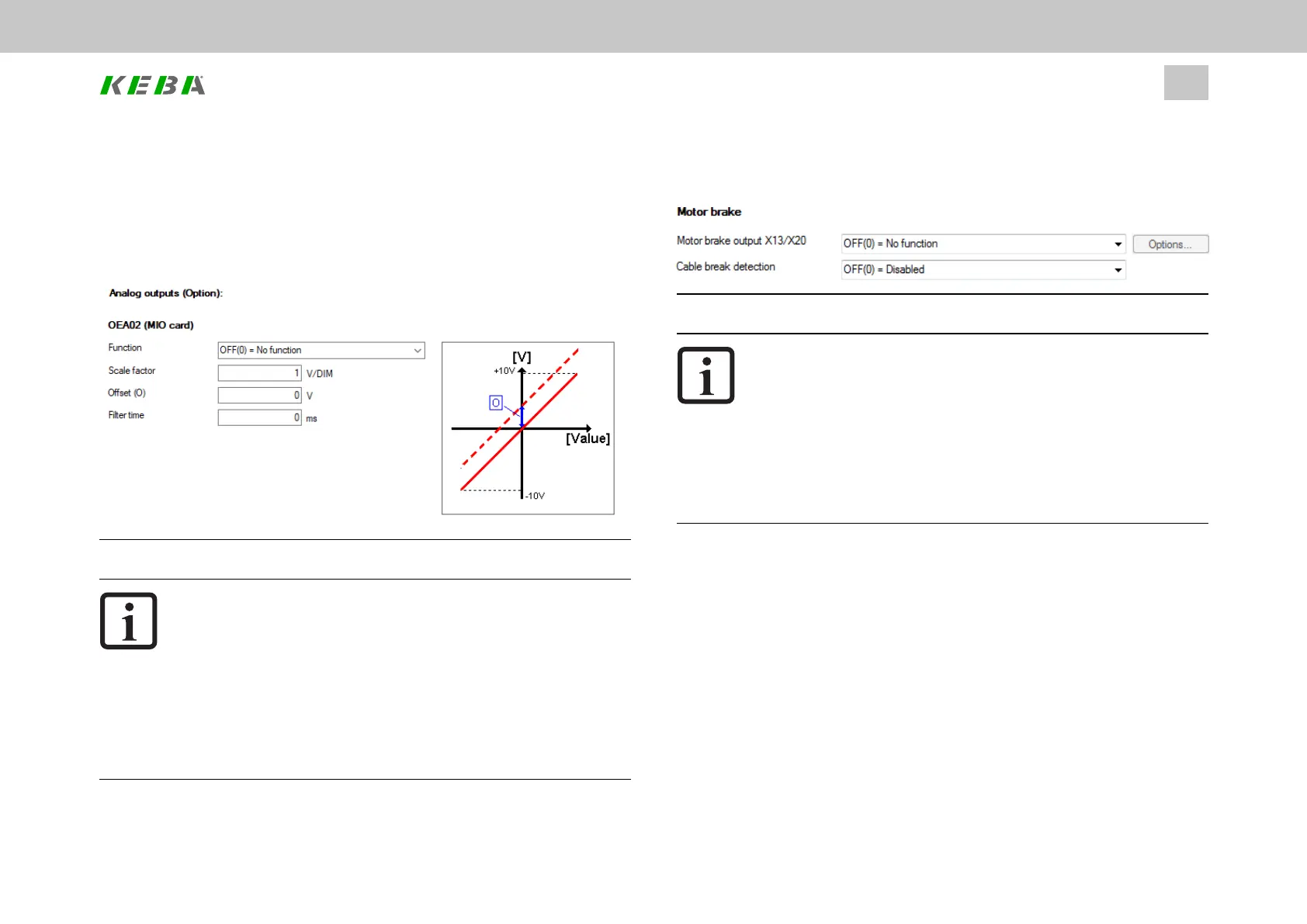

Image 9.15: "Analog output MIO" screen
NOTE
l ForacompletedescriptionoftheanalogoutputofOption2-
TechnologyMultifunctionalInput/OutputExpansion(MIO)
(technicaldata,Connections,Configuration),pleaserefertothe
"SpecificationMultifunctionalInput/OutputExpansionModule
(MIO)"(IDNo.:1106.25B.x).
l TodeterminewhetheryourServoOnehasthetechnologyoption
"MultifunctionalInput/OutputExpansionModule(MIO)",please
checktheelectronicratingplate(P 53)(seeSection"Electronic
ratingplate"onpage472).
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
321
9 Inputs/Outputs settings
9.7Motorbrakeoutput
Image 9.16: “Motor brake settings” screen
NOTE
l OntheServoOnejunior,themotorbrakeoutputforframesizes2
to5willbefoundonconnectorX13.
l OntheServoOne(Single-AxisSystemandMulti-AxisSystem),the
motorbrakeoutput...

o
Forframesizes1to4willbefoundonconnectorX13

o
Forframesizes5to6awillbefoundonconnectorX20

o
Forframesize7willbefoundonconnectorX44
An optional holding brake built-in to motor provides protection against unwanted
motion when the power is cut and in case of error. If the brake is mounted on the axis
mechanism and not directly on the shaft, note that undesirably severe torsional
forces may occur on sudden engagement of the brake.
The P125[0] - MPRO_OUTPUT_FS_MOTOR_BRAKE function selector can be
used to select any function (similar to those for the digital outputs) for the motor
brake output. However, the special motor brake control section hardware will be
used for the selected function.
However, when using a motor brake with P125[0] - MPRO_OUTPUT_FS_
MOTOR_BRAKE = BRAKE(2), the criteria for braking need to be defined. This
criteria can consist of a variety of states, limits, threshold values, input signals, and
fieldbus commands.
