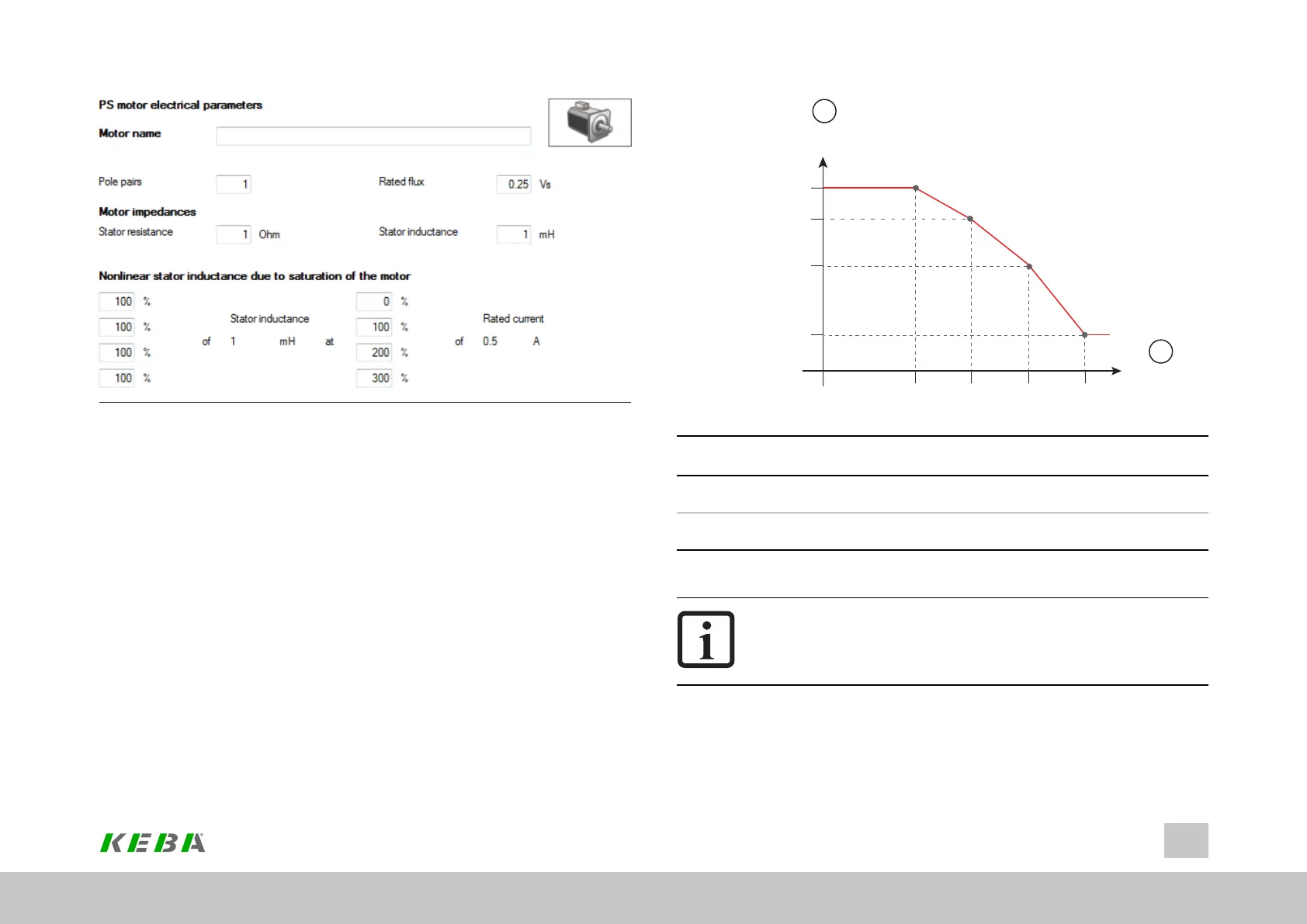

Image 7.16: “PS motor electrical parameters” screen
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
128
7 Control
Index [0] = 100 %
rated [4]
I
rated [5]
I
rated [6]
I
rated [7]
I
Inductance [%]
1
Index [1] = 90 %
Index [2] = 68 %
Index [3] = 31 %
Rated current
[%]
2
Image 7.17: Diagram: “Scaling of q-inductance L in [%]”
①
P 472[0] - [3] Lsig_q@Ix
Scalingofq-statorinductancein[%];
interpolationpoints0to3.
②
P 472[4] - [7] MOT_CurrentIx
Scalingofratedcurrentin[%];
interpolationpoints4to7.
Legend for Diagram: “Scaling of q-inductance L in [%]”
NOTE
l Betweentheinterpolationpointsthescalingfactorisinterpolated
inlinearmode.Thecurrentscalingoftheinductanceisdisplayed
inthescopevariable74_Is_ActVal .
