- 143 -

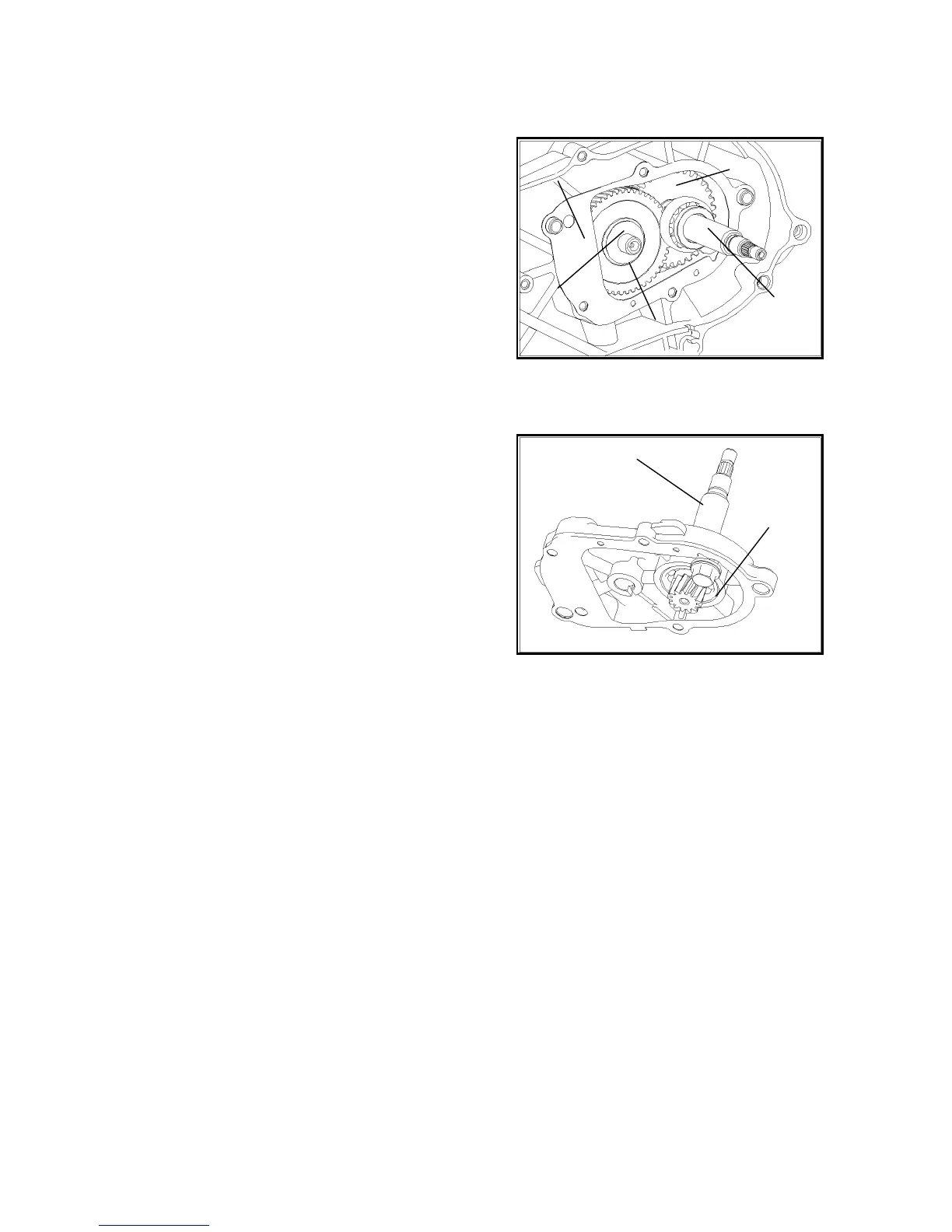

Remove the gasket and dowel.
Remove the principal axis of clutch and output shaft gear.
Remove the central jack shaft and central gear.
15.3.2 Examination of Output Gear Box
Cover
Examination of the tear and damage on the principal axis of
clutch, gear and bearing.
Bearing exchange of gear box cover.
During the bearing exchange of the principal axis of
Clutch, the principal axis of clutch should be punched and
removed from the gear box cover.
Note:
The punched bearing cannot be reused and should be
changed into new one. The disassembly of bearing and
grease seal should be applied with professional tools.
Remove the grease seal from gear box and make the bearing.
Note:
The punched bearing cannot be reused and should be changed into new one. The disassembly of bearing and
grease seal should be applied with professional tools.
15.4 Assembly
The assembly should be conducted in the adverse order of disassembly.
Note: The assembly of bearing and grease seal should be applied with the professional tools to avoid damage.
Jack Shaft
Central Gear
Gasket
Output Shaft
Gear
Principal Axis
of Clutch
Principal Axis of
Clutch
Grease Seal Bearing
