2400 Series SourceMeter
®
User’s Manual Source-Measure Concepts 6-23
Figure 6-10 shows the limit lines for the I-Source. The current source limit line represents
the maximum source value possible for the presently selected current source range. For
example, if on the 100mA current source range, the current source limit line is at 105mA.
The voltage compliance limit line represents the actual compliance that is in effect.
Remember that compliance can be real or range (see “Compliance limit,” page 6-2). These
limit lines are boundaries that represent the operating limits of the SourceMeter for this
quadrant of operation. The operating point can be anywhere inside (or on) these limit
lines. The limit line boundaries for the other quadrants are similar.

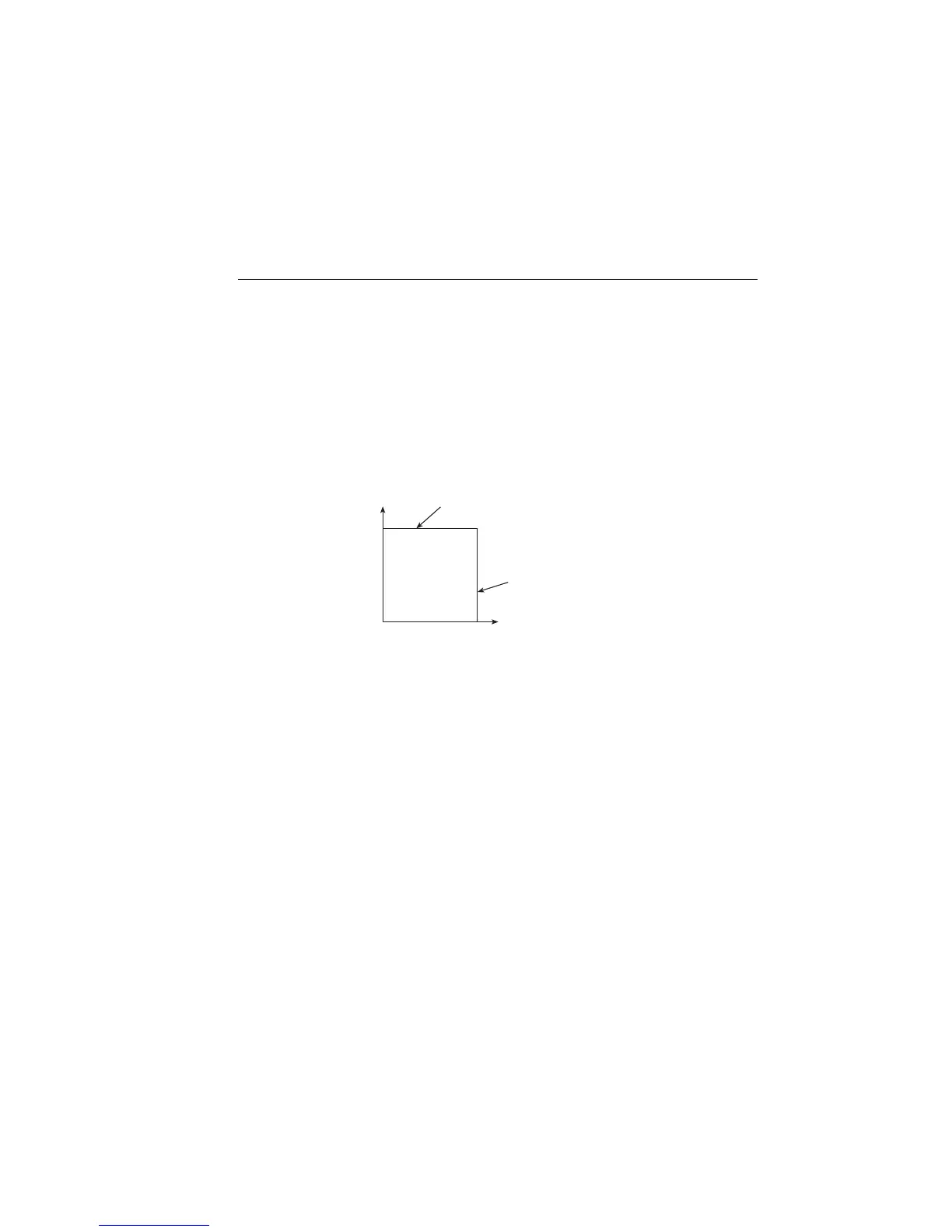

Figure 6-10
I-Source limit lines
Voltage Compliance
Limit Line
Current Source
Limit Line
I Source
V Measure
