2400 Series SourceMeter

User’s Manual Source-Measure Concepts 6-37

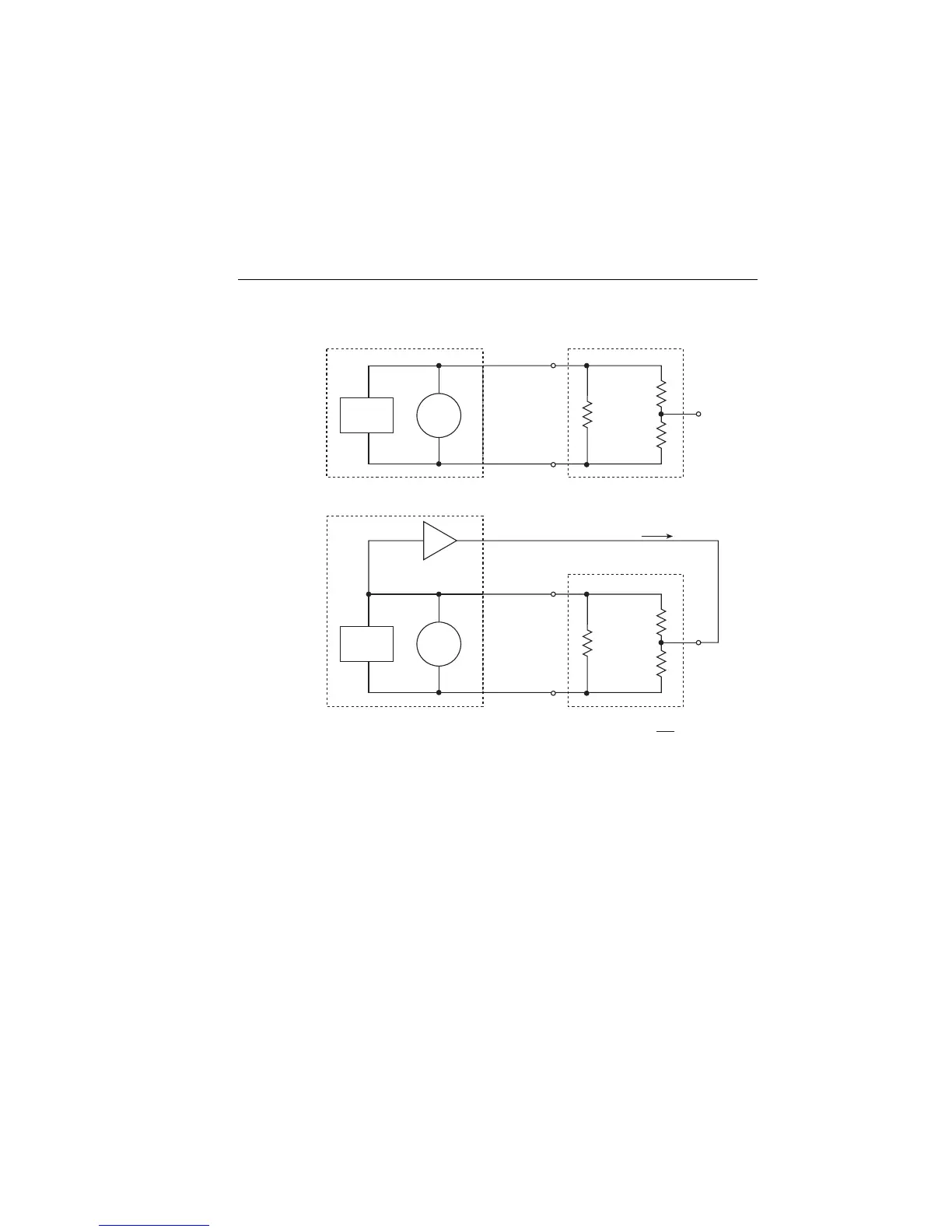

Figure 6-19

In-circuit ohms measurements

IN/OUT

A. Unguarded

SourceMeter

10kΩ

V-MeterI-Source

B. Guarded

10kΩ

20kΩ

Resistor Network

IN/OUT

Note: Ohms guard selected

10kΩ

V-MeterI-Source

10kΩ

20kΩ

Resistor Network

GUARD (Ohms mode)

SourceMeter
