2400 Series SourceMeter

User’s Manual Source-Measure Concepts 6-39

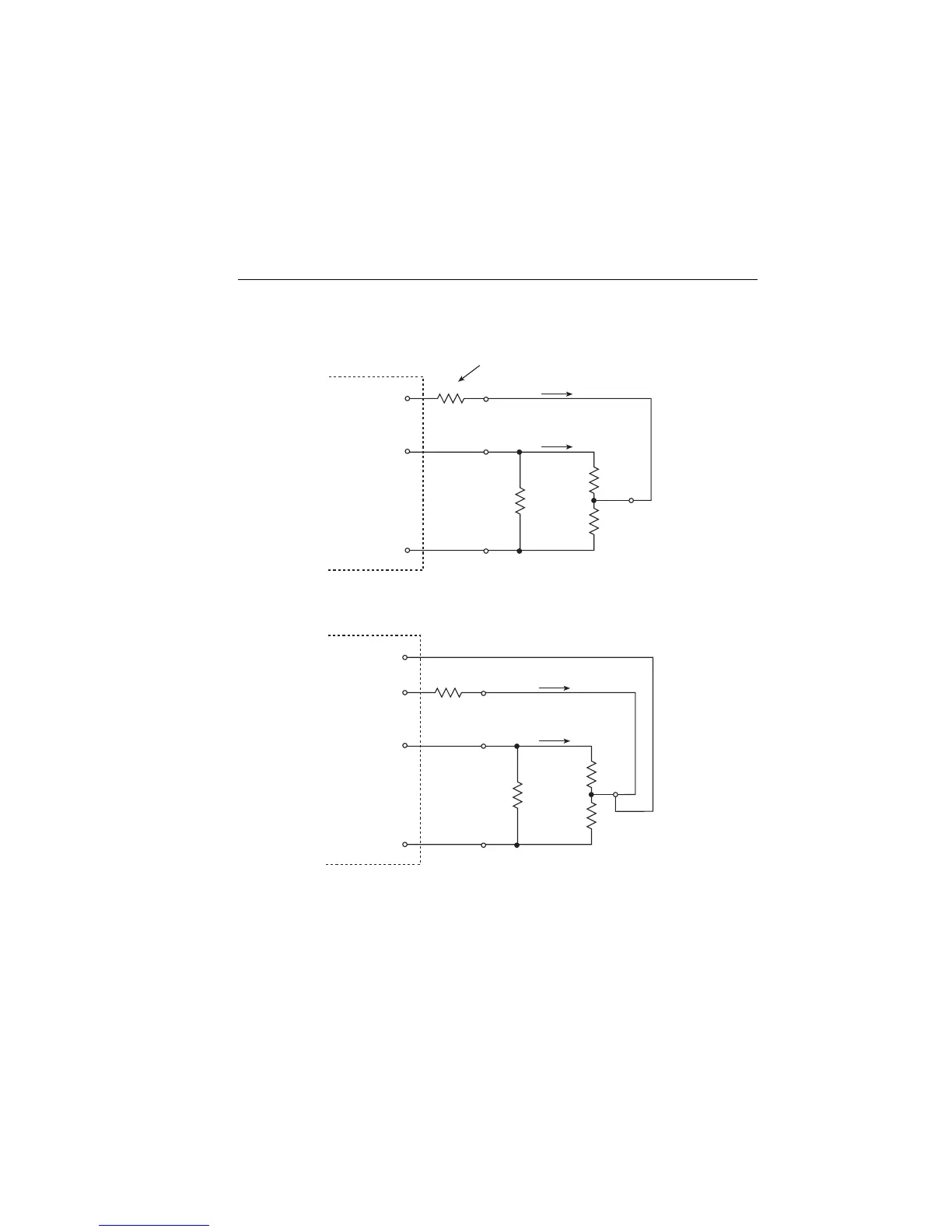

Figure 6-20

In-circuit ohms measurements using guard sense

GUARD (Ohms

mode)

B. Remote Guard Sense

A. Local Guard Sense

SourceMeter

1Ω

Test lead resistance

IN/OUT

100Ω

10kΩ

20kΩ

GUARD (Ohms

mode)

1Ω

IN/OUT

100Ω

10kΩ

20kΩ

GUARD

SENSE

SourceMeter

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
