Application Programs 5
Example Program for Excel 97
E364xA User’s and Service Guide 149
Example Program for Excel 97
This section contains the example program written using
Excel Macros (Visual Basic for Applications) to control your
power supply. With Excel, you can take the value of a cell in
a spread- sheet, send it to the power supply, and then record
the response on the worksheet. The example on the
following pages characterizes a component across the
terminals of the power supply. This example reads 11
voltages from a worksheet, programs the power supply to
that voltage, and then reads the current. The value of
current is recorded next to the voltage on the spread- sheet.

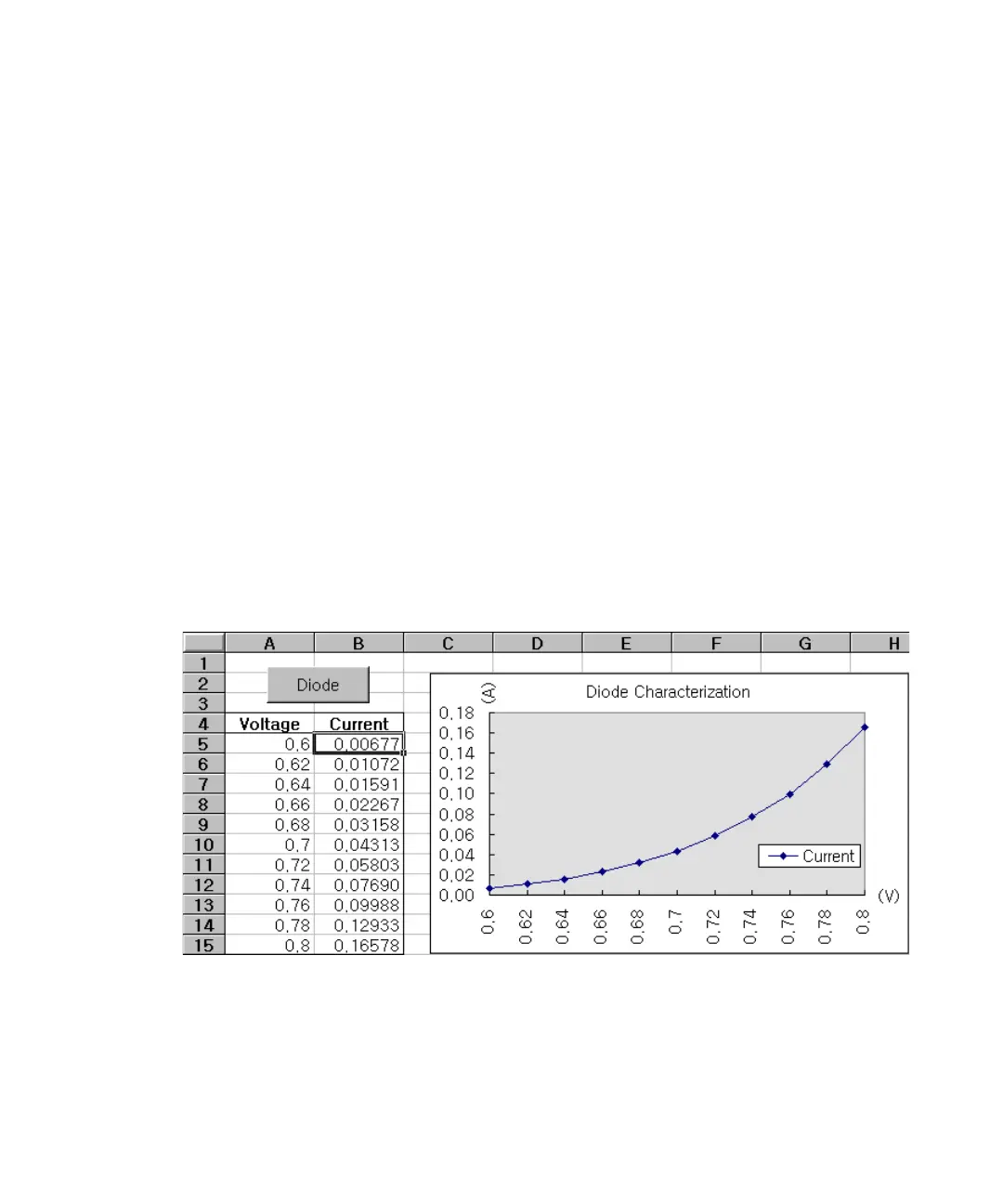

Example program result
The following table shows the result of the example program
starting on
page 151 for characterizing a diode.
(Keysight part number: 1901- 1214, manufacturer part
number: MUR160, Motorola Co.)
Figure 5-1 Example program result
