Product at a Glance
E364xA User’s and Service Guide 21
Display annunciators

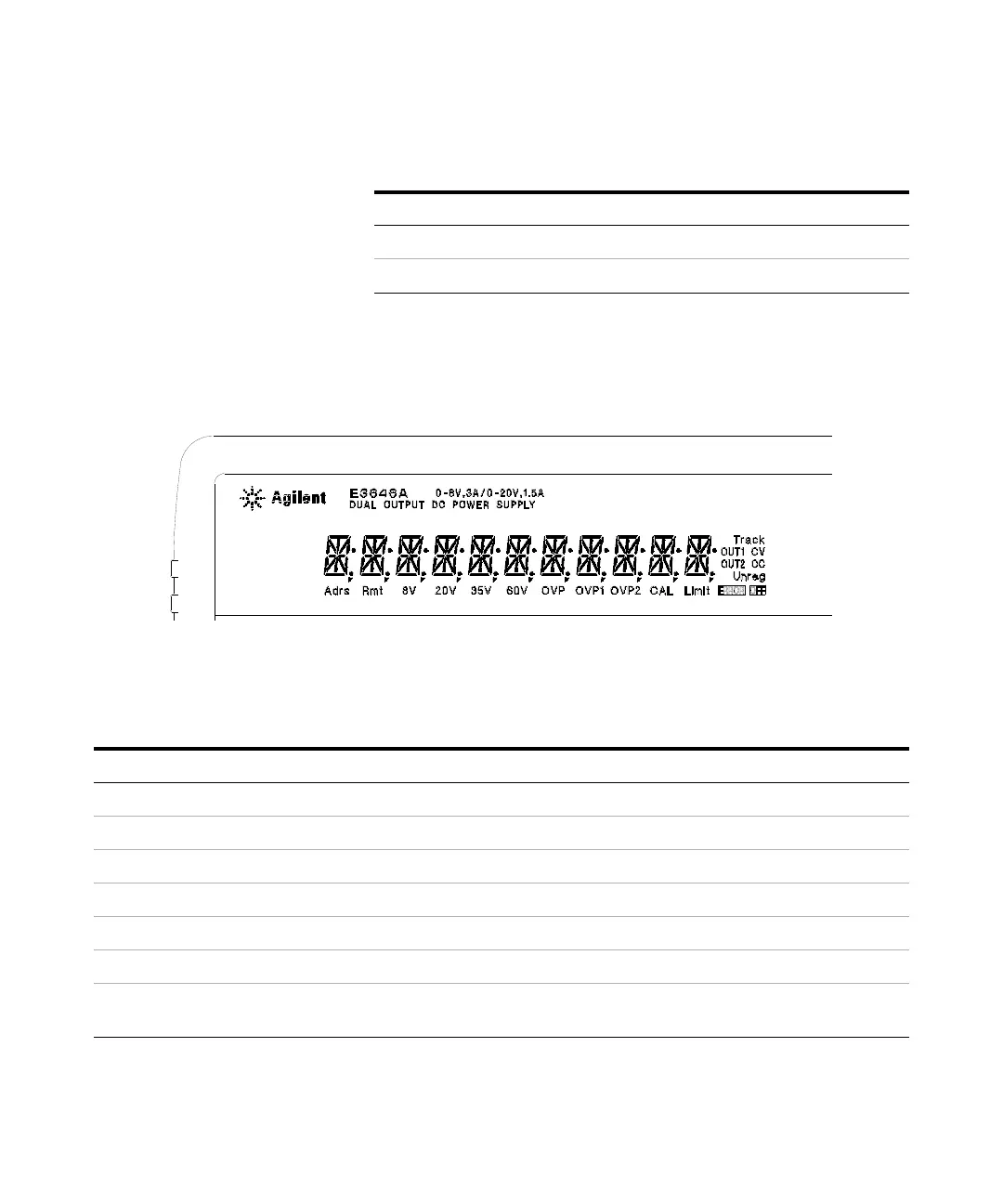

Figure 1-6 Display annunciators
6 GPIB (IEEE-488) interface connector
7 RS-232 interface connector
Table 1 - 5 Rear panel overview (continued)
No Description
Table 1 - 6 Display annunciators overview
Item Description
Adrs The power supply is addressed to listen or talk over a remote interface.
Rmt The power supply is in the remote interface mode.
8V
[1]
/35V
[2]
Indicate that the low voltage range is selected.
20V
[1]
/60V
[2]
Indicate that the high voltage range is selected.
OUT1 The output1 is selected for the front panel or remote operation.
OUT2 The output2 is selected for the front panel or remote operation.
OVP1 The output1 overvoltage protection function is enabled when the OVP1 annunciator turns on or the
overvoltage protection circuit has caused the power supply to shut down when the annunciator blinks.
