E364xA User’s and Service Guide 19
Voltage and current limit settings
You can set the voltage and current limit values from the
front panel using the following method.

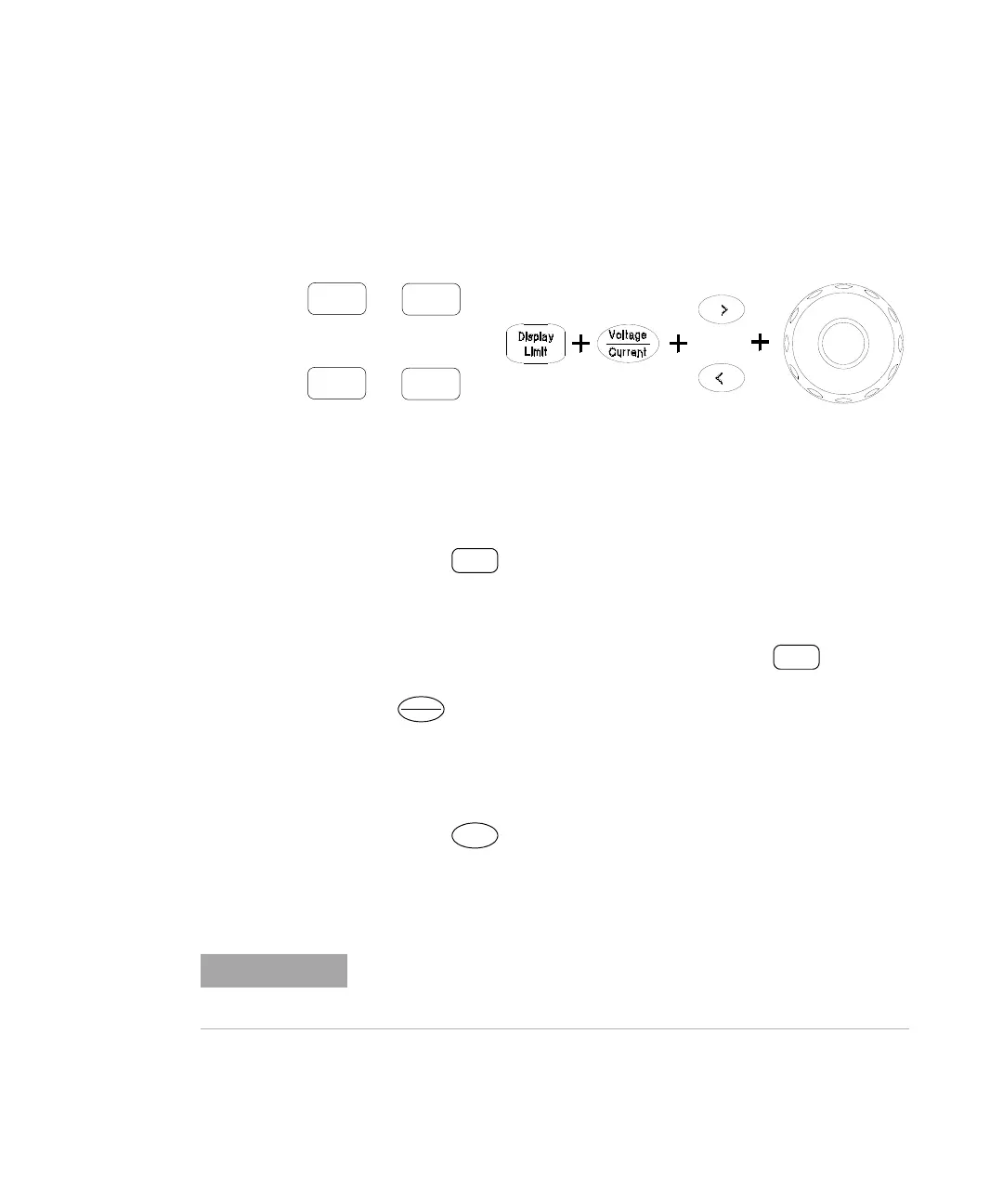

Figure 1-4 Voltage and current limit settings
1 Select the desired output and voltage range using the
output selection keys and the voltage range selection keys
after turning on the power supply.
2 Press to show the limit values on the display.
3 Move the blinking digit to the appropriate position using
the resolution selection keys and change the blinking digit
value to the desired voltage limit by turning the control
knob. If the display limit times out, press
again.
4 Set the knob to the current control mode by pressing
.
5 Move the blinking digit to the appropriate position using
the resolution selection keys and change the blinking digit
value to the desired current limit by turning the
control knob.
6 Press to enable the output. After about 5 seconds,
the display will go to the output monitoring mode
automatically to display the voltage and current at the
output.
+
+
Low
High
Or
1
2
Or
Display
Limit
Display
Limit
Current
Voltage
On/Off
Output
NOTE
All the front panel keys and controls can be disabled with the remote
interface commands. The power supply must be in the Local mode for the
front panel keys and controls to function.
