Keysight Technologies E3646A - Measurement Techniques; Common Test Setup; Figure 8-2 Performance Verification Test Setup

Service and Maintenance 8
Measurement Techniques
E364xA User’s and Service Guide 193
Measurement Techniques
Common test setup
Most tests are performed at the front terminals as shown in
Figure 8- 2. Measure the DC voltage directly at the (+) and
(–) terminals on the front panel.

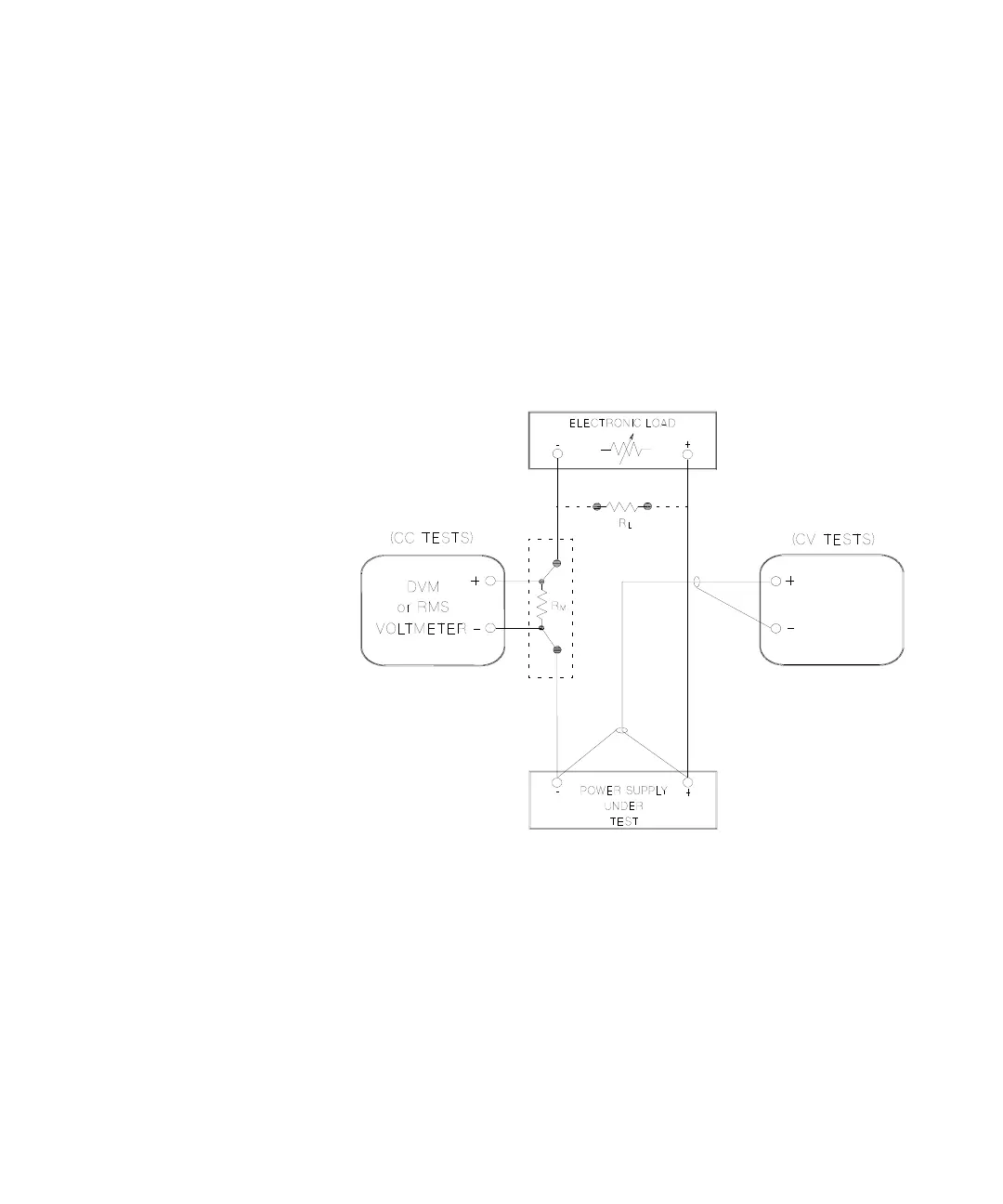

Figure 8-2 Performance verification test setup
DVM, scope,
or rms
voltmeter
