Output Characteristics
An ideal constant voltage power supply would have a zero
output impedance at all frequencies. Thus, as shown in
Figure 6- 3, the voltage would remain perfectly constant in
spite of any changes in output current demanded by the
load.

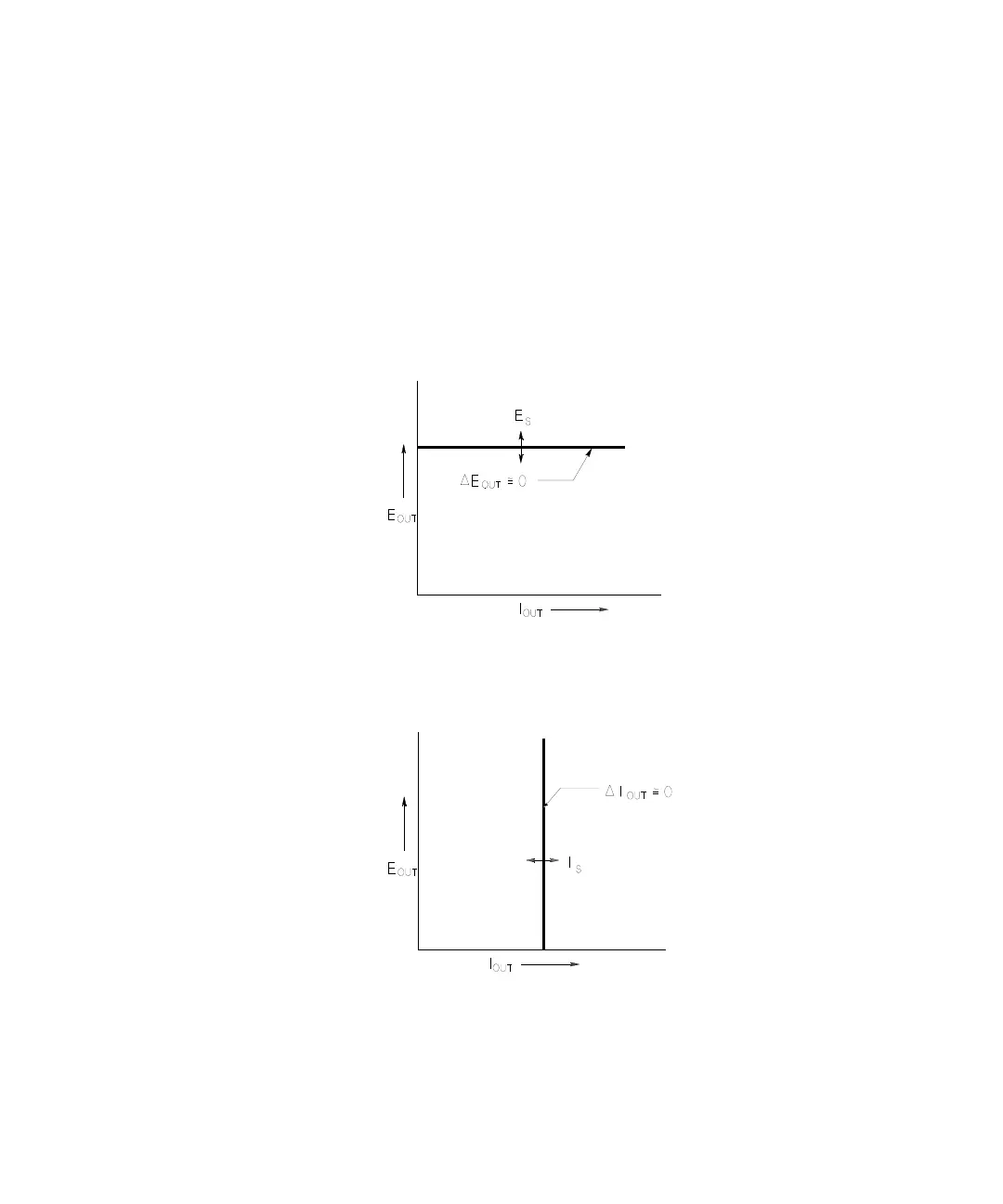

Figure 6-3 Ideal constant voltage power supply
Figure 6-4 Ideal constant current power supply
