156 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

10 Triggers

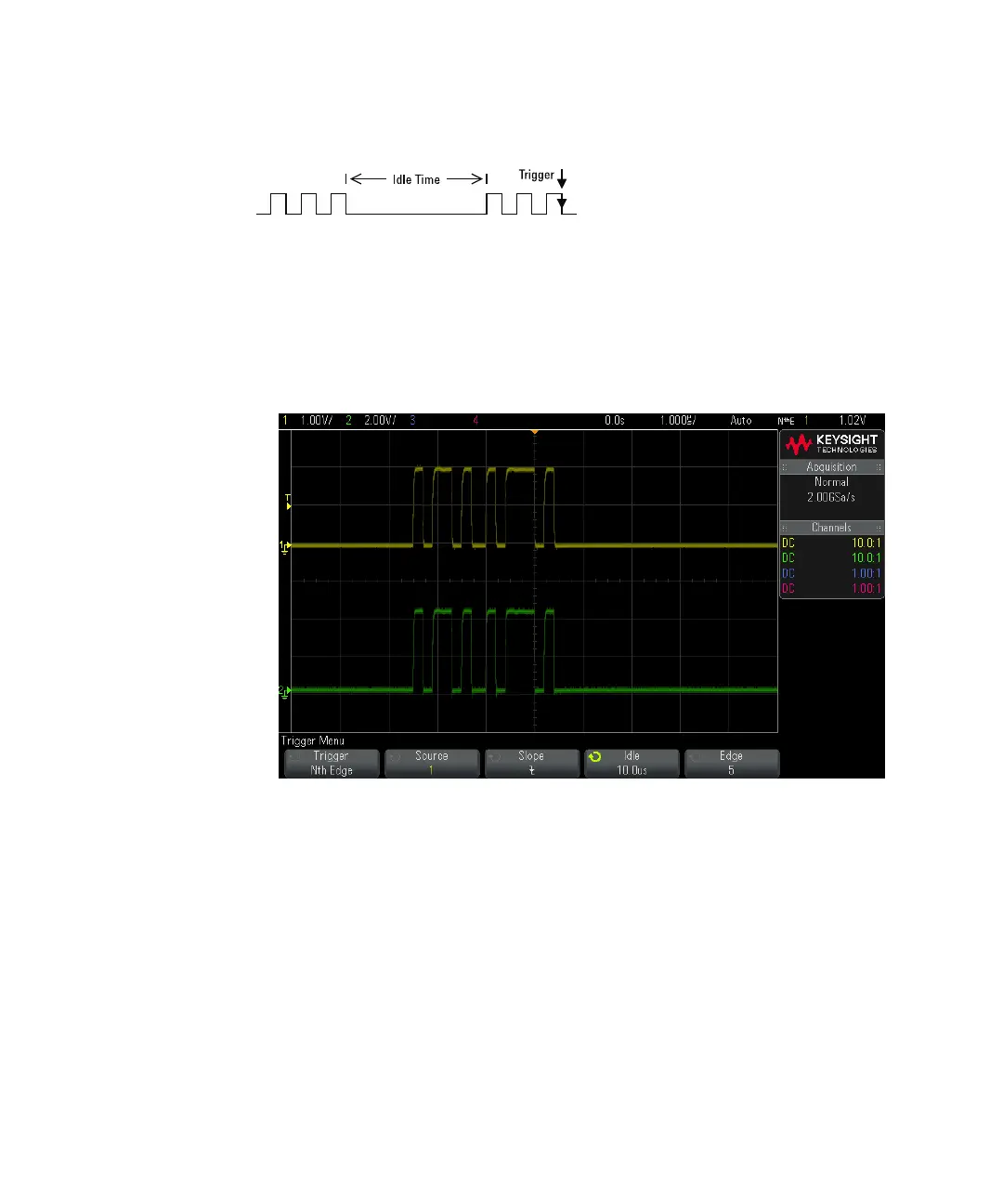

Nth Edge Burst trigger set up consists of selecting the source, the slope of the

edge, the idle time, and the number of the edge:

1 Press the [Trigger] key.

2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to

select Nth Edge Burst.

3 Press the Source softkey, and turn the Entry knob to select the input channel

source.

4 Press the Slope softkey to specify the slope of the edge.

5 Press the Idle softkey; then, turn the Entry knob to specify the idle time.

6 Press the Edge softkey; then, turn the Entry knob to which edge number to

trigger on.
