MIL-STD-1553/ARINC 429 Triggering and Serial Decode 27
Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 403
• "Interpreting MIL-STD-1553 Lister Data" on page 404
• "Searching for MIL-STD-1553 Data in the Lister" on page 405
Interpreting MIL-STD-1553 Decode
To display serial decode information, you must press [Run] or [Single] after
switching on serial decode.

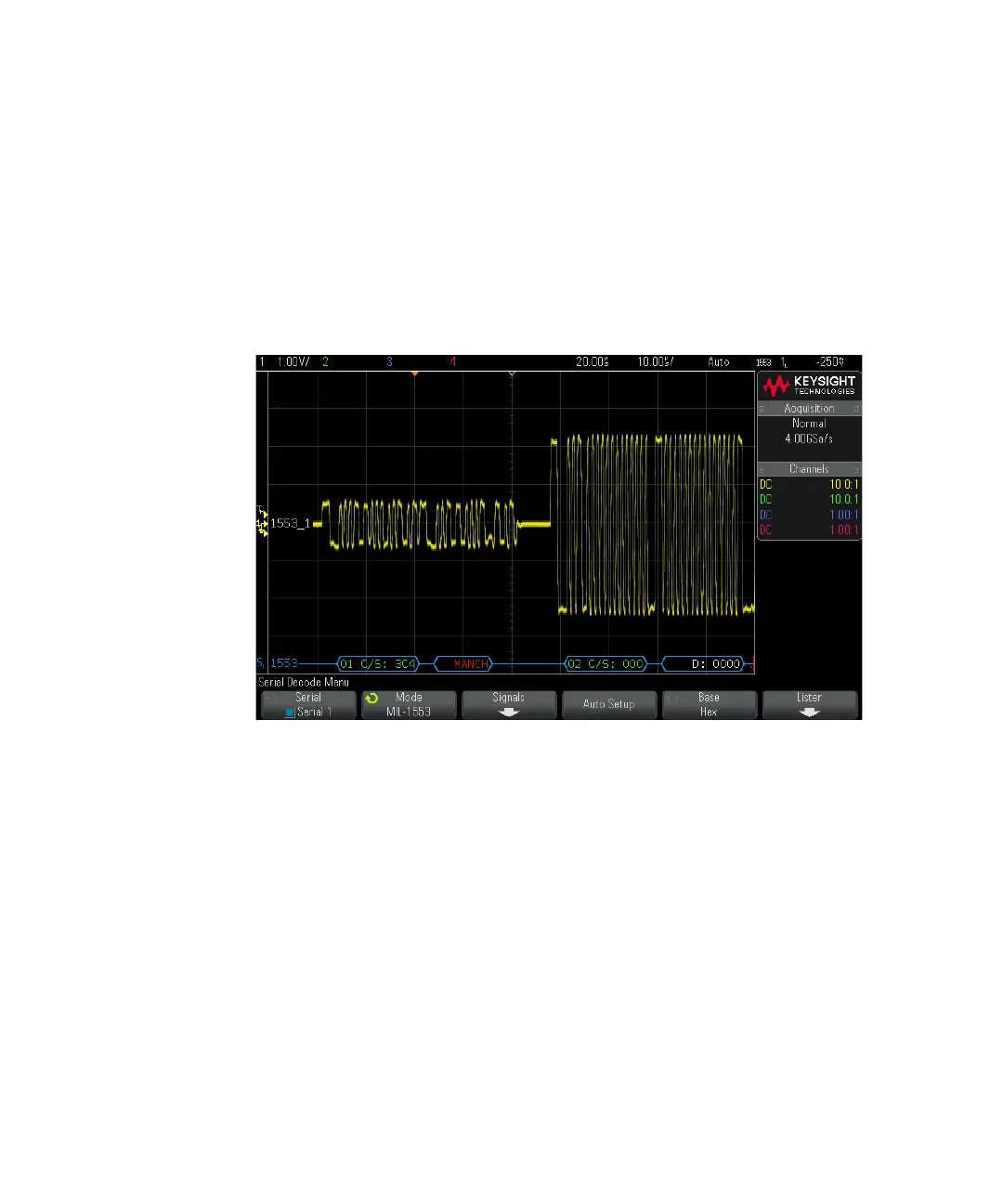

The MIL-STD-1553 decode display is color coded as follows:
• Command and Status decoded data is colored green, with the Remote Terminal
Address (5 bits of data) being displayed first, then the text "C/S:", followed by
the value of the remaining 11 bits of a Command/Status word.
• Data word decoded data is colored white, preceded by the text "D:".
• Command/Status or Data words with a Parity error have the decode text
displayed in red instead of green or white.
• SYNC errors are displayed with the word "SYNC" within red angle brackets.
• Manchester encoding errors are displayed with the word "MANCH" within blue
angle brackets (blue instead of red because a valid Sync pulse started the
word).
