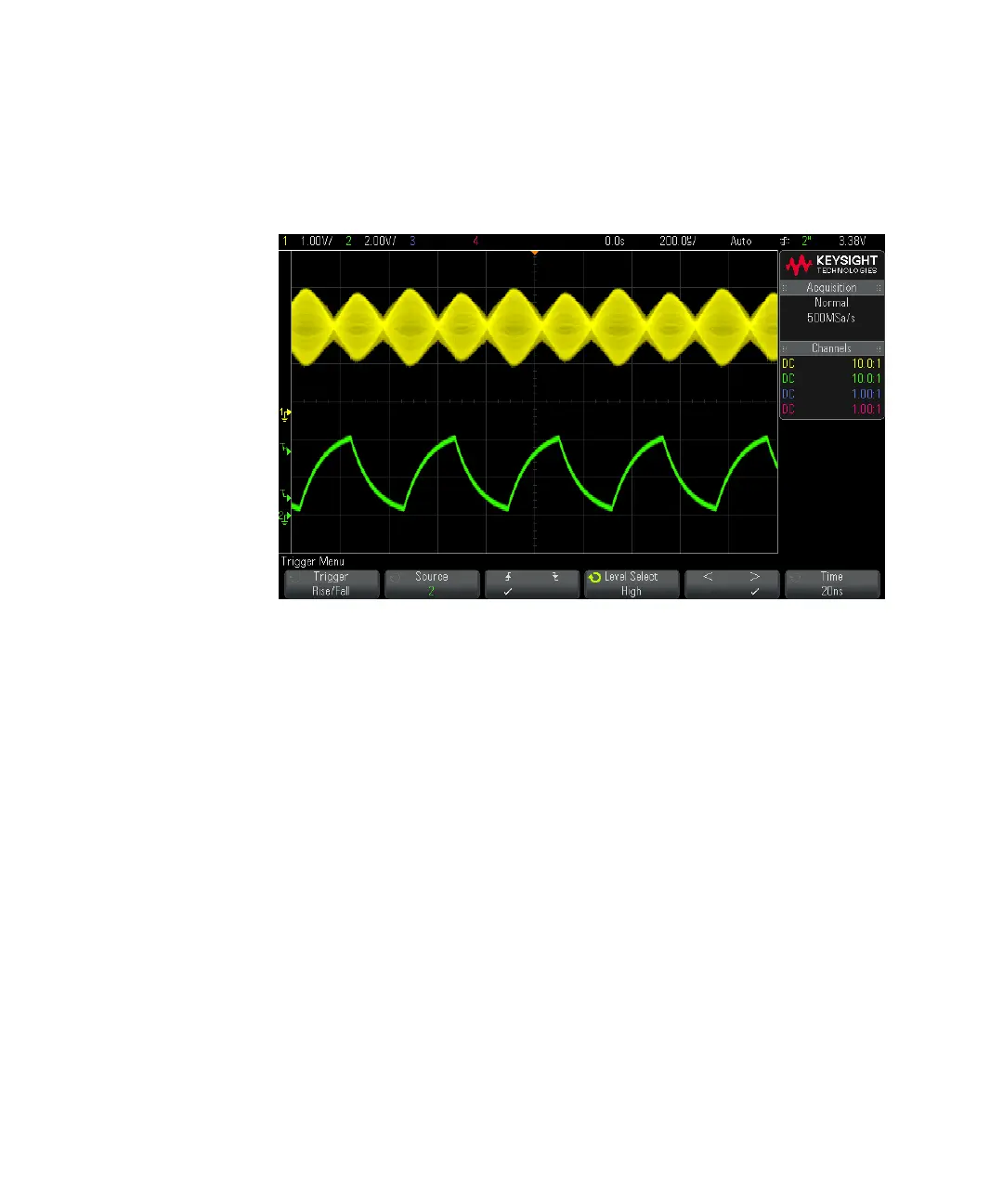

2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to
select Rise/Fall Time.
3 Press the Source softkey, and turn the Entry knob to select the input channel
source.
4 Press the Rising Edge or Falling Edge softkey to toggle between edge types.
5 Press the Level Select softkey to select High; then, turn the Trigger Level knob to
adjust the high level.
6 Press the Level Select softkey to select Low; then, turn the Trigger Level knob to
adjust the low level.
You can also push the Trigger Level knob to toggle between High and Low
selection.
7 Press the Qualifier softkey to toggle between "greater than" or "less than".
8 Press the Time softkey, and turn the Entry knob to select the time.
Nth Edge Burst Trigger
The Nth Edge Burst trigger lets you trigger on the Nth edge of a burst that occurs
after an idle time.
