214 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide
14 Measurements

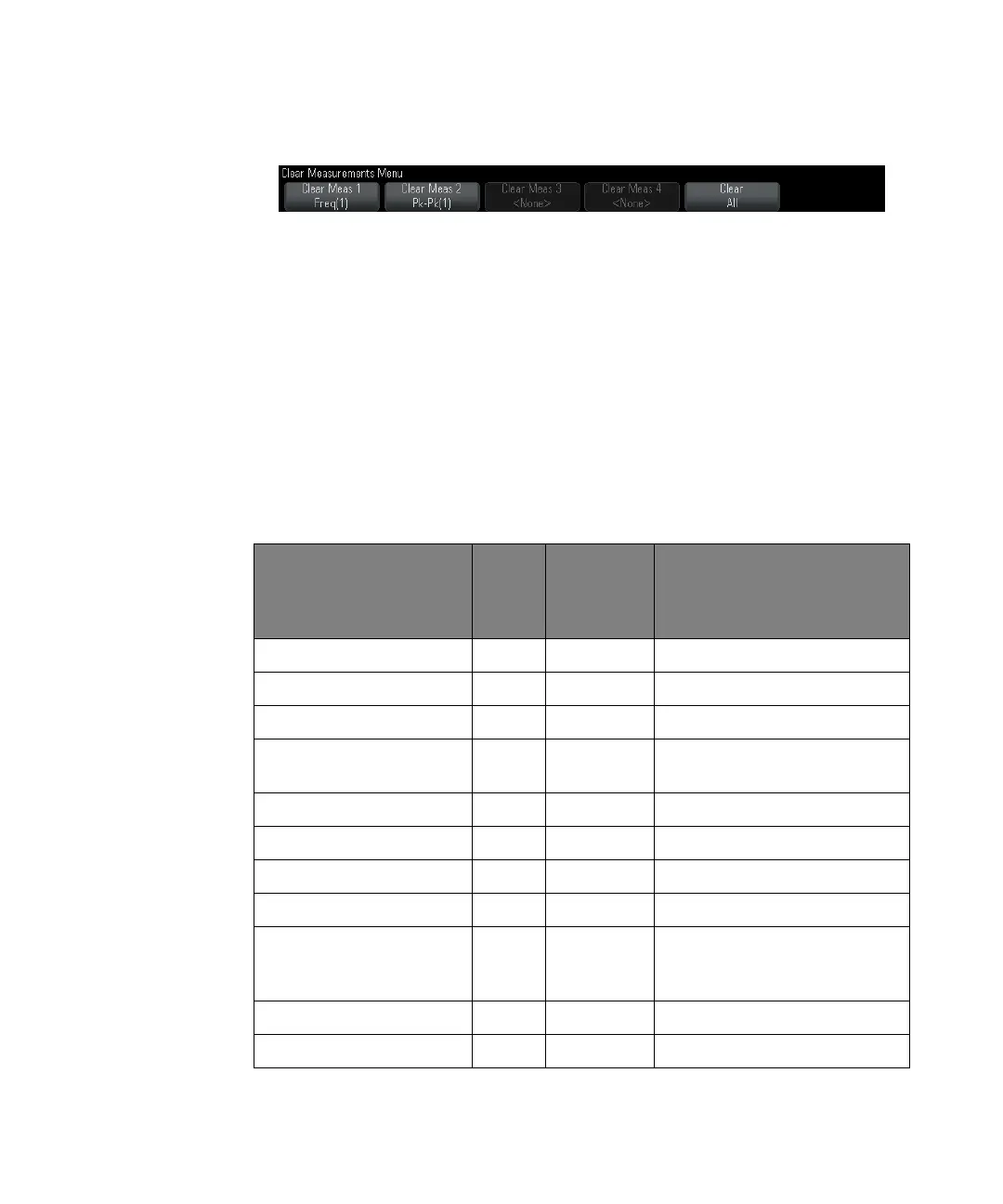

After all measurements have been cleared, when [Meas] is pressed again, the
default measurements will be Frequency and Peak-Peak.
Measurements Summary
The automatic measurements provided by the oscilloscope are listed in the
following table. All measurements are available for analog channel waveforms. All
measurements except Counter are available for reference waveforms and math
waveforms other than FFT. A limited set of measurements is available for math FFT
waveforms and for digital channel waveforms (as described in the following table).
Measurement Valid
for
Math
FFT
*
Valid for
Digital
Channels
Notes
"Snapshot All" on page 217
"Amplitude" on page 219
"Area" on page 234
"Average" on page 222 Yes, Full
Screen
"Base" on page 220
"Bit Rate" on page 228 Yes
"Burst Width" on page 228
"Counter" on page 227 Yes Not valid for math waveforms.
"Delay" on page 229 Measures between two sources.
Press Settings to specify the second
source.
"Duty Cycle" on page 228 Yes
"Fall Time" on page 229
