318 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide
21 Web Interface
Recalling Files via the Web Interface
To recall setup files, reference waveform data files, or mask files from your PC via
the oscilloscope's web interface:
1 Access the oscilloscope's web interface (see "Accessing the Web Interface" on
page 312).
2 When the oscilloscope's web interface is displayed, select the Save/Recall tab
from the left side of the Welcome screen.
3 Click the Recall link.

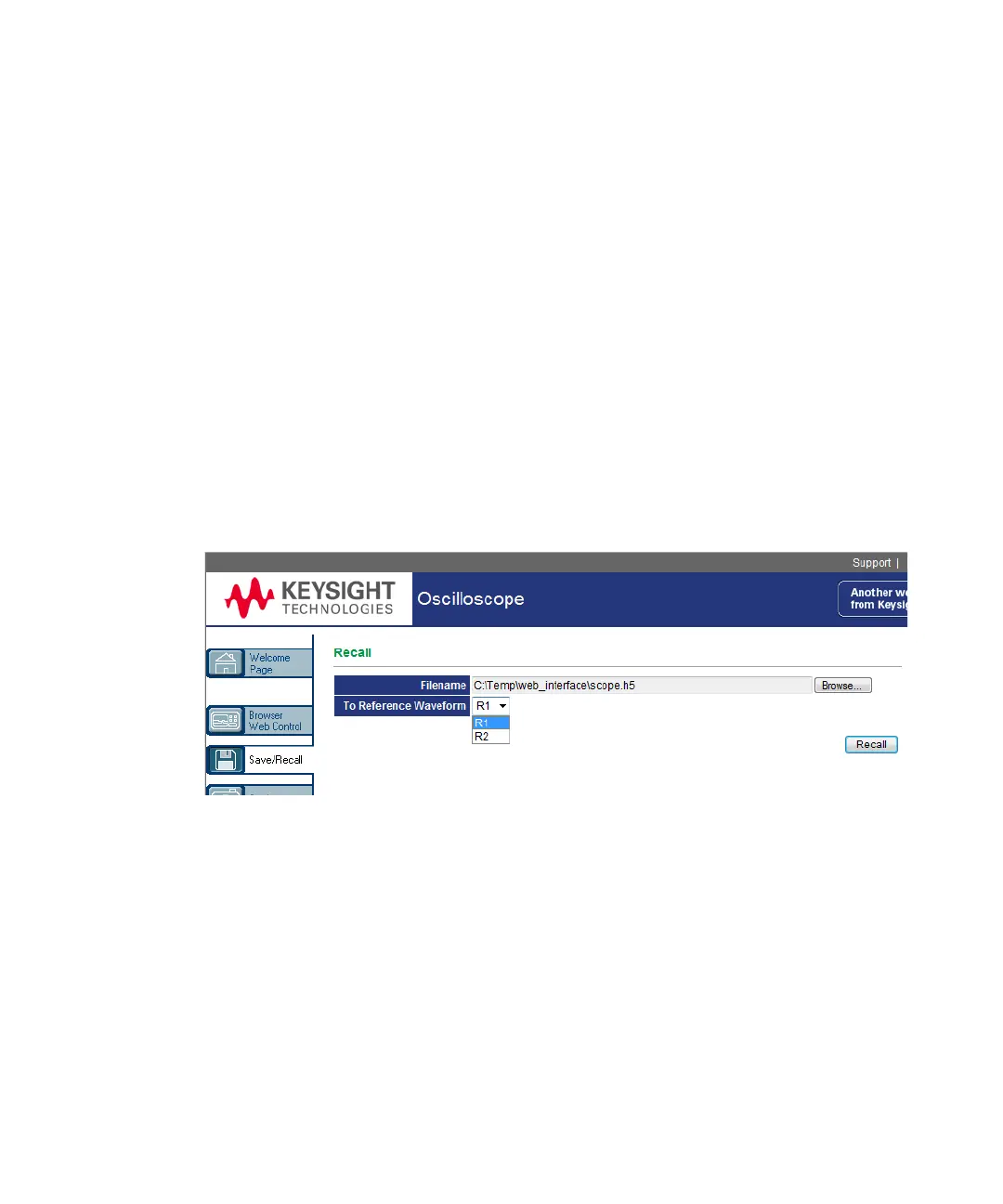

4 On the Recall page:
a Click Browse....
b In the "Choose file" dialog, select the file you want to recall; then, click Open.
c When recalling reference waveform data files, select the To Reference
Waveform location.
d Click Recall.
Get Image
To save (or print) the oscilloscope's display from the web interface:
1 Access the oscilloscope's web interface (see "Accessing the Web Interface" on
page 312).
