Adding an Annotation
You can add an annotation to the upper left corner of the oscilloscope's display.
The annotation is useful for documentation purposes, to add notes before
capturing screens.
To add an annotation:
1 On the oscilloscope's front panel, press [Utility].
2 In the Utility Menu, press Annotation.
3 In the Annotation Menu, press Annotation to enable the annotation.
4 Press Edit.

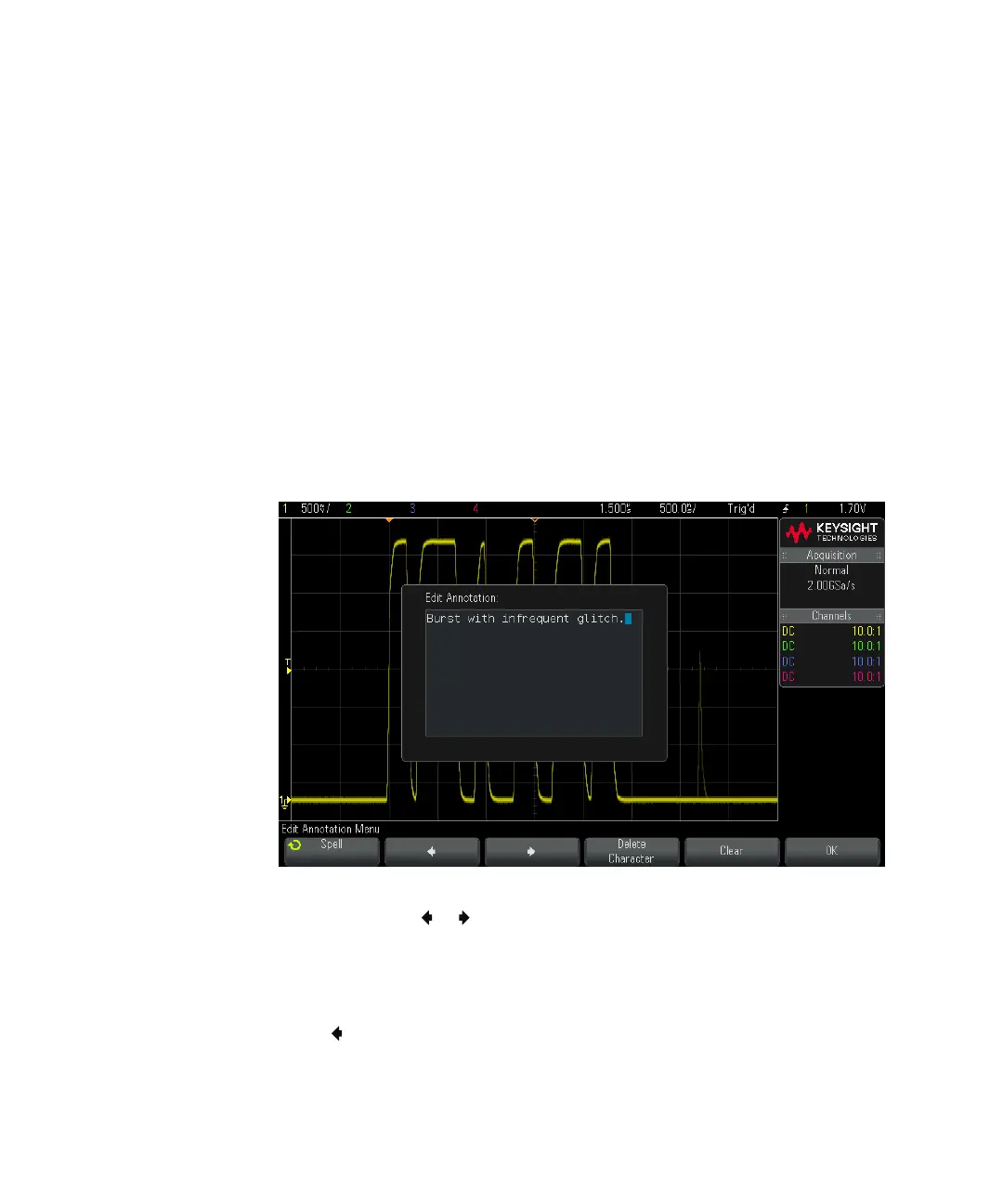

5 In the Edit Annotation Menu:
• Use the Spell, , , and Delete Character softkeys to enter the annotation
text:
• Spell — press this softkey and turn the Entry knob to select the character
at the current position.
• — press this softkey to enter characters and move the cursor to the
next character position.
To Next Page
