Triggers 10

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 157

Runt Trigger

The Runt trigger looks for pulses that cross one threshold but not another.

• A positive runt pulse crosses through a lower threshold but not an upper

threshold.

• A negative runt pulse crosses through an upper threshold but not a lower

threshold.

To trigger on runt pulses:

1 Press the [Trigger] key.

2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob to

select Runt.

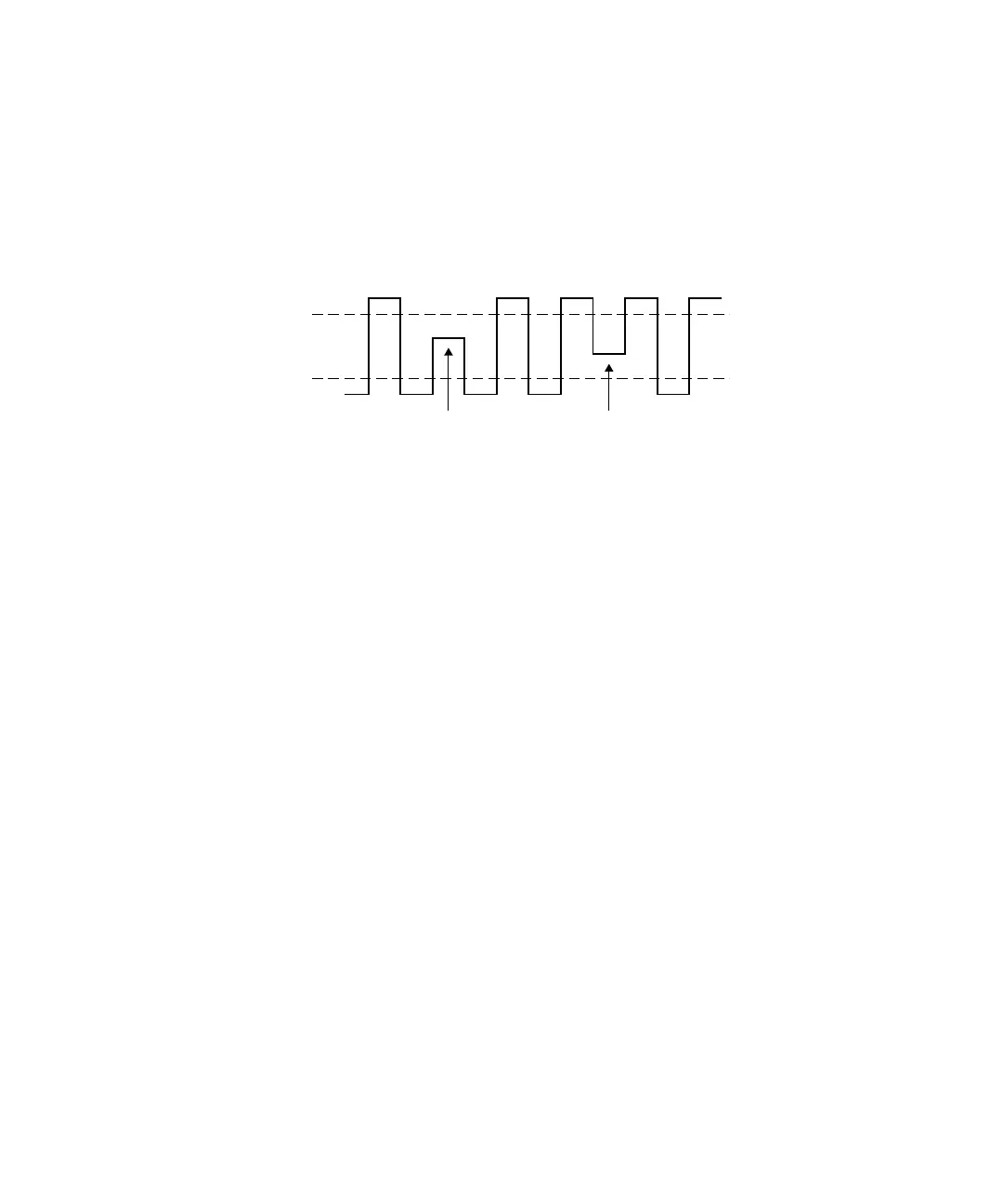

High level

Low level

Positive runt pulse Negative runt pulse
