4 Math Waveforms
Magnify
The magnify math function (available with the advanced math measurements
license) lets you display an existing input source at different vertical settings to
provide more vertical detail.
See Also • "Ax + B" on page 90
Measurement Trend
The measurement trend math function (available with the advanced math
measurements license) shows measurement values for a waveform (based on
measurement threshold settings) as the waveform progresses across the screen.
For every cycle, a measurement is made, and the value is displayed on the screen
for the cycle.

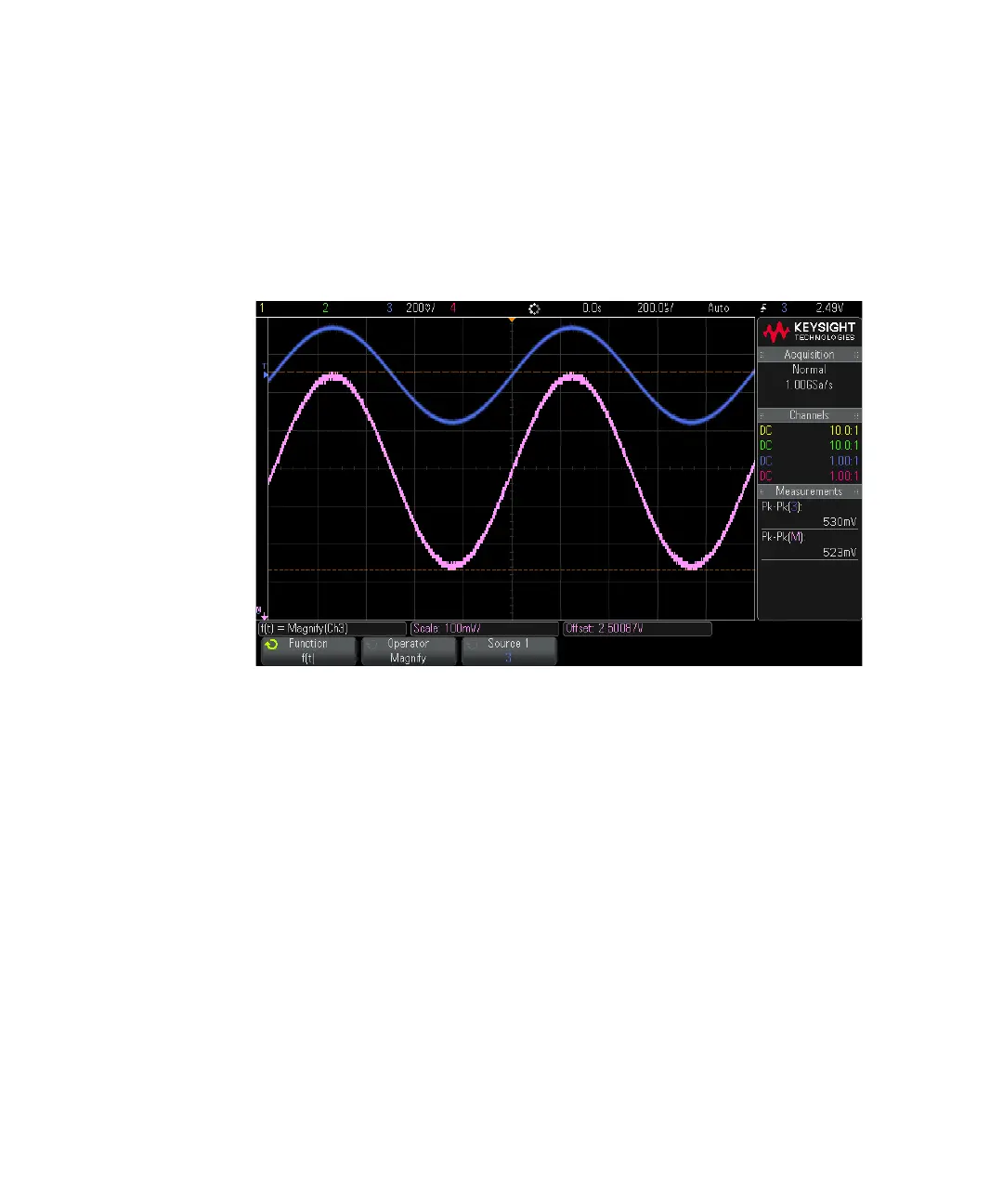

Figure 16 Example of Magnify
