Math Waveforms 4

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 97

Use the Type: softkey to select the measurement whose trend you want to look at.

You can display trend values for these measurements:

•Average

•RMS - AC

•Ratio

• Period

•Frequency

•+Width

•-Width

• Duty Cycle

•Rise Time

•Fall Time

Use the Thresholds softkey to access the Measurement Threshold Menu. See

"Measurement Thresholds" on page 234.

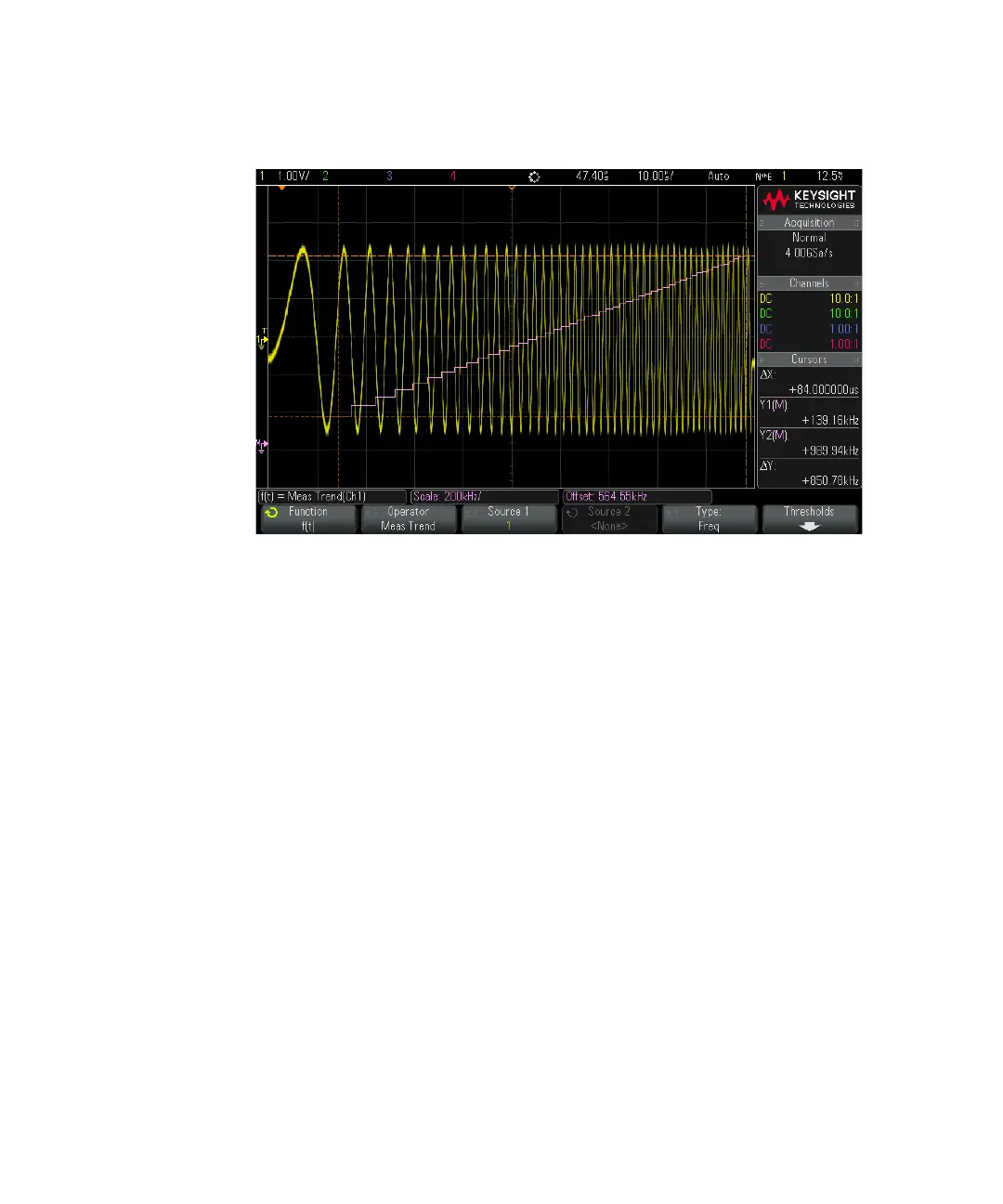

Figure 17 Example of Measurement Trend

Default Chapter4
- Infiniivision 3000 X-Series Oscilloscopes-At a Glance4
- In this Guide6
- Table of Contents9
1 Getting Started25
- Inspect the Package Contents25
- Install the Optional LAN/VGA or GPIB Module28
- Tilt the Oscilloscope for Easy Viewing28
- Power-On the Oscilloscope29
- Connect Probes to the Oscilloscope30
  - Maximum Input Voltage at Analog Inputs31
  - Do Not Float the Oscilloscope Chassis31
- Input a Waveform31
- Recall the Default Oscilloscope Setup32
- Use Auto Scale32
- Compensate Passive Probes34
- Learn the Front Panel Controls and Connectors35
  - Front Panel Overlays for Different Languages41
- Learn the Rear Panel Connectors43
- Learn the Oscilloscope Display45
- Access the Built-In Quick Help46
2 Horizontal Controls50
- To Adjust the Horizontal (Time/DIV) Scale50
- To Adjust the Horizontal Delay (Position)51
- Panning and Zooming Single or Stopped Acquisitions52
- To Change the Horizontal Time Mode (Normal, XY, or Roll)52
  - XY Time Mode53
- To Display the Zoomed Time Base56
- To Change the Horizontal Scale Knob's Coarse/Fine Adjustment Setting57
- To Position the Time Reference (Left, Center, Right)58
- Searching for Events58
  - To Set up Searches59
  - To Copy Search Setups59
- Navigating the Time Base60
3 Vertical Controls64
- To Turn Waveforms on or off (Channel or Math)64
- To Adjust the Vertical Scale65
- To Adjust the Vertical Position65
- To Specify Channel Coupling65
- To Specify Channel Input Impedance66
- To Specify Bandwidth Limiting67
- To Change the Vertical Scale Knob's Coarse/Fine Adjustment Setting67
- To Invert a Waveform68
- Setting Analog Channel Probe Options68
4 Math Waveforms73
- To Display Math Waveforms73
- To Perform Transforms or Filters on an Arithmetic Operation75
- To Adjust the Math Waveform Scale and Offset75
- Units for Math Waveforms75
- Math Operators76
  - Add or Subtract76
  - Multiply or Divide77
- Math Transforms78
- Math Filters94
  - High Pass and Low Pass Filter94
- Math Visualizations95
5 Reference Waveforms101
- To Save a Waveform to a Reference Waveform Location101
- To Display a Reference Waveform102
- To Scale and Position Reference Waveforms103
- To Adjust Reference Waveform Skew103
- To Display Reference Waveform Information104
- To Save/Recall Reference Waveform Files To/From a USB Storage Device104
6 Digital Channels105
- To Connect the Digital Probes to the Device under Test105
  - Probe Cable for Digital Channels106
- Acquiring Waveforms Using the Digital Channels109
- To Display Digital Channels Using Autoscale109
- Interpreting the Digital Waveform Display110
- To Change the Displayed Size of the Digital Channels111
- To Switch a Single Channel on or off112
- To Switch All Digital Channels on or off112
- To Switch Groups of Channels on or off112
- To Change the Logic Threshold for Digital Channels112
- To Reposition a Digital Channel113
- To Display Digital Channels as a Bus114
- Digital Channel Signal Fidelity: Probe Impedance and Grounding117
- 7 Serial Decode123
- 8 Display Settings130
- 9 Labels135
10 Triggers141
- Adjusting the Trigger Level142
- Forcing a Trigger143
- Edge Trigger144
- Edge then Edge Trigger146
- Pulse Width Trigger147
- Pattern Trigger150
  - Hex Bus Pattern Trigger152
- OR Trigger153
- Rise/Fall Time Trigger154
- Nth Edge Burst Trigger155
- Runt Trigger157
- Setup and Hold Trigger159
- Video Trigger160
- USB Trigger172
- Serial Trigger174
11 Trigger Mode/Coupling175
- To Select the Auto or Normal Trigger Mode176
- To Select the Trigger Coupling177
- To Enable or Disable Trigger HF Reject179
- To Enable or Disable Trigger Noise Rejection179
- External Trigger Input180
  - Maximum Voltage at Oscilloscope External Trigger Input181
- To Set the Trigger Holdoff180
12 Acquisition Control183
- Running, Stopping, and Making Single Acquisitions183
  - Control184
- Overview of Sampling184
- Selecting the Acquisition Mode189
- Acquiring to Segmented Memory195
- To Make Cursor Measurements202
- Cursor Examples205
- To Make Automatic Measurements212
- Measurements Summary214
  - Snapshot All217
- Voltage Measurements218
- Time Measurements225
- Count Measurements232
- Measurement Thresholds234
- Mixed Measurements234
  - Area234
- Measurement Statistics236
- Measurement Window with Zoom Display236
15 Mask Testing239
- To Create a Mask from a "Golden" Waveform (Automask)239
- Mask Test Setup Options241
- Mask Statistics244
- To Manually Modify a Mask File245
- Building a Mask File248
  - How Is Mask Testing Done251
16 Digital Voltmeter253
- To Select Generated Waveform Types and Settings257
17 Waveform Generator258
- Waveform Generator259
- To Edit Arbitrary Waveforms261
- To Output the Waveform Generator Sync Pulse265
- To Specify the Expected Output Load266
- To Use Waveform Generator Logic Presets266
- To Add Modulation to the Waveform Generator Output267
- To Add Noise to the Waveform Generator Output267
- To Restore Waveform Generator Defaults272
18 Save/Recall (Setups, Screens, Data)273
- Saving Setups, Screen Images, or Data273
- Recalling Setups, Masks, or Data281
- Recalling Default Setups283
- Performing a Secure Erase284
19 Print (Screens)285
- To Print the Oscilloscope's Display285
- To Set up Network Printer Connections286
- To Specify the Palette Option288
- To Specify the Print Options288
- I/O Interface Settings291
- Setting up the Oscilloscope's LAN Connection292
20 Utility Settings292
- File Explorer295
- Setting Oscilloscope Preferences297
- Setting the Oscilloscope's Clock300
- Setting the Rear Panel TRIG out Source300
- Performing Service Tasks301
- Configuring the [Quick Action] Key307
- Adding an Annotation308
- Accessing the Web Interface312
21 Web Interface312
- Browser Web Control313
- Save/Recall316
  - Saving Files Via the Web Interface316
  - Recalling Files Via the Web Interface318
- Get Image318
- Identification Function319
- Instrument Utilities320
- Setting a Password321
22 Reference325
- Measurement Category325
- Specifications and Characteristics325
- Environmental Conditions327
- Loading Licenses and Displaying License Information328
- Probes and Accessories328
- Binary Data (.Bin) Format331
- Software and Firmware Updates331
- CSV and ASCII XY Files338
  - CSV and ASCII XY File Structure339
  - Minimum and Maximum Values in CSV Files339
- Acknowledgements340
- Product Markings and Regulatory Information342
23 CAN/LIN Triggering and Serial Decode345
- Setup for CAN Signals345
- CAN Triggering347
- CAN Serial Decode349
- Setup for LIN Signals353
- LIN Triggering355
- LIN Serial Decode356
24 Flexray Triggering and Serial Decode361
- Setup for Flexray Signals361
- Flexray Triggering362
- Flexray Serial Decode365
25 I2C/SPI Triggering and Serial Decode371
- Setup for I2C Signals371
- I2C Triggering372
- I2C Serial Decode376
- Setup for SPI Signals379
- SPI Triggering383
- SPI Serial Decode385
26 I2S Triggering and Serial Decode389
- Setup for I2S Signals389
- I2S Triggering392
- I2S Serial Decode395
- Setup for MIL-STD-1553 Signals / 399399
- MIL-STD-1553 Triggering401
27 MIL-STD-1553/ARINC 429 Triggering and Serial Decode401
- MIL-STD-1553 Serial Decode402
- Setup for ARINC 429 Signals406
- ARINC 429 Triggering407
- ARINC 429 Serial Decode409
- Setup for UART/RS232 Signals415
28 UART/RS232 Triggering and Serial Decode415
- UART/RS232 Triggering417
- UART/RS232 Serial Decode419
