Acquisition Control 12

Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide 191

Glitch or Narrow Pulse Capture

A glitch is a rapid change in the waveform that is usually narrow as compared to

the waveform. Peak detect mode can be used to more easily view glitches or

narrow pulses. In peak detect mode, narrow glitches and sharp edges are

displayed more brightly than when in Normal acquire mode, making them easier

to see.

To characterize the glitch, use the cursors or the automatic measurement

capabilities of the oscilloscope.

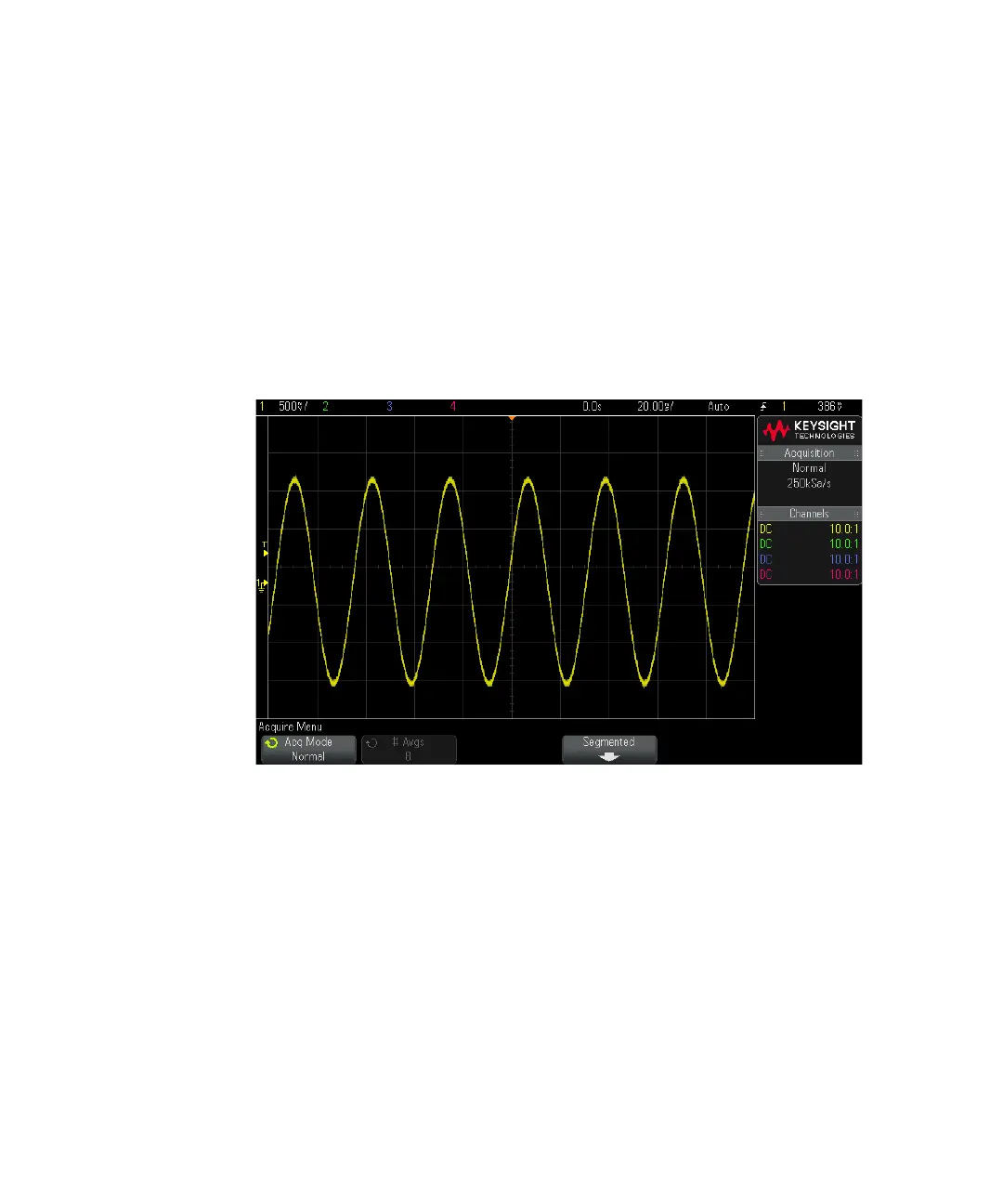

Figure 36 Sine With Glitch, Normal Mode
