206 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

13 Cursors

Expand the display with Zoom mode, then characterize the event of interest with

the cursors.

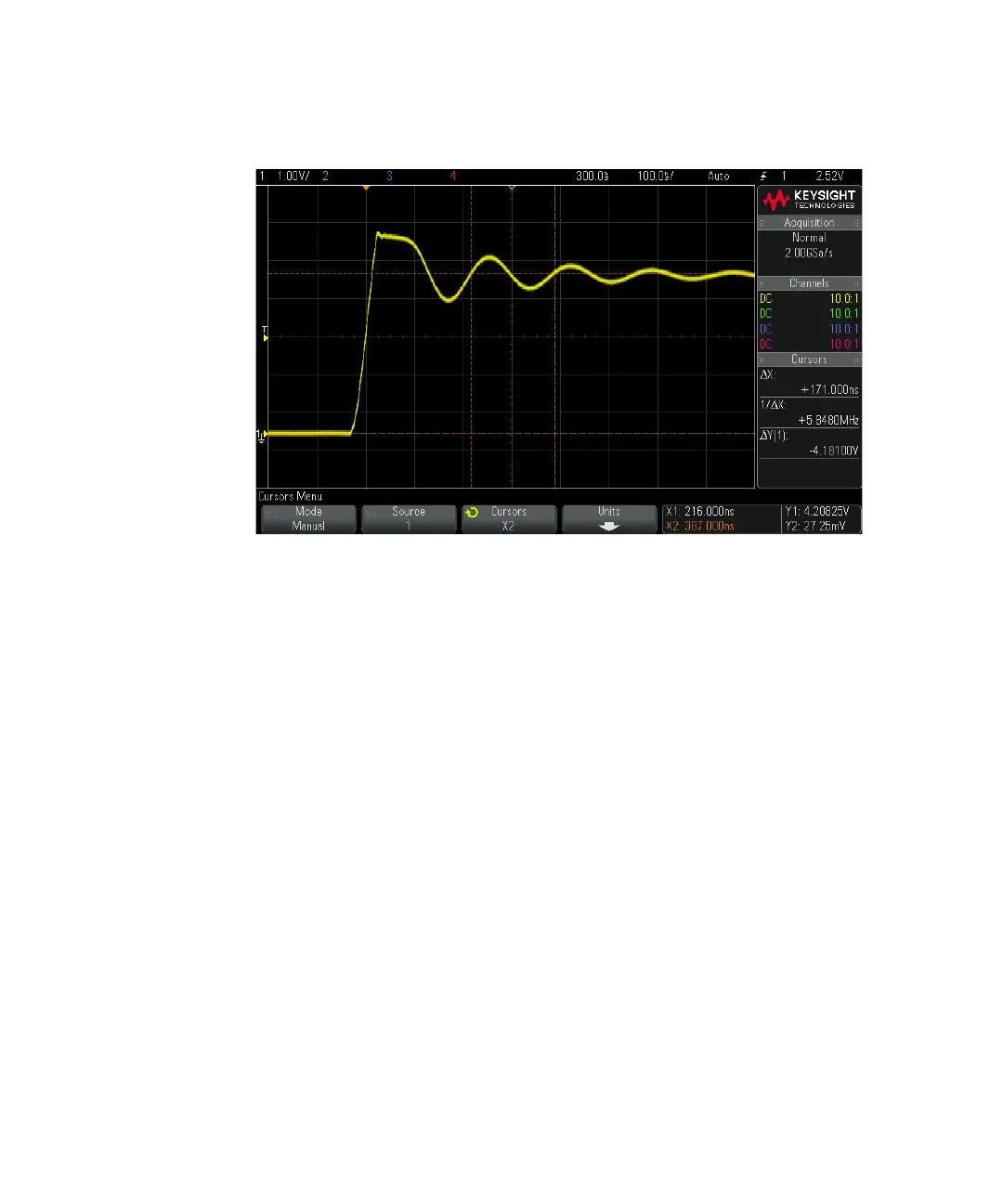

Figure 41 Cursors measure frequency of pulse ringing
