42 Keysight InfiniiVision 3000 X-Series Oscilloscopes User's Guide

1 Getting Started

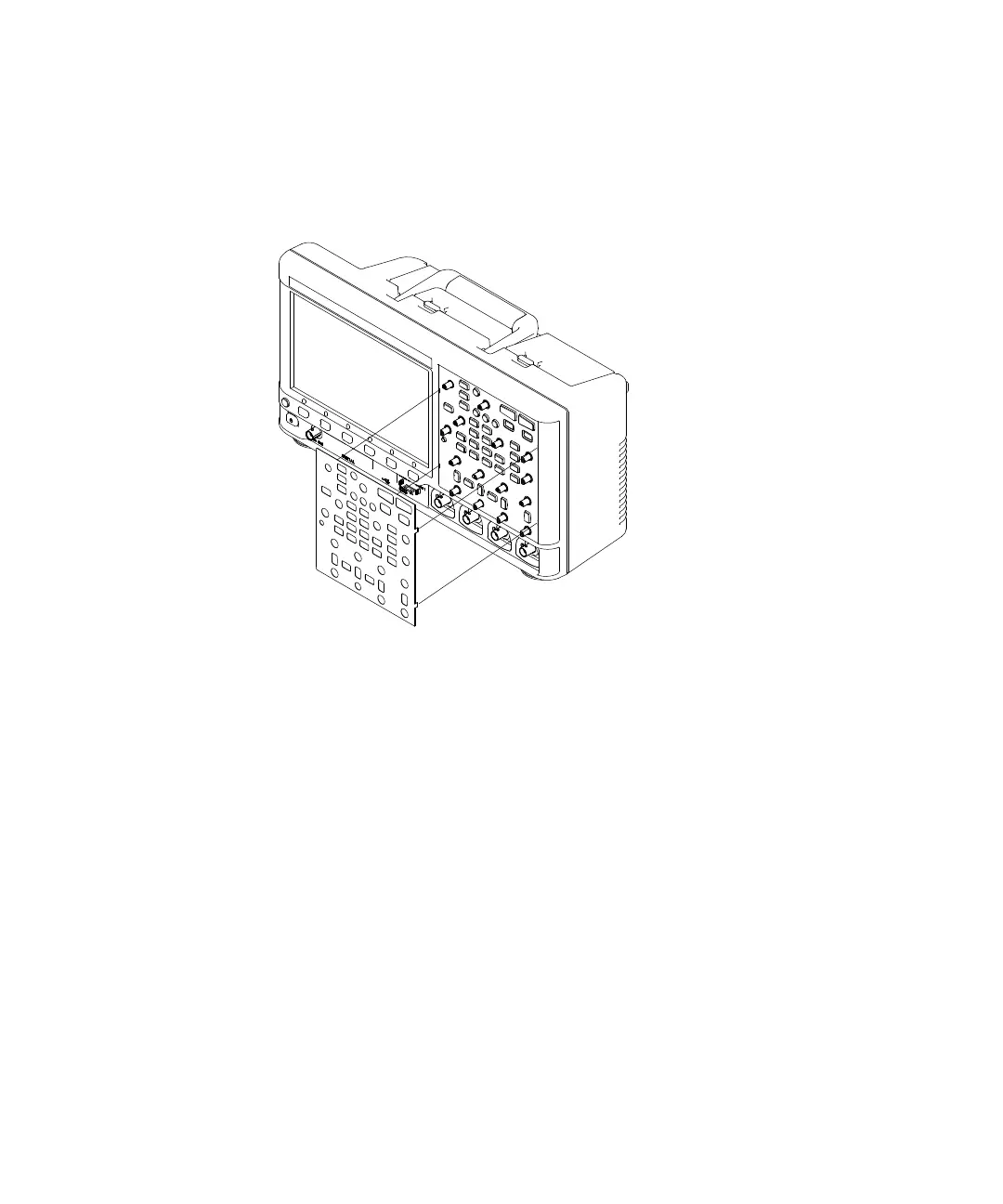

1 Gently pull on the front panel knobs to remove them.

2 Insert the overlay's side tabs into the slots on the front panel.

3 Reinstall the front panel knobs.

Front panel overlays may be ordered from www.keysight.com/find/parts using the

following part numbers:
