Central-Station Operation
August 2013 F-2 P/N 06-236530-001
THIS PAGE INTENTIONALLY LEFT BLANK.

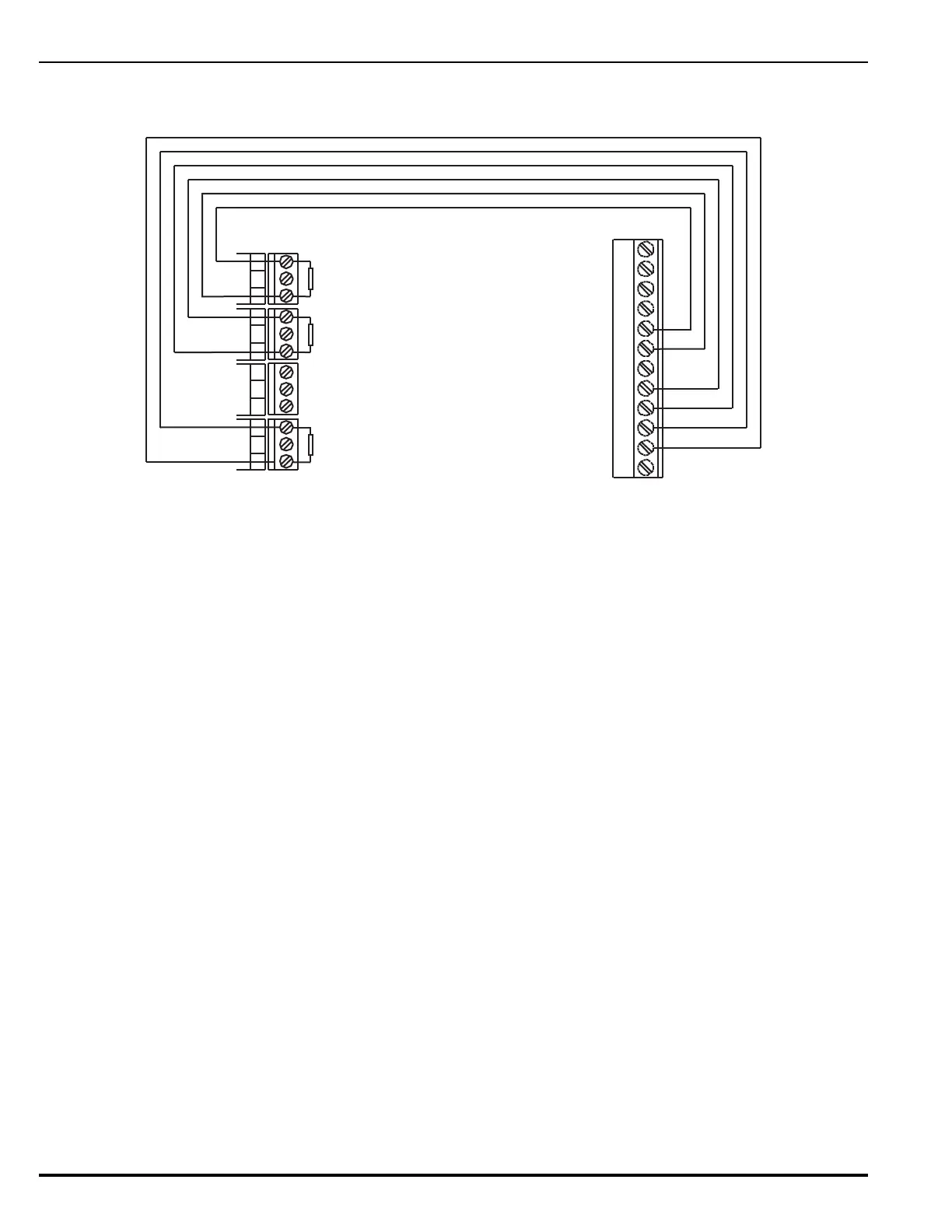

Figure F-2 shows the interconnection between the ARIES Control Unit and the Silent Knight
Model 5104 DACT as a specific example.
Figure F-2. ARIES and Silent Knight Model 5104 DACT Interconnections
4567891011
12
12 3
Trouble
Relay 3
Relay 1
(Programmed for General Alarm)
Relay 2
(Programmed for Supervisory Service)
CNCNO
CNCNO
CNCNOCNCNO
4.7k
4.7k
4.7k
ARIES Relays
Silent Knight 5104 DACT
Initiating Device Circuits
Note:
Model AO Addressable Relays may be substituted for
control-unit relays.
