The vertical angle of the steering
wheel can be adjusted as desired.
Pull up the tilt lever, adjust the steer-
ing wheel position and push down
the tilt lever to x the wheel.
STEERING WHEEL ADJUSTMENT
The differential lock is to secure the
differential system and keep the wheel
rotation on both sides the same in order
to enhance the traction of the rear axle.
Depressing the pedal engages the
differential lock while releasing the
pedal disengages the differential
lock. Use this system under the fol-
lowing conditions:
1. When any wheel slips and the
tractor does not move in the eld.
2. When it is hard to escape a soft or
muddy eld.
DIFFERENTIAL LOCK PEDAL
(1) Differential Lock Pedal
(A) Release To Disengage (B) Lock
CAUTION
Never adjust the steering wheel
position during driving. Other-
wise, A personal injury can oc-
cur.
•
CAUTION
The differential lock should be
engaged only while the driving
clutch is engaged. If the differ-
ential lock pedal does not move
when depressing it, try to de-
press it again after releasing it.
When engaging the differential
lock, reduce the engine speed.
After engaging it, accelerate
the tractor.
Make sure to set the steering
wheel in the straight ahead po-
sition while the differential lock
is in use. Otherwise, the differ-
ential system can be damaged.
•
•
•

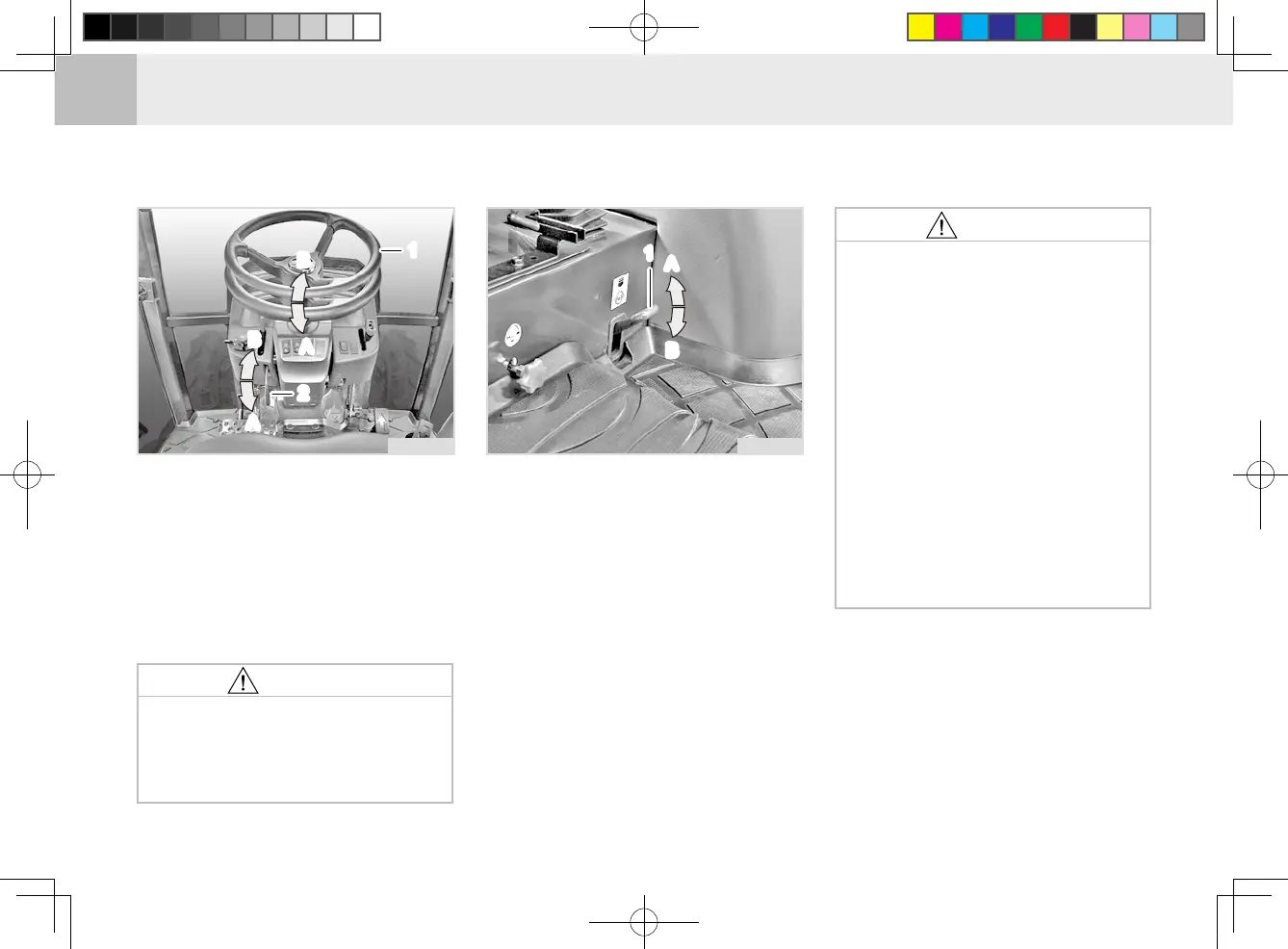

(1) Steering Wheel (2) Tilt Lever
(A) Down (B) Up
