INSTRUMENT CLUSTER
INSTRUMENT CLUSTER FEATURES

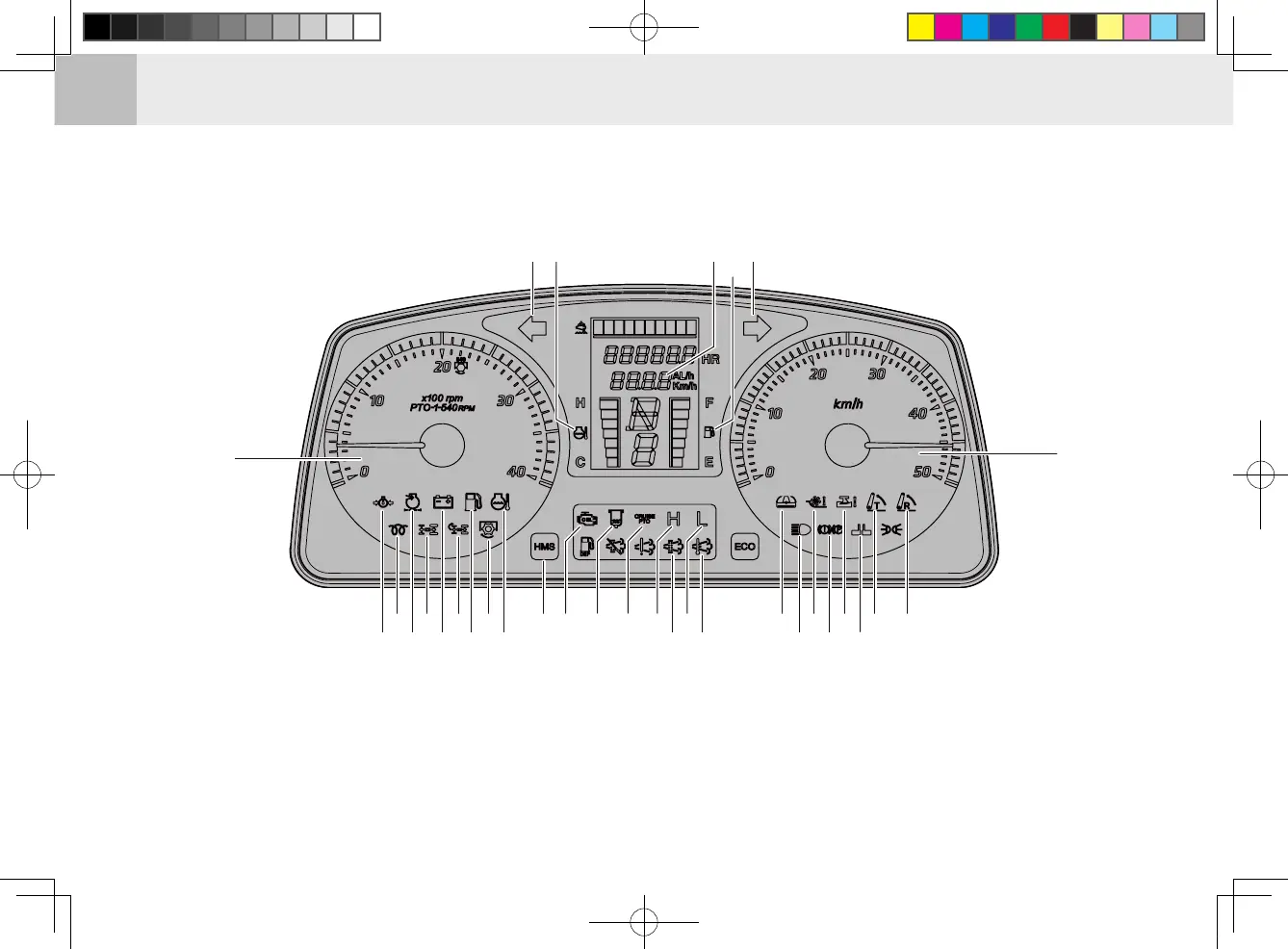

Symbols on the instrument panel come on when the key switch is turned to the “ON” position.
11 10 15 21 204 17 23 18 24
5 9 714
21
6
31
19 3230
25 26 27 28 29
13 12 3 16 8
22
TD2O401E
(1) Engine Oil Pressure Warning Lamp
(2) Battery Charge Warning Lamp
(3) High Beam Lamp
(4) Glow Plug Lamp
(5) Turn Signal Lamp (LH)
(6) Tachometer
(7) Turn Signal Lamp (RH)
(8) One Side Brake Lamp
(9) Coolant Temperature Gauge
(10) Water Sensor Warning Lamp
(11) Engine Check Lamp
(12) DPF Regeneration Underway Lamp
(13) DPF Regeneration Warning Lamp
(14) Hour Meter / Error Code
(15) Cruise PTO Lamp
(16) Parking Brake Lamp
(17) 4WD Operation Lamp
(18) PTO ON Lamp
(19) Low Fuel Level Warning Lamp
(20) Low Speed Lamp
(21) High Speed Lamp
(22) Fuel Gauge
(23) QT
(24) HMS
(25) Horizontal Auto
(26) Auto tilling depth
(27) Auto draft
(28) Turn up
(29) Back Up
(30) Air Filter Clogging Warning Lamp
(31) Speedometer
(32) Coolant Temperature Warning
Lamp
