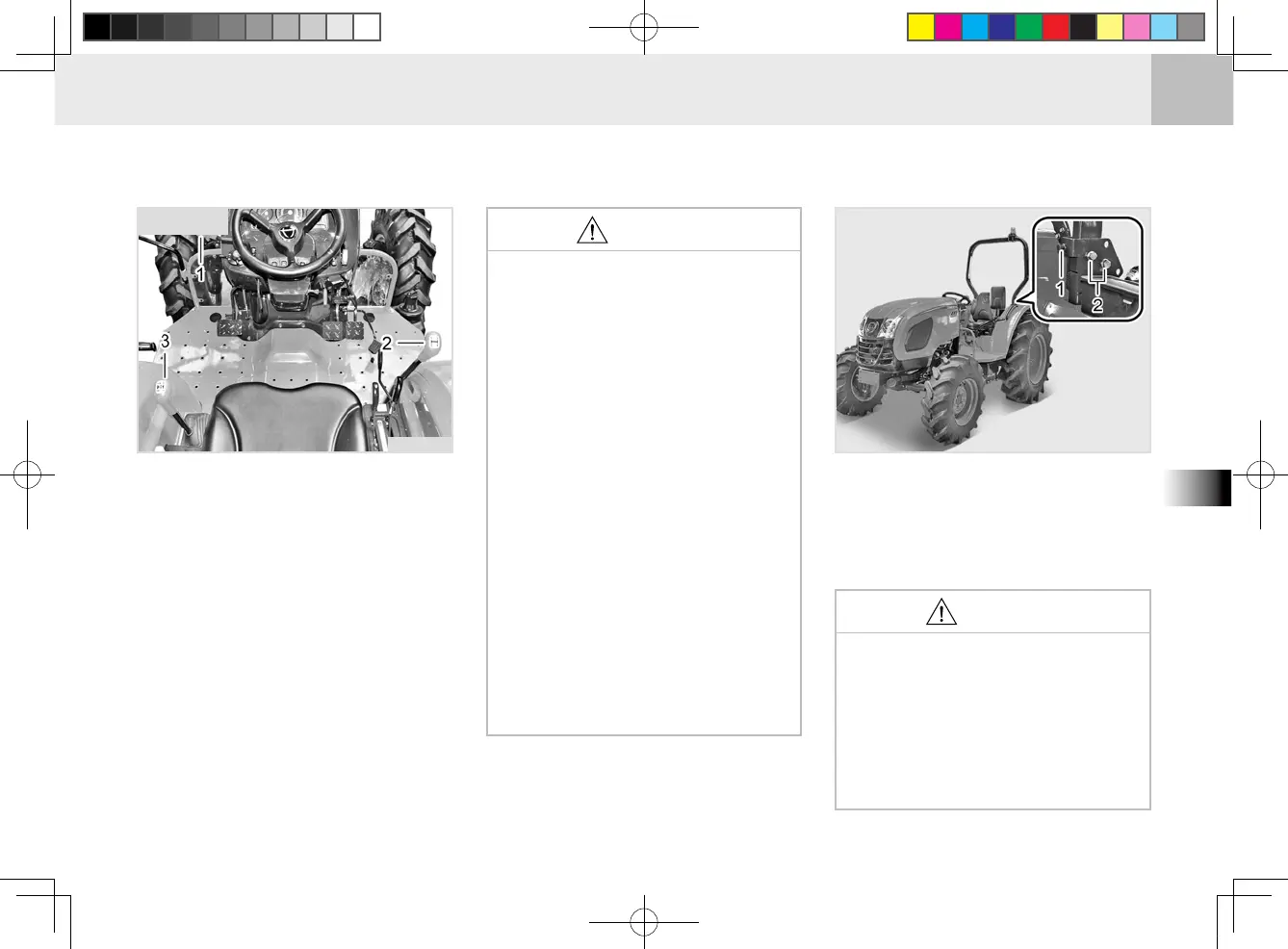

(1) Shuttle Shift Lever (2) Main Shift Lever
(3) Range Shift Lever
8. Change the main shift lever, range
shift lever and shuttle lever to the
position you want.
9. The tractor starts to move if you
release the clutch pedal slowly.
td2O511a
CAUTION
Never put your foot on the
clutch pedal during driving. The
clutch disc can be rapidly worn.
M a ke s u r e t o o p e r a t e t h e
clutch fast when disengaging
it and slowly when engaging it.
Do n ot c ha ng e th e trac to r
speed abruptly for safe driving.
When driving on a slope or
loading or unloading the trac-
tor to a transporting vehicle,
reduce the speed in advance
so that there is no need to
shift the gear in the middle
of the slope. Also, do not put
your hand on the shift lever
while driving on a slope. The
tra cto r may r oll dow n the
slope due to the disengaged
gear which is very dangerous.
•
•
•
•
MANUAL
(1) Knock Bolt (2) Mounting Bolt
1. Unscrew the knock bolt. Then,
loosen the mounting bolts.
HOW TO FOLD THE ROPS
td2O512a
CAUTION
You should always stop the
engine, remove the key and
set the parking brake before
raising or folding the ROPS.
Always perform such tasks
from a safe and stable posi-
tion at the rear of the tractor.
•
•
