The position control lever is used to
adjust the height of implements on
the 3-point hitch ends.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to “How
to drive” in Chapter 5.

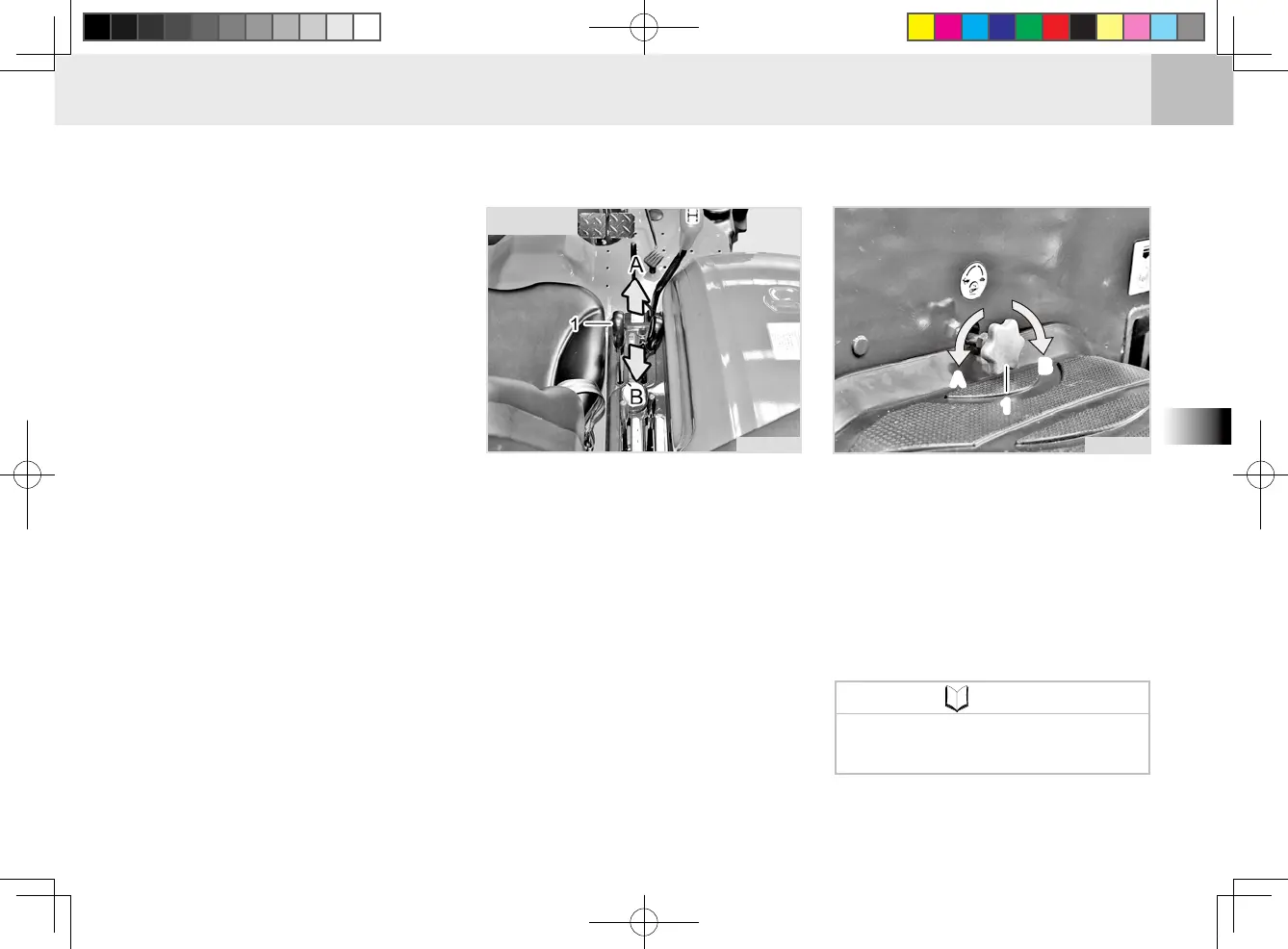

(1) Draft Control Lever
(A) Lowering (B) Lifting
DRAFT CONTROL LEVER
The draft function can be used for the plow
which is installed to the lower link. (Lifting arm)
If the plow is applied with excessive draft,
the lifting arm is automatically raised to
reduce the draft and then returned to its
original. This is called as “Draft Function”.
The plowing depth can be controlled by
the soil status by putting the draft control
lever into the “Deep” position to activate
the draft function at mid load and putting
the lever into the “Shallow” position to
activate the draft function at light load.
For detailed information, refer to “How
to drive” in Chapter 5.
TD2O453A
Turning the knob counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
NOTE
This knob does not control the
lifting speed of the lift arm.
•
