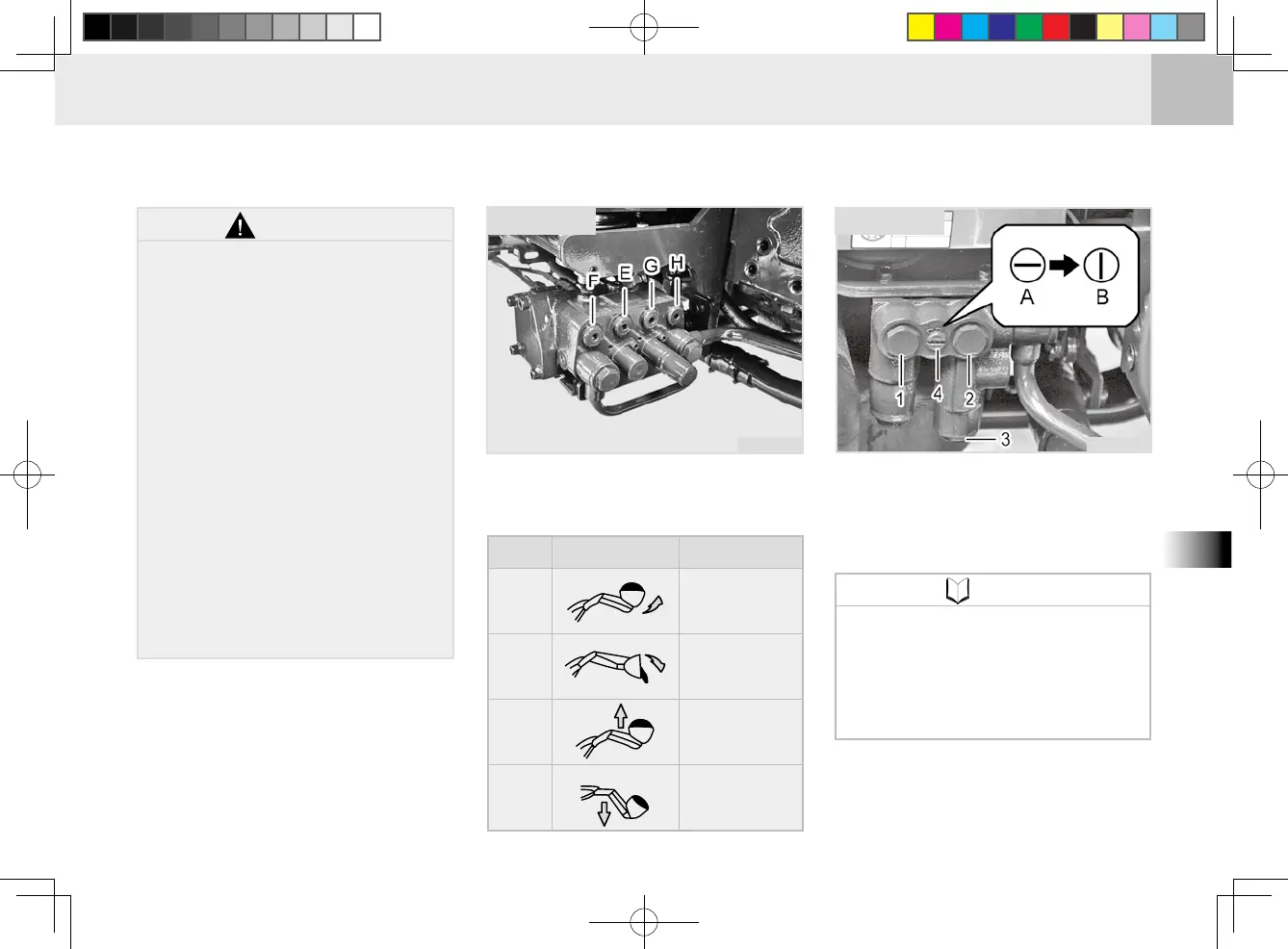

HYDRAULIC BLOCK
(1) In (From Implement`s Control Valve)
(2) Out (To Implement`s Control Valve)
(3) Return (From Implement’s Control Vlave)
(4) Flow Plug
(A) OFF (B) ON
td2O632C
NOTE
The hoses and couplers for instal-
lation are supplied with the loader.
For detail about implement instal
-
lation method, refer to KIOTI front
loader owner’s manual.
•
•
Pressurized diesel fuel or hy-
draulic fluid may be sprayed
on your skin or eyes, lead-
ing to a severe injury or even
death.
To for leaks, use a board and
wear protective gloves and
goggles.
If your eyes come into contact
with the hydraulic fluid, seek
medical attention immediately.
Never try to disconnect the
tube and quick coupler while
the tractor and implement are
in operation. Release the pres-
sure by operating the lever
after the engine is stopped.
•
•
•
•
WARNING
JOYSTICK VALVE PORT
(E) Bucket Up (F) Bucket Down
(G) Boom Up (H) Boom Down
PORT DIRECTION FUNCTION
E
Bucket
Up
F
Bucket
Down
G
Boom
Up
H
Boom
Down
D21O610A
