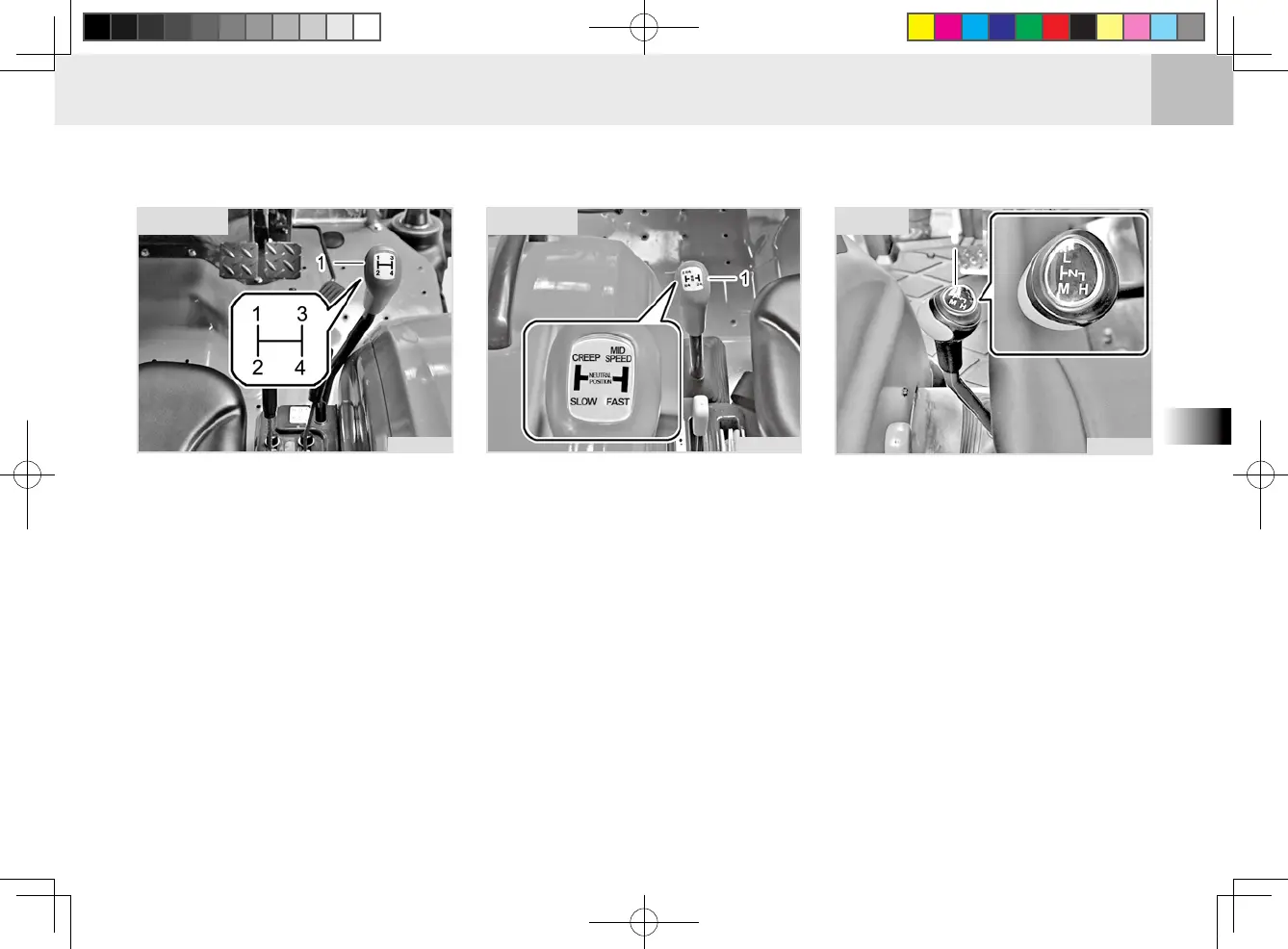

Four speeds can be selected by
moving this main shift lever in “H”
shaped path. As the gear is a syn-
chromesh type, shift operation is
possible with the clutch pedal de-
pressed during driving.
In total, 16 forward driving speeds
and 16 reverse driving speeds are
provided by combination of the main
shift lever (4 speeds), range shift le-
ver (4 speeds), shuttle shift lever.
(1) Range Shift Lever
High speed, mid speed, low speed
and creep speed can be selected
by the range shift lever. Make sure
to shift the range shift lever after the
tractor is completely stopped by de-
pressing the clutch pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position, engage and
disengage the clutch, and then try to
shift the lever.
RANGE SHIFT LEVER
TD2O438A TD2O439B
(1) Main Shift Lever
MAIN SHIFT LEVER
(1) Range Shift Lever
High speed, mid speed and low
speed can be selected by the range
shift lever. Make sure to shift the
range shift lever after the tractor is
completely stopped by depressing
the brake pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position and then try
to shift the lever.
D21O411A
MANUAL HSTMANUAL
