Kioti DK6010 - Wheel TORQUE and Direction

4
-
58 DK6010

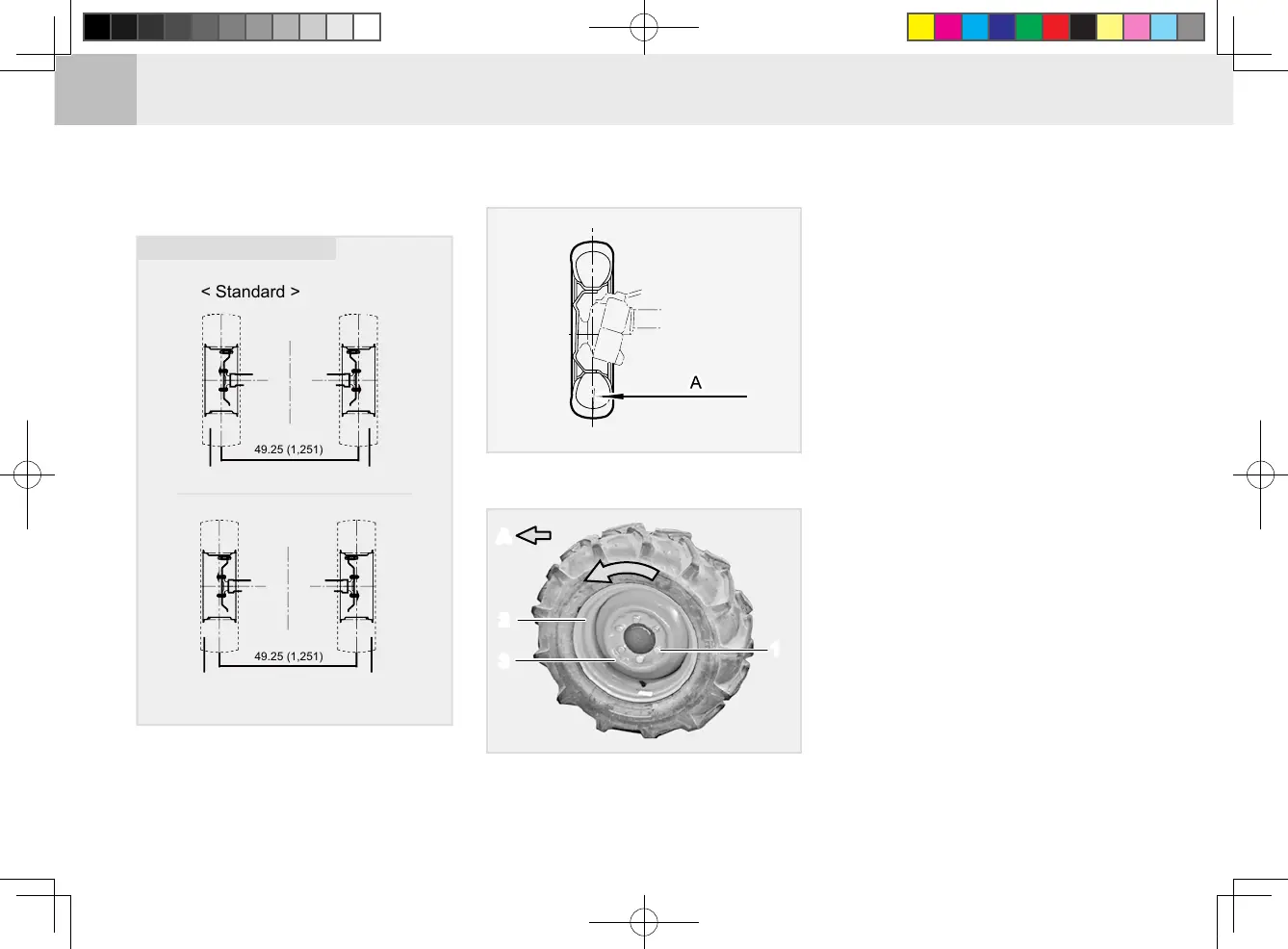

STANDARD TREAD DIMENSION
(REAR WHEEL)
< Standard >
49.25 (1,251)
49.25 (1,251)
D21O447A
13.6 - 24 (Agricultural)
in. (mm)
(A) Tread
Front tread can not be adjusted. If it
is necessary to adjust it, contact your
local KIOTI Dealer.
If it is damaged by unapproved modi-
cation, it will not be covered by war-
ranty.
WHEEL TORQUE AND DIRECTION
FRONT WHEEL INSTALLATION PATTERN
T85O535A
3
1
2
3
1
2
A
A
T85O535A
(1) Wheel bolt
(2) Rim (3) Disc
(A) Forward
WHEEL INSTALLATION DIRECTION
For agricultural tires, make sure to
install them with their arrow marks
on their side pointing the front driving
direction.
The tire is correctly installed if the
tread mark “V” on the ground is
shown correctly, not up side down,
while the tractor is moving forward.
