3. To drain the used fluid, place the
oil container under the transmis-
sion case and remove the drain
plug to drain used uid.
If the uid does not ow out freely,
unscrew the breather plug on the
side of the hydraulic cylinder on
the left of the top link bracket to
facilitate drainage. (Refer to next
page) Reinstall the drain plugs se-
curely afterward.
(1) Drain Plug
td2O712A
REPLACING TRANSMISSION FLUID AND FILTER (M)
If transmission uid is contaminated
or the transmission is repaired, trans-
mission fluid should be changed.
Make sure to replace its lter as well.
However, Replace the oil lter only at
every 200 hours of operation.
1. Park the tractor on a level ground
and start the engine to warm it up.
2. Stop the engine, apply the parking
brake and remove the drain plug.

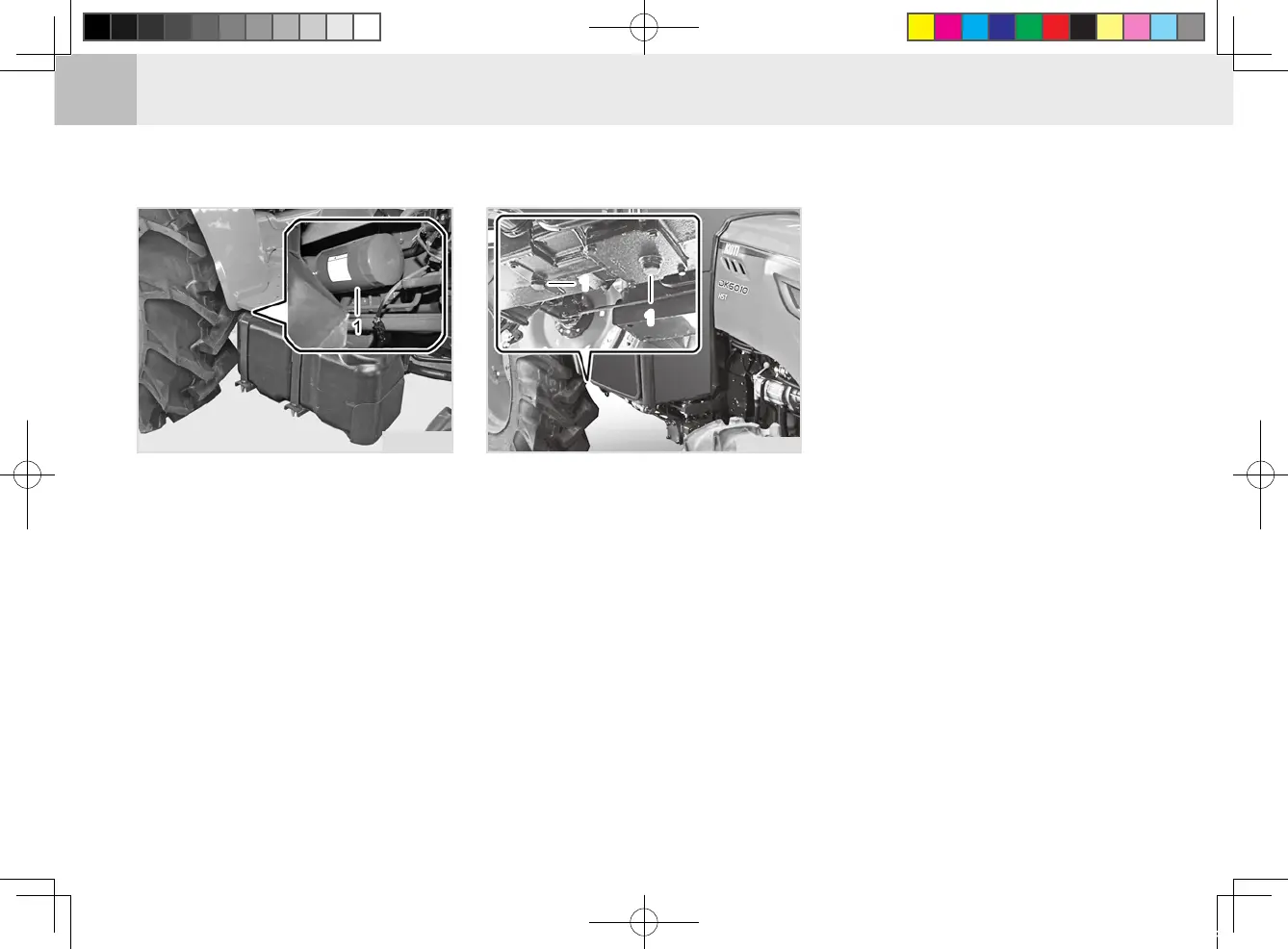

(1) Hydraulic Filter
4. Unscrew the fluid filter from the
rear right section on the tractor us-
ing a lter wrench.
