7. Up & Roll back
The boom can be lifted and the
bucket can scoop up at same time
by operating the joystick lever to
the rear left position (7 o’clock
position). However, these two op-
erations may not be performed
simultaneously due to unbalanced
hydraulic pressure in the hydraulic
circuit.
8. Up & Dump
The boom can be lifted and the
bucket can dump at same time by
operating the joystick lever to the
rear right position (5 o’clock posi-
tion). However, the operation time
may not be shortened much since
the bucket dumps first and then
the boom is lifted later due to the
unbalanced hydraulic pressure in
the hydraulic circuit.

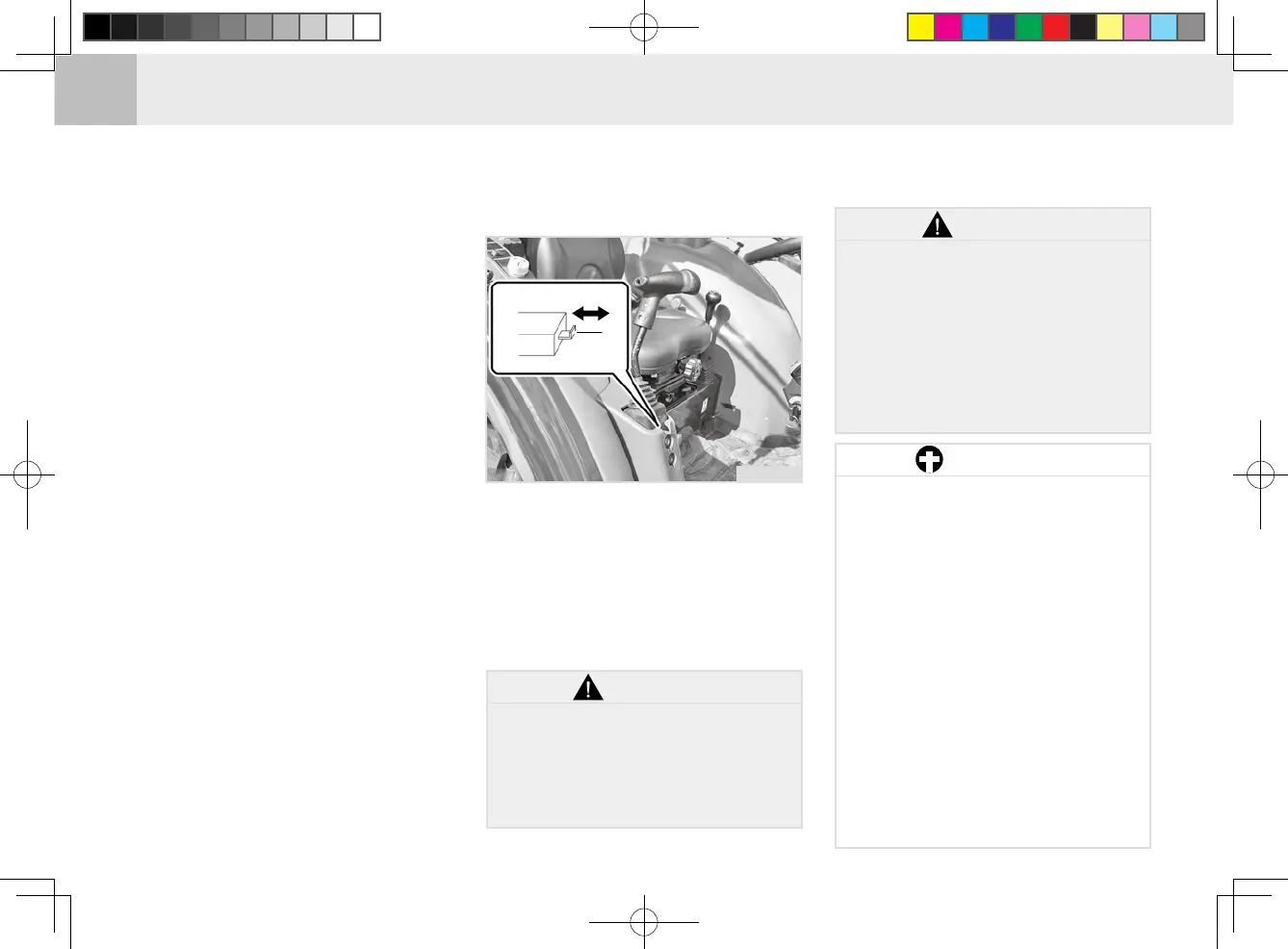

9. Locking / Unlocking joystick
Pressing the joystick lock lever in,
locks the joystick, while pulling it
outward, unlocks the joystick as
shown in the gure.
Make sure to lock the joystick
lever while moving. Otherwise,
its vibration can cause safety
problems, such as falling off of
the implement.
WARNING
(1) Joystick Lock Lever
(A) Lock (B) Unlock
Do not leave the tractor with
the boom off the ground in any
circumstances. If it is neces-
sary, lock the joystick.
When the joystick lever is not
in use, lock it since the imple-
ment can fall down if the lever
is operated accidently.
If the boom or bucket is not oper-
ating properly, lower the bucket
onto the ground, stop the engine
and move the joystick lever to
remove all hydraulic pressure in
the system. Then, check all the
hydraulic connections and recon-
nect them correctly.
Before connecting or disconnect-
ing the hydraulic hose coupling
from the loader, lower the boom
onto the ground, stop the en-
gine, and move the joystick lever
front and back, left and right for
several times to remove residual
pressure in the hydraulic hose.
IMPORTANT
WARNING
