DK6010
ECUHead Lamp
One Side
Brake
PTO
Stop Lamp
AUTO 4WD
Fuse
Puller
Beacon
(Option)
Start
Spare 25A
Spare 20A
Spare 15A
Flasher
15A
10A
ECU(B+) 20A
10A
4WD/QT
3rd function
20A
valve(Option)
10A
20A
15A
5A
10A
Horn
Combimeter
5A
ECU
ECU(Relay)
(Sensor)
Fuel Heater
3Pin Socket
(Option)
Stop
Lamp
Working
Lamp
Lamp
Head/Tail
Combimeter
ECU(On)
PTO
Alternator
Safety unit
15A
4WD/QT
25A
Beacon(Option)
Rear Glass
Defogger
10A
Stereo
5A
(Option)
Room lamp
Stereo Backup
25A
Air
15A
Conditioner
Wiper
Washer
Power
Socket
10A
Start 5A
Flasher
DK6010C
D21O726A
h11O655A

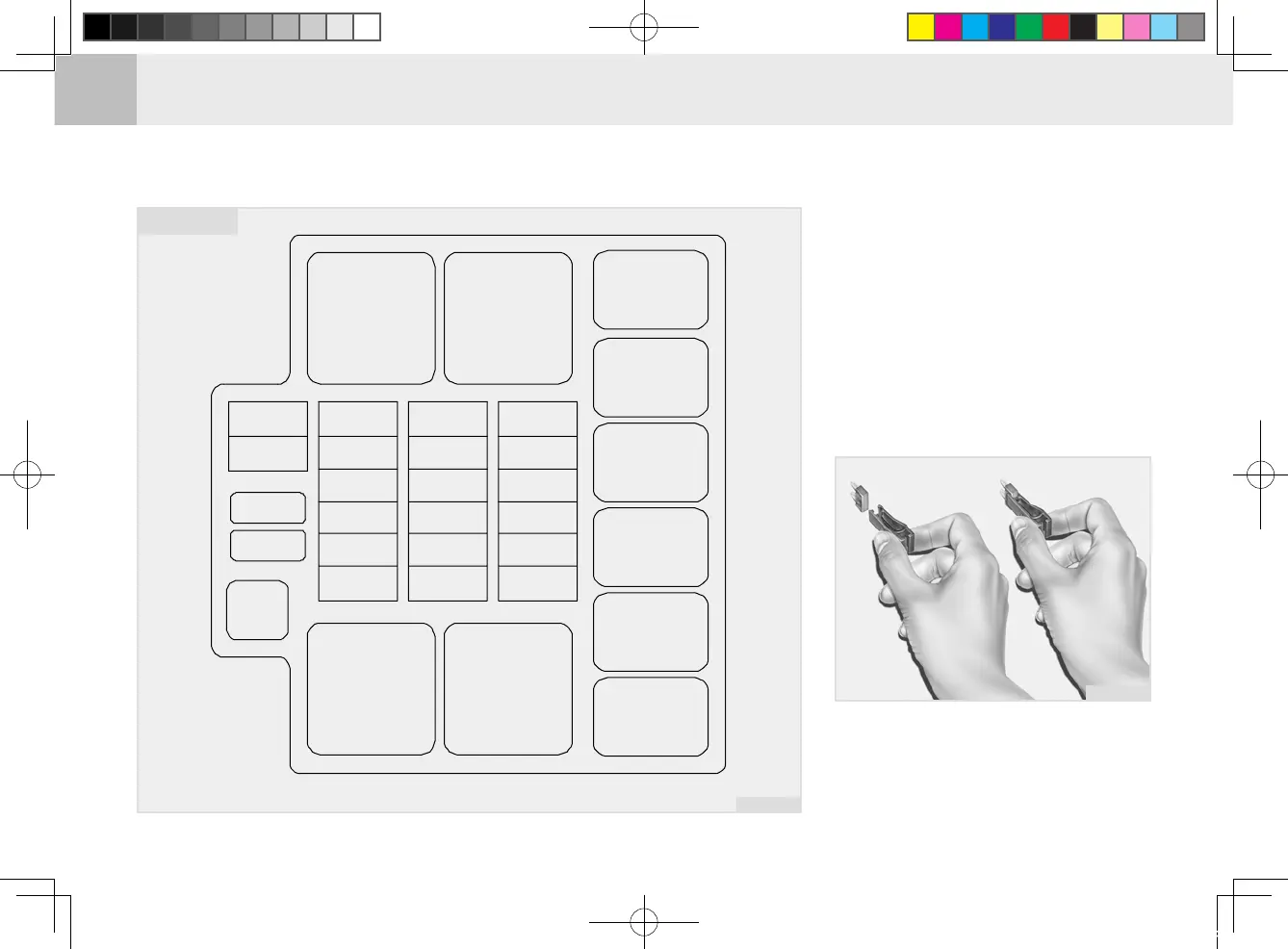

There are marks for the fuse capac-
ity and location on the cover of the
fuse panel. Replace the fuse accord-
ing to the following procedure:
1. Turn the key switch to the “OFF”
position and turn off all the electri-
cal devices.
2. Open the fuse box cover and
check the fuse in question using
fuse tongs.
3. If the fuse is blown, replace it with
a new fuse with same capacity.
Make sure it is rmly installed.
4. Install the fuse box cover.
