td2O742A
3.

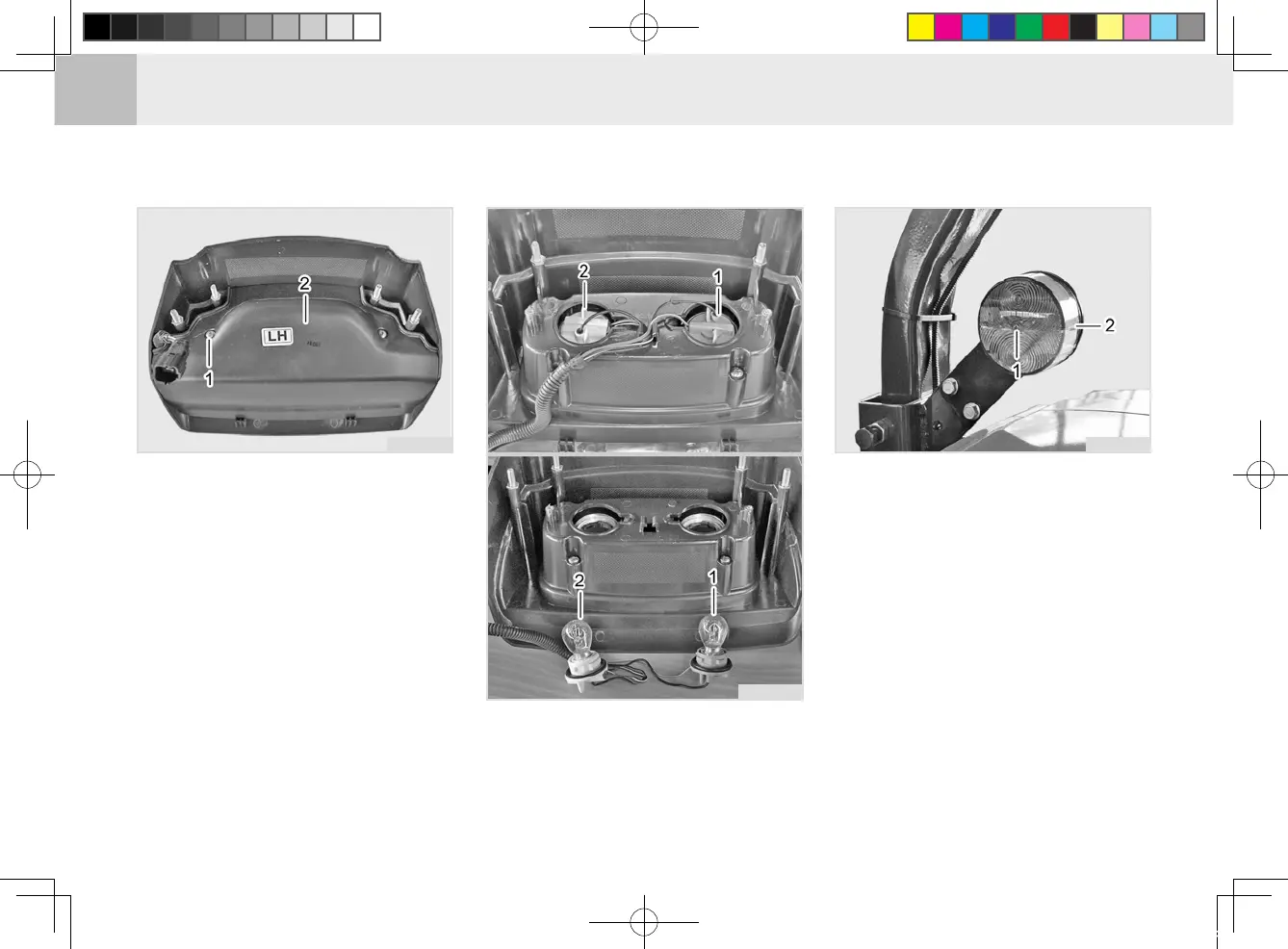

Loosen the screw to remove the cover.
(1) Screw (2) Cover
td2O743A
(1) Turn Signal Lamp (2) Position Lamp
4. Turn the socket counterclockwise
to remove the bulb and replace it
with a new one.
FRONT TURN SIGNAL LAMP AND
POSITION LAMP
1. The front turn signal lamps are in
-
stalled onto the ROPS frame.
2.
Loosen the screw to remove the lens.
td2O744A
(1) Screw (2) Lens
To Next Page
