KOB PYROT - Page 12

54,17 mm6,68 mm
5,30 mm
70,02 mm
4,52 mm
K
A B C E F G
H
263
220
b
a
330
D
A
Sensor well for TS
B
Boiler return
C
Return temperature sensor
D
Safety heat exchanger
E
High limit safety cut-out (STB)
F
Boiler water temperature sensor
G
Boiler flow
H
Safety heat exchanger
K
Ash removal, combustion block

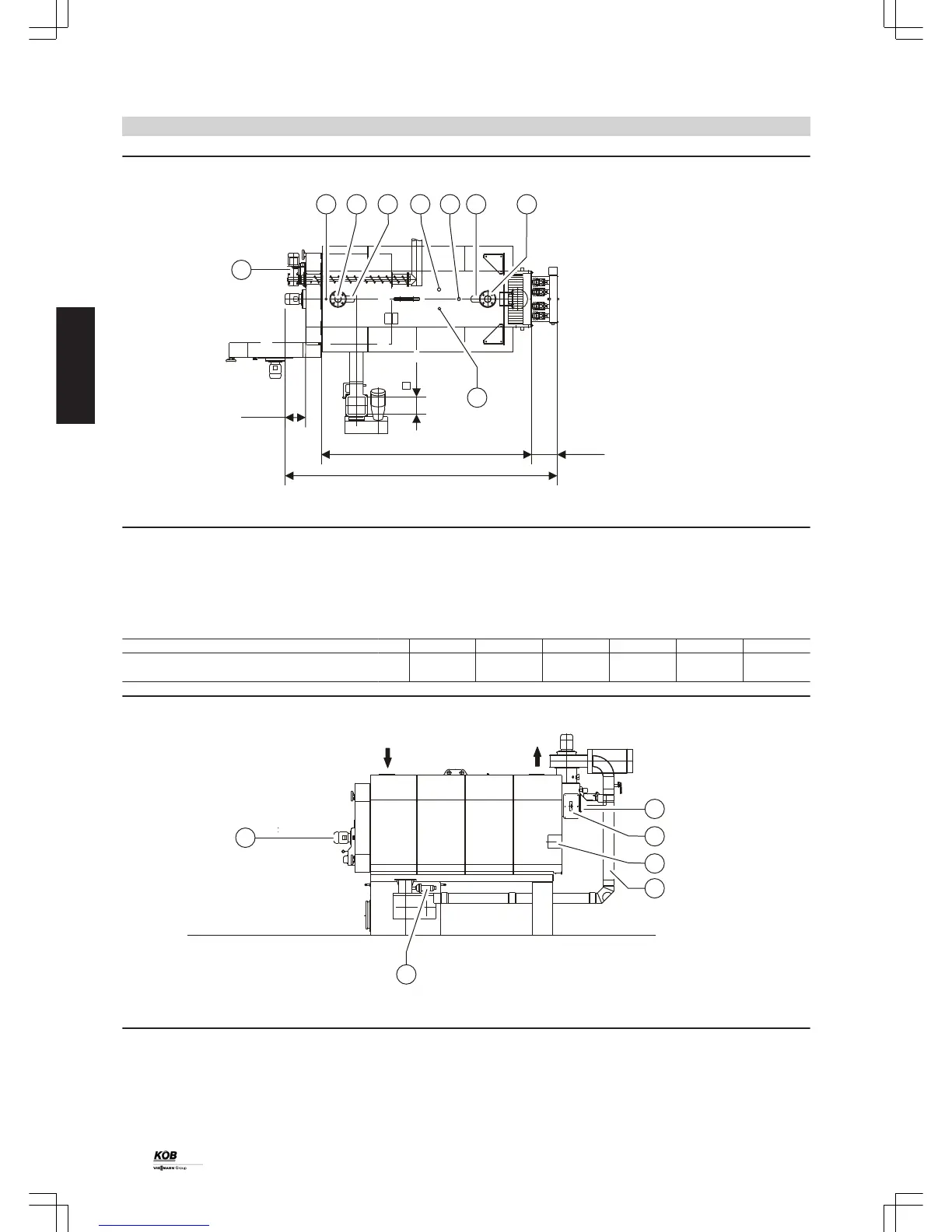

Dimensions
Rated output kW 100 150 220 300 400 540
a mm 2785 3035 3059 3415 3457 3685
b mm 2000 2250 2274 2630 2614 2842
KR
KV
F
A
E
D
C
B
A
Pneumatic cleaning
B
Cleaning cover, flue gas collector
C
Flange for burner trolley; standard version: Cover with sight
glass
D
Recirculation gas line, line routing variable
E
Ignition unit
F
Rotary fan
KV Boiler flow
KR Boiler return
PYROT rotation combustion
(cont.)
12
PYROT
2
5822 516 GB
