KOB PYROT - Page 11

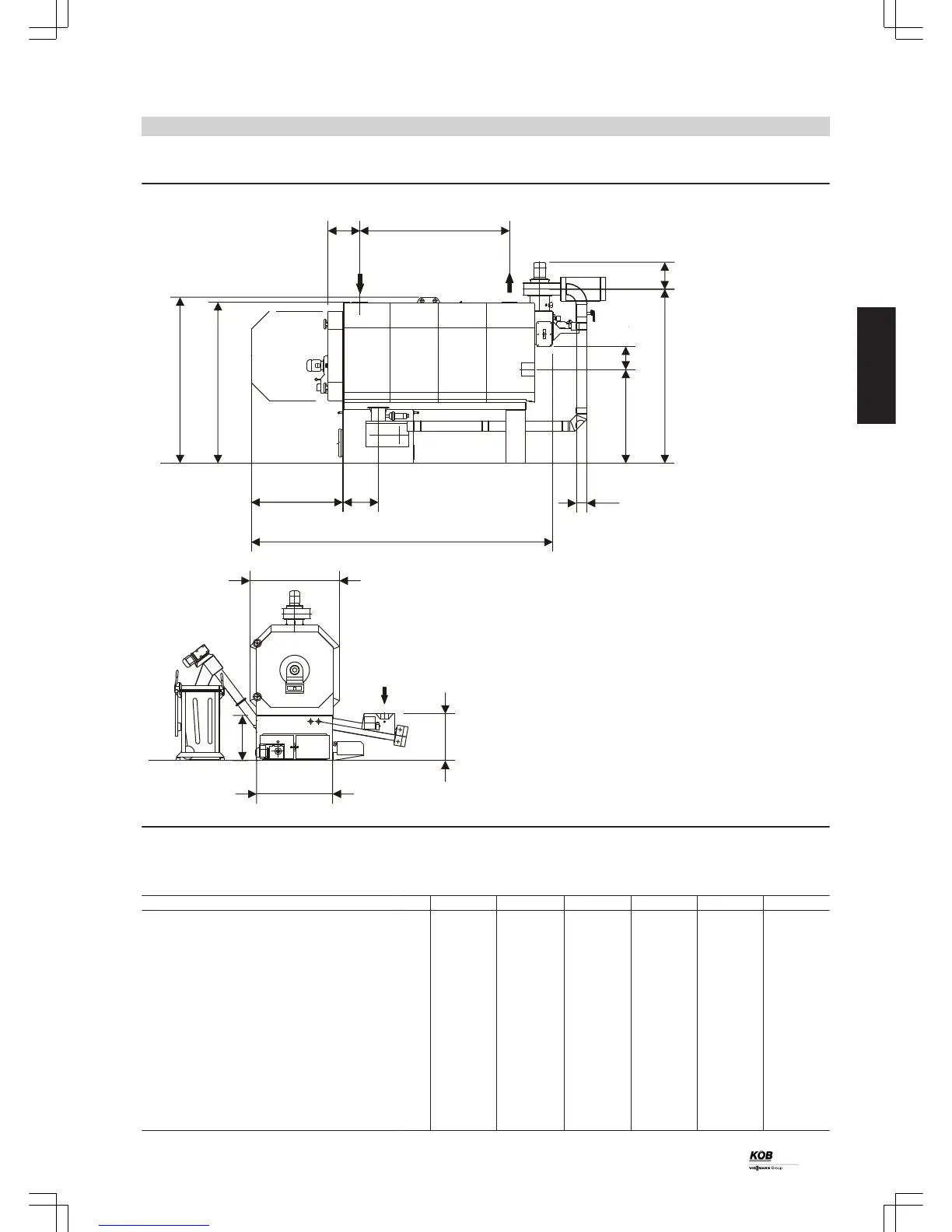

Dimensions
44.84 mm
7.01 mm
9.04 mm23.53 mm
77.57 mm
42.74 mm
24.11 mm5.96 mm
41.51 mm
8.22 mm38.51 mm
h
l k
m
n
a
b
c
d
f
e
KR
KV
2.67 mm
g
23.03 mm
19.57 mm
11.60 mm
r
p
q.
12.05 mm
o
KR Boiler return
KV Boiler flow
Dimensions
Rated output kW 100 150 220 300 400 540
a mm 392 392 406 406 466 466
b mm 1291 1541 1525 1875 1800 2030
c mm 345 358 358 352 375 375
d mm 1891 1908 2168 2182 2457 2527
e mm 303 303 316 316 319 319
f mm 1093 1093 1179 1179 1219 1219
g mm DN 80 DN 80 DN 80 DN 125 DN 125 DN 125
h mm 2870 3120 3424 3780 4004 4232
k mm 320 370 370 440 480 548
l mm 870 870 1150 1150 1390 1390
m mm 1765 1765 2024 2024 2262 2262
n mm 1825 1825 2084 2084 2422 2492
o mm 700 700 700 700 700 742
p mm 870 870 1150 1150 1390 1390
q mm 673 673 673 673 673 750
r mm 1050 1050 1330 1330 1570 1570
PYROT rotation combustion
(cont.)
PYROT
11
5822 516 GB
