SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-1
3-1
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

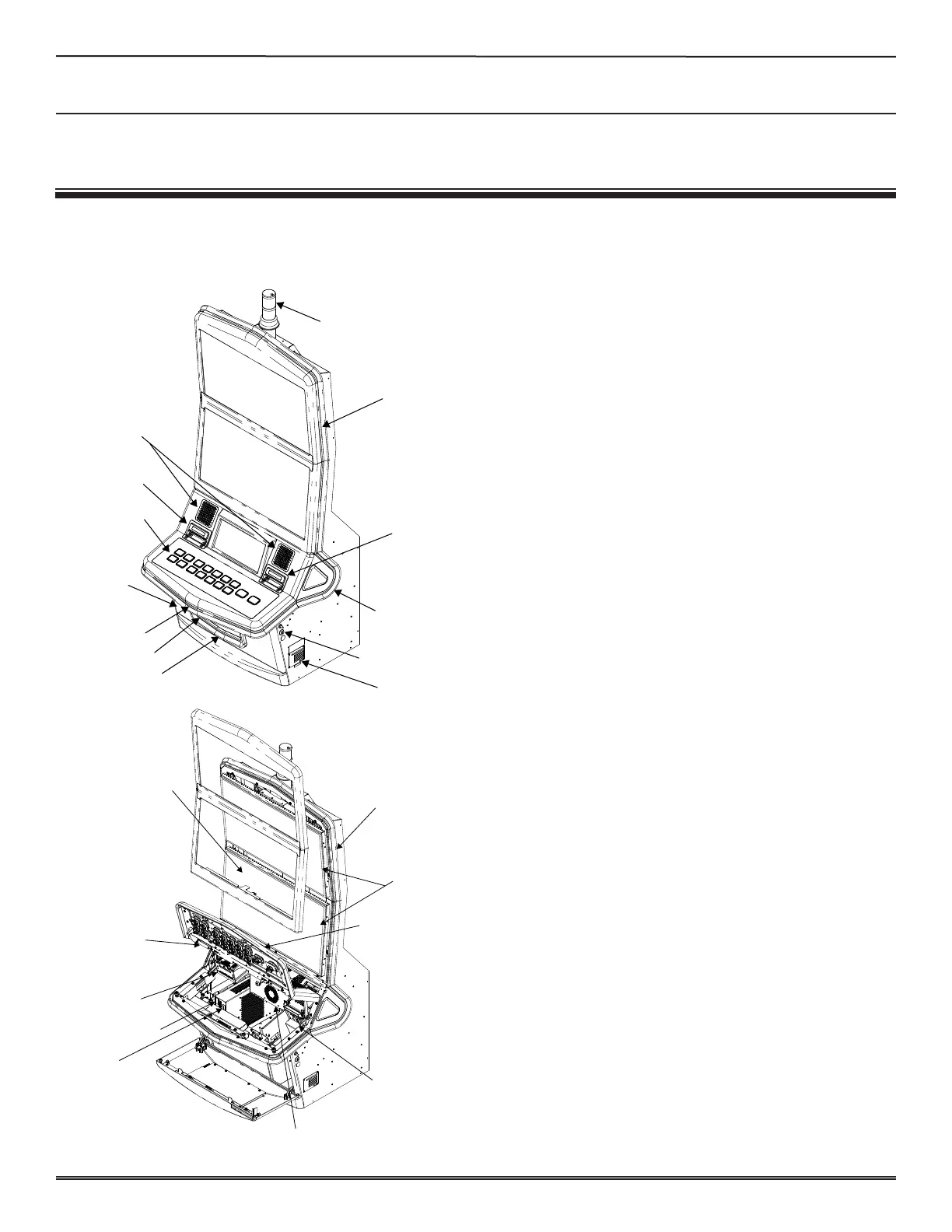

FUNCTIONAL OVERVIEW
This chapter describes names and functions of the main
parts. The following illustrations below to identify the major
components.
Tower Light
Hard Meters
LCD Edge
Light Panels
Bill Entry
Ticket Chute
Sub/Belly
Door Logo
Button Panel
Audit/Reset
Keyswitch
Sub Door Lock
Serial Plate
Main Door Lock
Elbow Light
Speakers
LCD
LED Light
Panel
Subwoofer
(located
behind LCD)
Speakers
(located on
deck door)
Player Tracking
Panel (located
on main deck
door)
Bill Validator
Access Door
Power Supply
Main Power
Switch (located
on power supply)
Logic Unit
Printer
SECTION 3
Parts, Assemblies & Hardware
MAINTENANCE OVERVIEW
Section 3, Parts, Assemblies & Hardware, describes part
removal and installation and includes a parts manual. This
manual is intended for experienced maintenance personnel
working on gaming machines.
• Removal: Describes how to remove components from the
cabinet. Note that you may need special tools depending
on the type of component removed. Turn off the game
power before servicing components inside the machine.
• Disassembly: Describes how to disassemble the
components removed from the cabinet into parts on which
maintenance can be performed.
• Assembly: Describes how to assemble the parts. Use
caution when reconnecting harnesses to ensure proper
operation. Incorrect assembly may cause malfunctions
or failures.
• Installation: Describes how to install the components
in the cabinet.
reQuired tools
• Phillips Screwdriver (No. 1 and No. 2)
• Small Phillips Screwdrivers (No. 0 and No. 1)
• 4 to 13 mm Nut Driver or Ratchet Wrench
• 4 to 13 mm Wrench Set
• 22 to 24 mm Double-end Wrench
• Hand Riveter
• Needle Nose Pliers
• Pliers
• Voltage and Amperage Tester
• Crimping Tool for Connectors
• Plastic Ties
• Wire Stripper
• Pin Extractor
• IC Extractor
• Wire Cutters
