Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-19
3-19
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

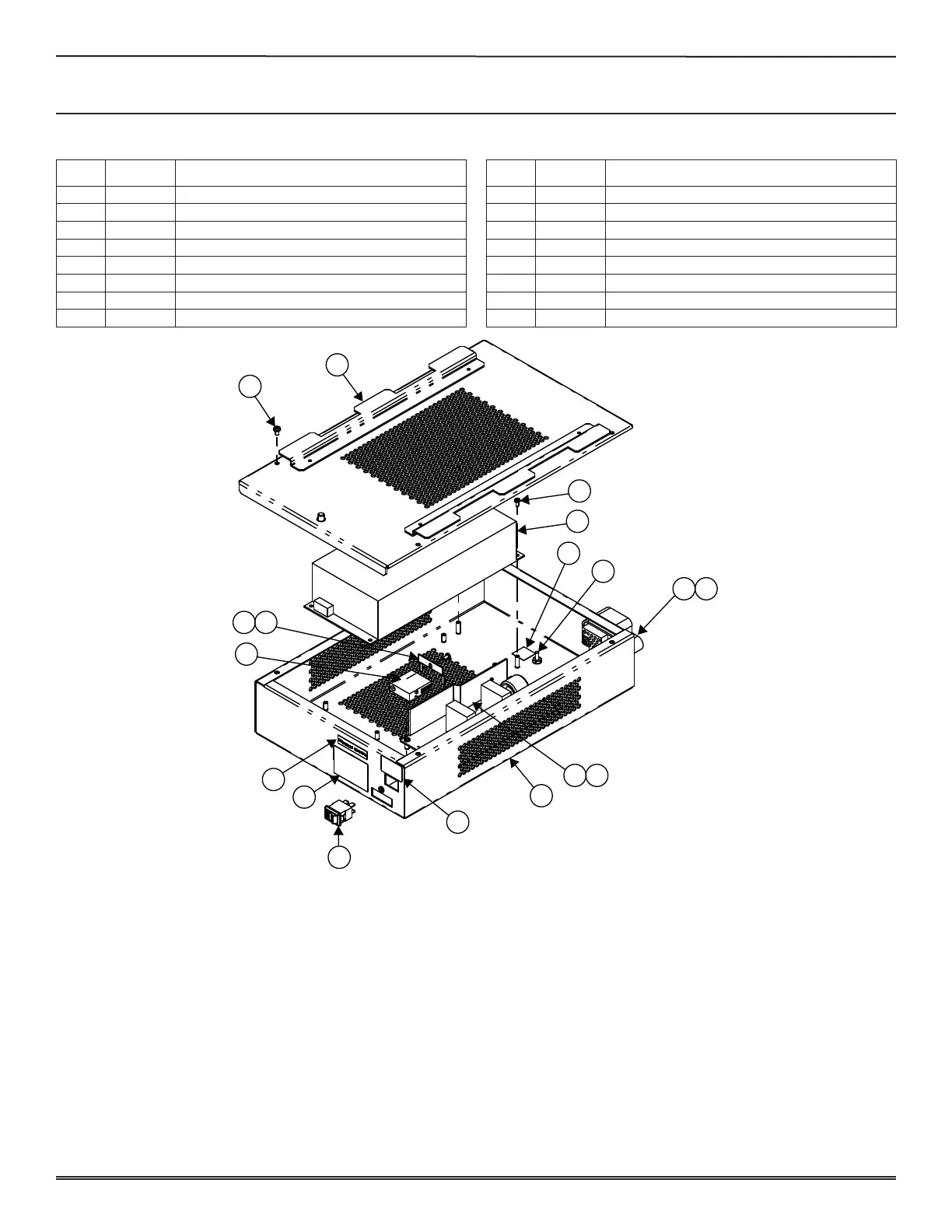

P/n 310610 assy, Ps
7
2
36
9
10
16
15
4
611
6
12
14
5
1 8
13
ITEM PART # DESCRIPTION
1. 110885 HRNS, PDM2, POWER SUPPLY
2. 130966 ASSY, WLDMNT, PS CVR
3. 190592 BRKT, RETAINING, SSR
4. 192690 HSG, PS
5. 450015 NUT, HEX KEP, 6-32 (2)
6. 450107 SCREW, SEMS, PH PHIL, 4-40 X 1/4 (9)
7. 450110 SCREW, SEMS, PH PHIL, 6-32 X 1/4 (4)
8. 450114 SCREW, SEMS, PH PHIL, 8-32 X 1/2 (2)
ITEM PART # DESCRIPTION
9. 490289 SSR, I/O, POWER SUPPLY
10. 490465 SWITCH, ROCKER, MINI EURO, 240VAC
11. 490837 SUPPLY, POWER, 12VDC, 150W, 100-240VAC
12. 490838 SUPPLY, POWER 24VDC, 300W, 100-240VAC
13. 830056 DECAL, REPLACE SAME FUSE
14. 830061 DECAL, EARTH GROUND (2)
15. 830076 DECAL, MAIN POWER, ON/OFF
16. 830978 DECAL, 100-240VAC 50/60Hz
