Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-21
3-21
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

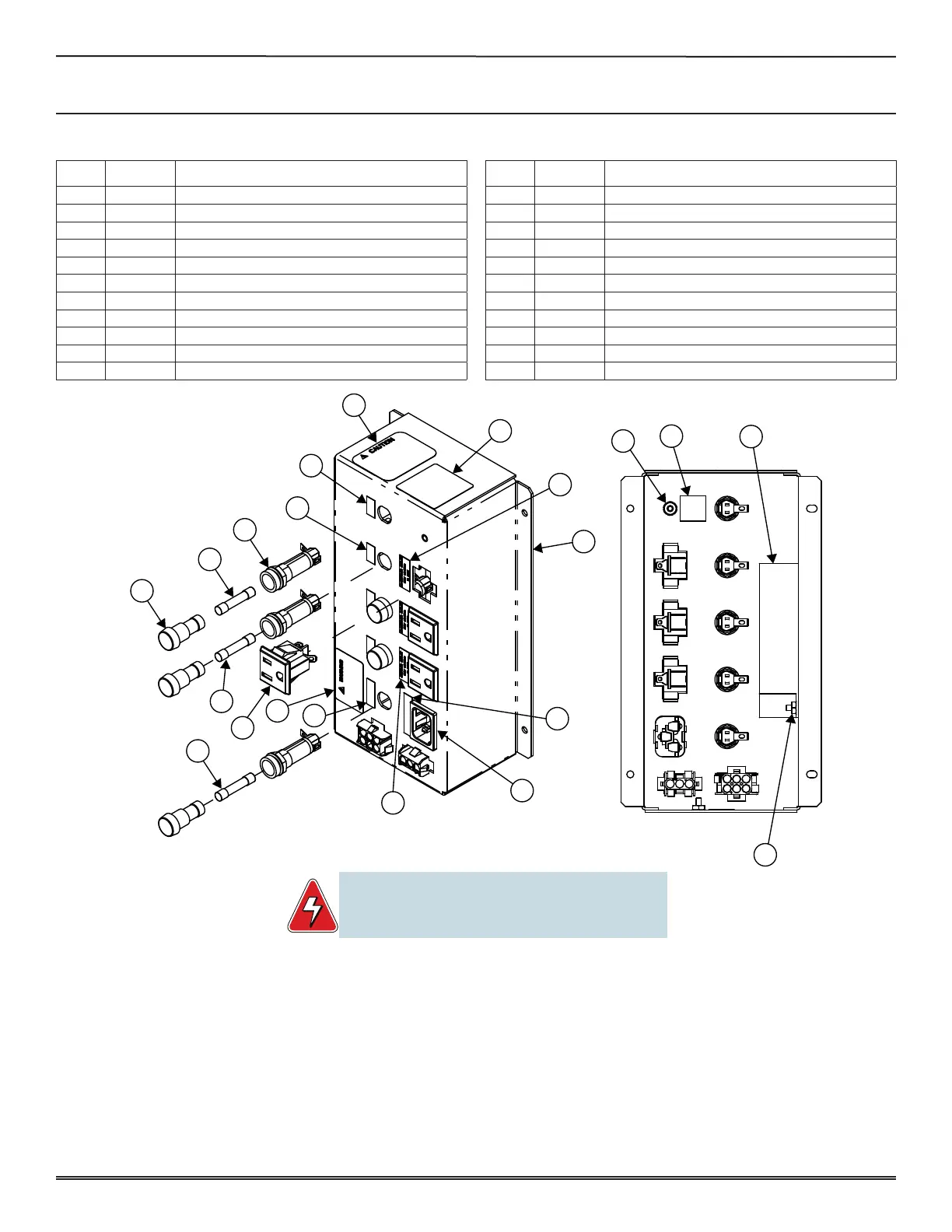

P/n 310612 assy, Pnl, PWr cont
4
7
6
15
16
11
20
12
1
2
14
2
9
10
17
19
18
13
5
8
3
ITEM PART # DESCRIPTION
- 110231 HRNS, AC INLET, NSR
- 110234 HRNS, AC INSIDE
1. 192719 HSG, PWR CONT PNL
2. 450015 NUT, HEX KEP, 6-32 (4)
3. 490033 FUSE, 2A, DIA 6.4 X 31.8 (3)
4. 490034 FUSE, 5A, DIA 6.4 X 31.8
5. 490036 FUSE, 10A, DIA 6.4 X 31.8
6. 490055 HOLDER, FUSE, 3453LF1-010 (5)
7. 490056 HOLDER, FUSE, KNOB, 3453LF1-020 (5)
8. 490079 OUTLET, CONVENIENCE, 120 VOLT (3)
9. 490290 FILTER, NOISE, NSR
ITEM PART # DESCRIPTION
10. 530032 CONNECTOR, AC
11. 830056 DECAL, REPLACE SAME FUSE
12. 830057 DECAL, TURN OFF PWR, ELECTRIC SHOCK
13. 830058 DECAL, CHECKING OR REPLACING FUSE
14. 830061 DECAL, EARTH GROUND (2)
15. 830068 DECAL, FUSE, 250V, 2A, 115VAC (3)
16. 830069 DECAL, FUSE, 250V, 5A, 115VAC
17. 830074 DECAL, AC 115V IN, 10A
18. 830075 DECAL, MASTER FUSE, 250V,10A 115VAC
19. 830674 DECAL, SWITCHED OUTLET, 120V, 1A MAX
20. 830676 DECAL, UN-SW OUT, 120V 1A MAX (2)
WARNING: Incorrect fuse replacement can result
in damage, injury or serious bodily harm. Replace
fuses with ones of the same type and electrical rating.
