Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-18
3-18
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

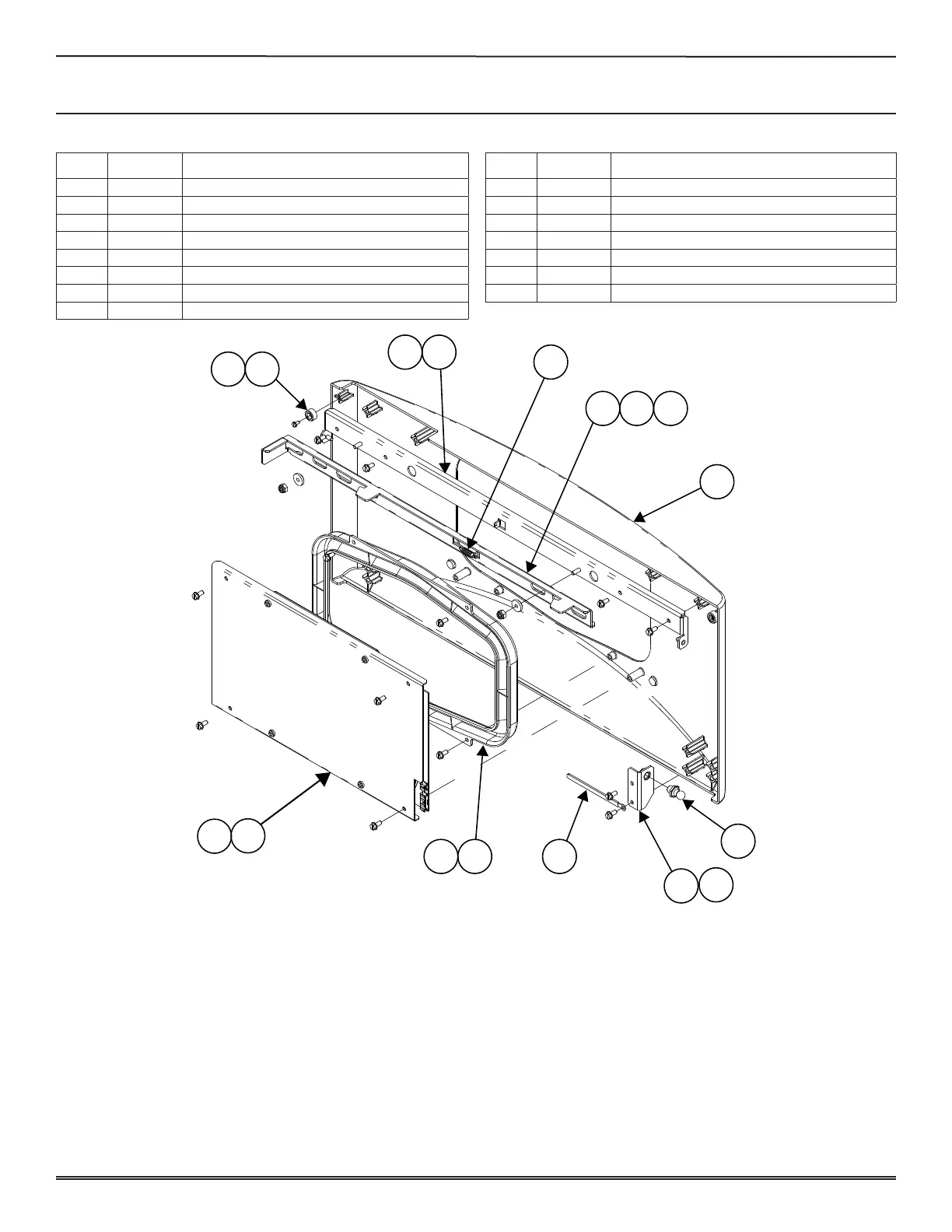

P/n 331276 assy, dr, sub
9
11
7
3
2 4
8
13
6
14
1012
1
5
11
11
11
ITEM PART # DESCRIPTION
- 110868 HRNS, PDM2, LED, BELLY (N/S)
1. 192735 BRKT, DAMPER, DR SIDE
2. 192816 BAR, SLIDE, MAIN DR
3. 192817 BRKT, MTG, SLIDE BAR
4. 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
5. 230118 BALL STUD, MODIFIED
6. 310653 ASSY, LOGO, MAIN DR
7. 410743 TRIM, LOGO, MAIN DR
ITEM PART # DESCRIPTION
8. 450160 SPRING, EXTENSION, .25DIA X 1LONG
9. 450282 NUT, HEX, NYLOCK, 8-32 (2)
10. 450420 SCREW, TPG, HEX WSHR HD, 4-40 X .250 (2)
11. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (14)
12. 450546 BUMPER, THRU-HOLE WITH WASHER (2)
13. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK
14. 610086 DOOR, MAIN
