SECTION 8
APPENDIX A: VLT QUEBEC
1-8-5
8-5
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
ITEM PART # DESCRIPTION
1. 130057 PLUG, RESET KEY (3)
10. 192724 BRKT, MTG, DAMPER, CAB SIDE
15. 192744 CAM, LOCK, DECK
16. 192745 BRKT, MTG, OPTIC SENSOR
28. 192846 CAM, LOCK, MAIN DR
32. 192919 PLT, SERIAL, CONCERTO, US/CANADA
33. 192922 CVR, HARNESS
34. 192927 CVR, RESET SW
35. 193398 BRKT, LATCH, ROTARY
36. 193718 PLT, BLANKING, HARDMETER
37. 193830 BRKT, MNT, RESET LOCK, INNER
38. 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
39. 230118 BALL STUD, MODIFIED
46. 310619 ASSY, ENCL, 4” WOOFER
48. 310648 ASSY, PLUNGER, SPRING
51. 310830 ASSY, ACT, ROTARY LATCH
59. 331537 ASSY, METER, INTERNAL MNT
70. 450015 NUT, HEX KEP, 6-32 (15)
71. 450016 NUT, HEX KEP, 8-32 (120)
72. 450057 SCREW, FLAT HEAD, 8-32X3/8 (2)
74. 450109 SCREW, SEMS, PAN HEAD PHILLIPS, 6-32 X 1/2
ITEM PART # DESCRIPTION
82. 450163 RIVET, POP, 1/8” DIA X 3/8” LONG (4)
84. 450176 WASHER, #8 FLAT (4)
85. 450185 DOOR STAY, 10.5” (2)
86. 450282 NUT, HEX, NYLOCK, 8-32 (8)
87. 450285 WSHR, FNDR, #10 OD 1”X7/32 ID X 3/64 (3)
88. 450386 SPRING, EXT, 2.25” FL, .375 OD, .039 WD
89. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (4)
90. 450467
SCREW, SEMS, PAN HD, PHILLIPS, 1/4-20 X
1/2 (2)
94. 450587 RING, RTNG, EXT, E-STYLE, 1/2 SHAFT
95. 450588 HINGE, CONCEALED, 90 DEG OPENING (2)
96. 450589 SCREW, TPG, HEX WSHR HD, 10-32 X .375 (4)
97. 450601 DAMPER, 235 LG X 76 STROKE, W/ END FTG
100. 450605 SPACER, LOCK, 1/2 LG
101. 450631
LATCH, ROTARY, TWO STAGE, LH, IN-LINE
ACT, 1/4-20 THD
102. 490065 SENSOR, PHOTO, ALEPH
104. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (34)
105. 490500 SWITCH, CHERRY, E79-00A (3)
113. 610087 CVR, BTM, MAIN DR
114. 710000 LOCK, BARREL, .625 LONG (2)

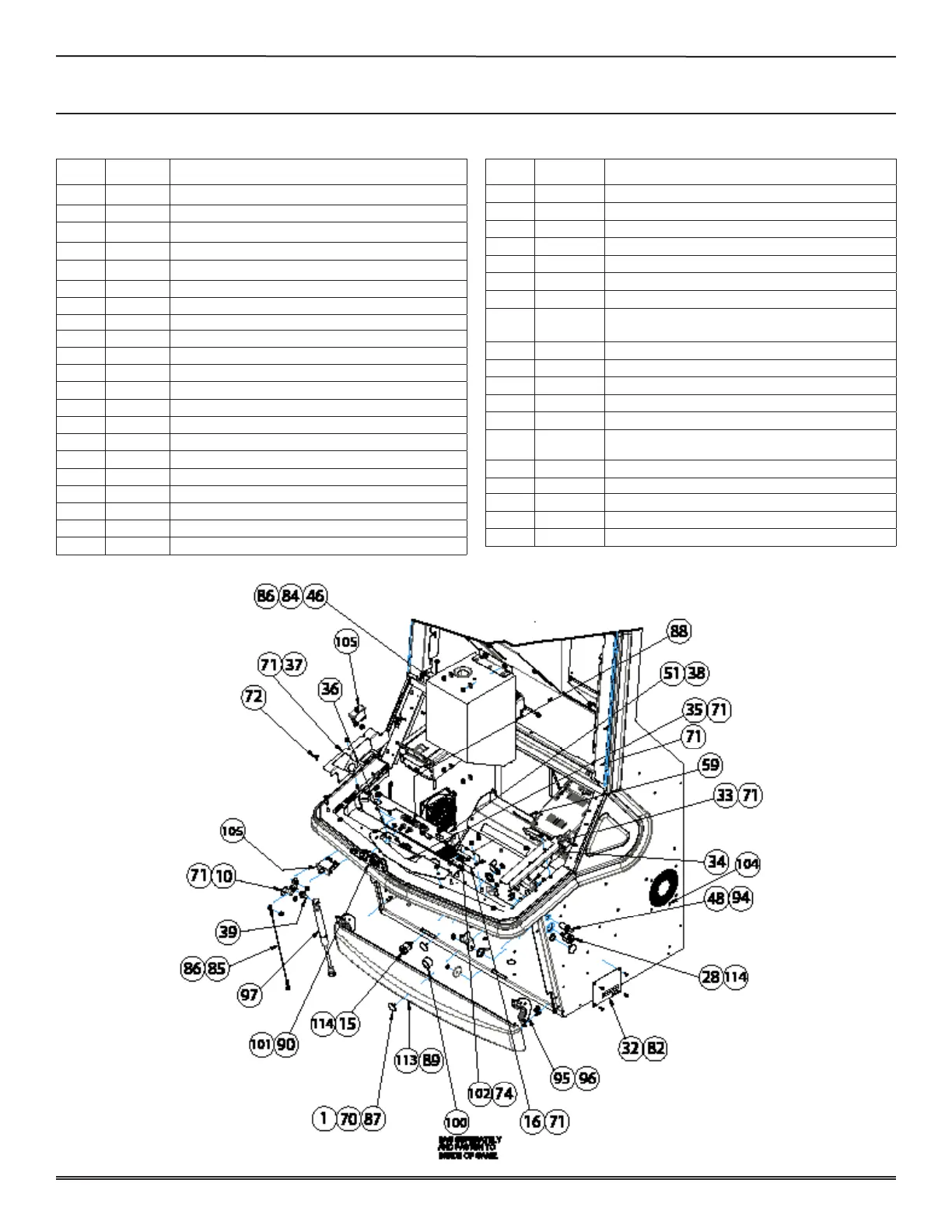

P/n 331529 assy, cab, Main (Fig. 3 oF 3)
