SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-6
3-6
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

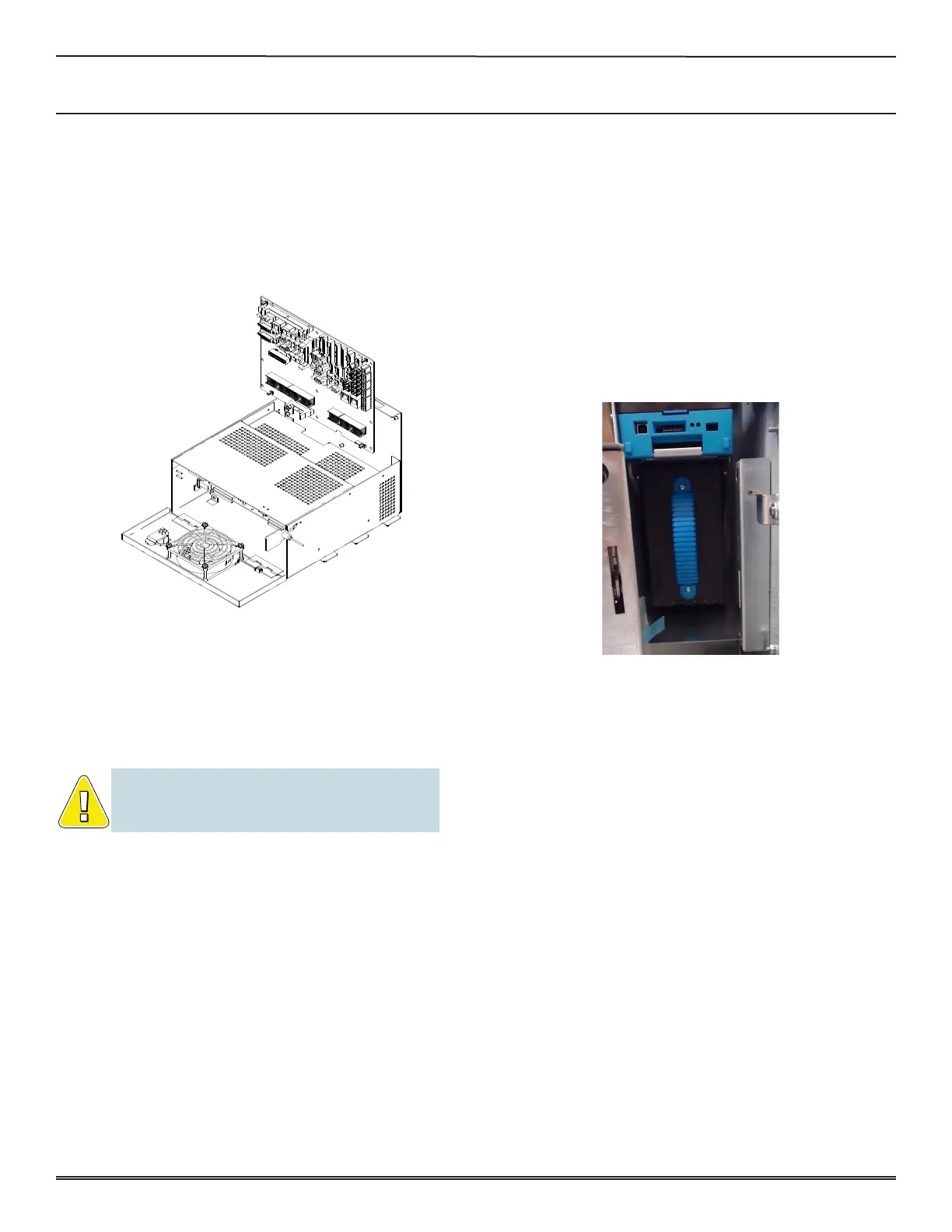

BACKPLANE BOARD
reMoval
1. Remove MPU Board.
2. Disconnect harnesses from Backplane Board.
3. Remove nine #6-32 screws from Backplane Board.
4. Remove Backplane Board.
installation
1. Place Backplane Board in position and install nine #6-32
screws into Backplane Board.
2. Connect harnesses.
3. Install MPU Board.
NOTE: Each #6-32 screw secures a grounded
connection between the backplane board and the
game. All screws are required for proper operation.
BILL VALIDATOR
reMoval
1. Unlock and open both Deck Door and Sub Door.
2. Turn off machine power.
3. Unlock and open Bill Cassette Door.
4. Remove Bill Cassette Box.
5. Remove the two M4 X 6 screws on the left side of the
Enclosure.
6. Remove the four M3 X 6 screws on the back of the Bill
Validator Frame.
7. Remove Bill Validator.
installation
1. Install Bill Validator.
2. Secure with the four M3 X 6 screws on the back of the
Bill Validator frame.
3. Secure the two M4 X 6 screws on the left side of the
Enclosure.
4. Install bill Cassette Box.
5. Close and lock Bill Cassette Door.
6. Turn on machine power.
7. Close and lock both Deck Door and Sub Door.
