Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-27
3-27
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

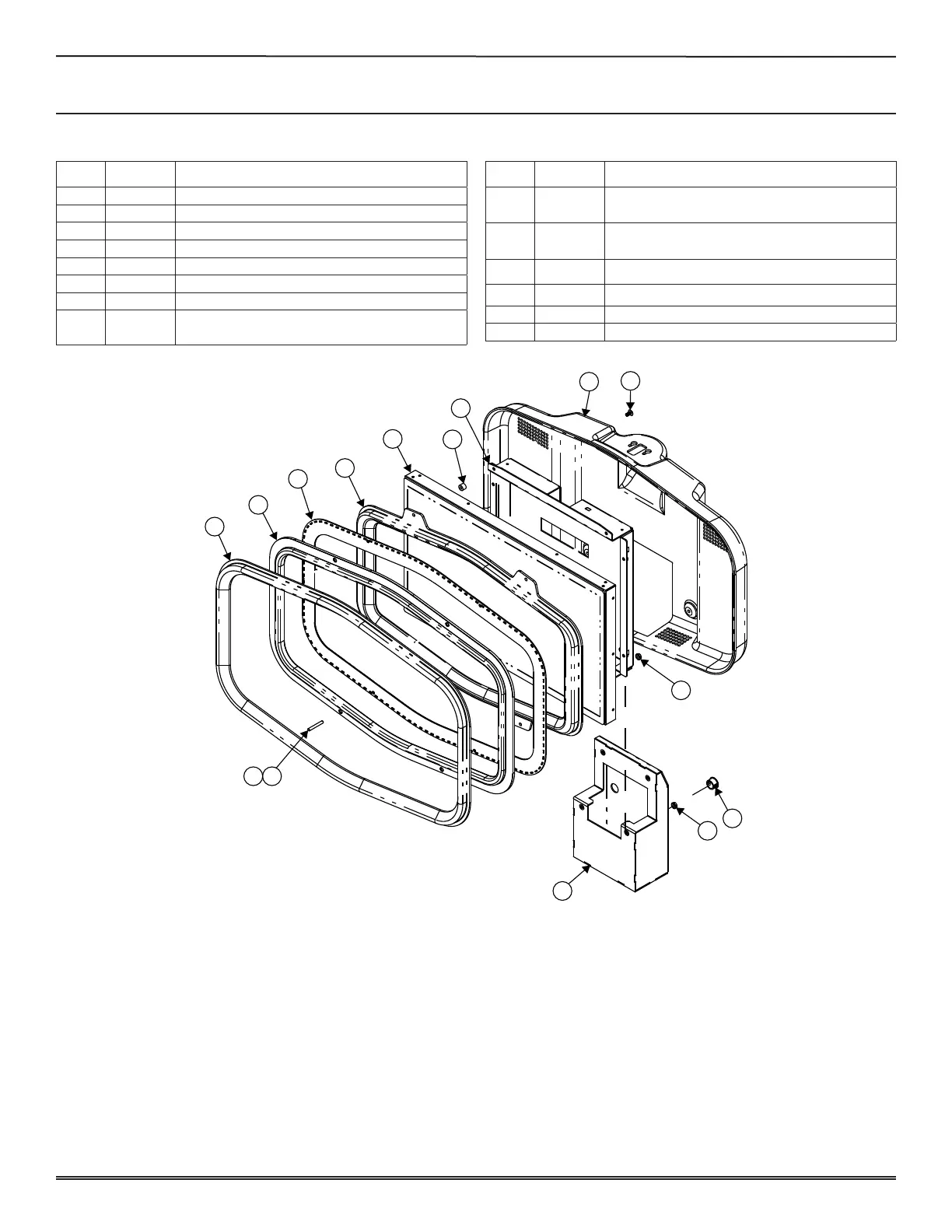

P/n 310713 assy, toPPer, tovis lcd
3
11
5
6
7
4
2
12
10
13
6
8
1
9
6
ITEM PART # DESCRIPTION
- 110892 HRNS, PDM2, LED, TOPPER2 (N/S)
1. 131010 ASSY, WLDMNT, TOPPER STAND
2. 192862 BRKT, SPRT, TOPPER
3. 310647 ASSY, DIFF, TOPPER
4. 410653 HSG, TOPPER
5. 410662 BEZEL, TOPPER
6. 450016 NUT, HEX KEP, 8-32 (12)
7. 450590
SCREW, TRUSS HD PHIL, 8-32 X .375, BLK
OXIDE (4)
ITEM PART # DESCRIPTION
8. 450596
SPACER, #8, .375OD X .281LG, NYLON, OFF-
WHITE (4)
9. 450597
PLUG, HOLE, .625 DIA X .016-.125 PNL THKNS,
BLK (4)
10. 450598 STUD, 8-32 X 1.25, W/ SLOT (4)
11. 530589 PCB, PODIUM2, LED, PDM2-TOPPER
12. 530649 LCD, TOVIS, 19.5”, WITH GLASS
13. 610097 TRIM, ELP, TOPPER
