Konami KGP 3.5 PDM2 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-9
3-9
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

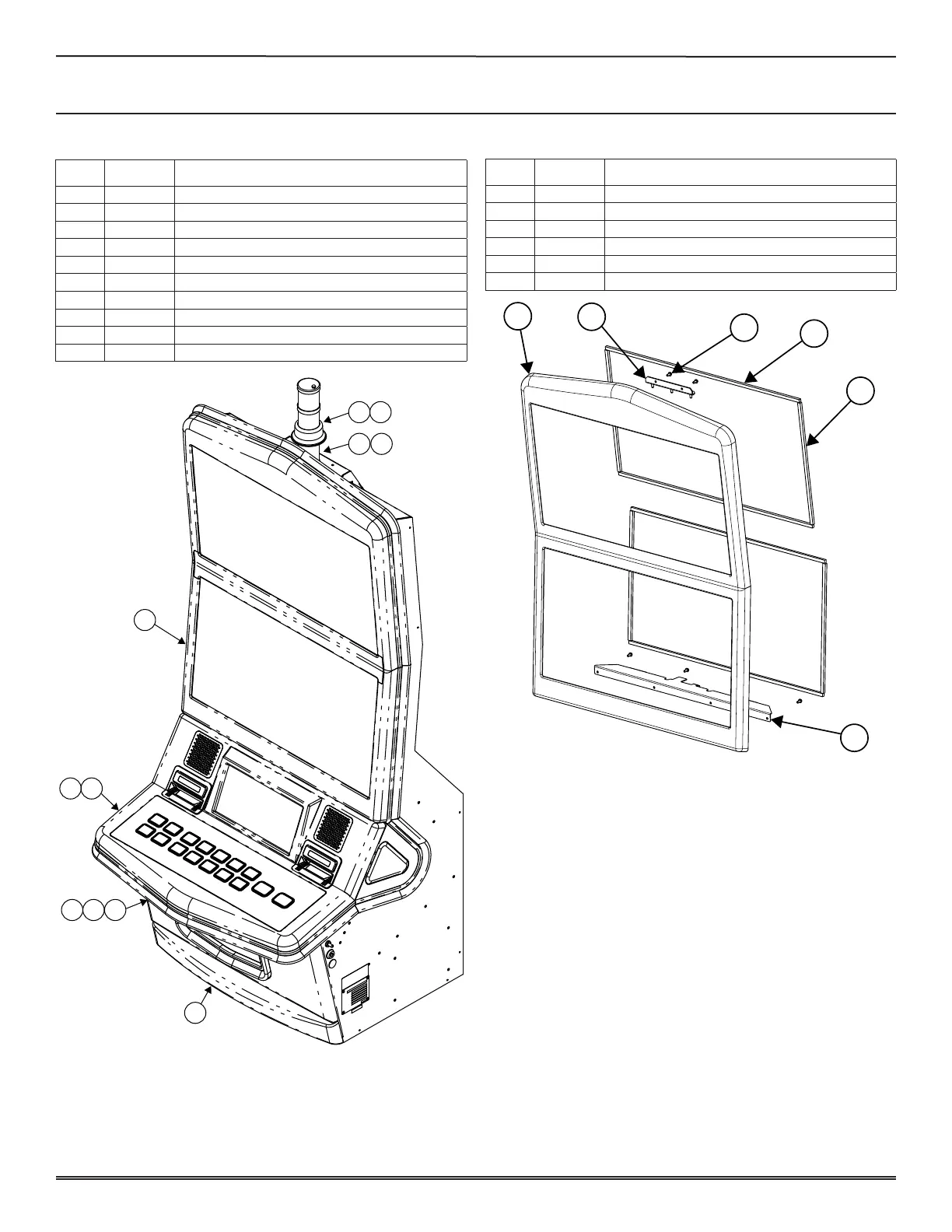

P/n 810192 assy, Main MacHine
ITEM PART # DESCRIPTION
1. 130937 ASSY, WLDMNT, CANDLE MNT
2. 310617 ASSY, DISPLAY DOOR
3. 331259 ASSY, CAB, MAIN
4. 331276 ASSY, DR, MAIN
5. 331278 ASSY, DECK
6. 450016 NUT, HEX KEP, 8-32 (8)
7. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
8. 450282 NUT, HEX, NYLOCK, 8-32 (2)
9. 450589 SCREW, TPG, HEX WSHR HD, 10-32 X .375 (4)
10. 630088 TOWER, 2 TIER
1
6
10
7
2
6
5
984
3
P/n 310617 assy, disPlay door
ITEM PART # DESCRIPTION
1. 192801 BRKT, LATCH, DOOR
2. 192810 BRKT, MNT, UPPER, DSPL DR
3. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (6)
4. 470074 TAPE, FOAM, TOP & BOT, DSPL DR (4)
5. 470075 TAPE, FOAM, SIDE, DSPL DR (4)
6. 610099 DOOR, DISPLAY, SINGLE PIECE
1
2
3
4
6
5
