SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-4
3-4
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

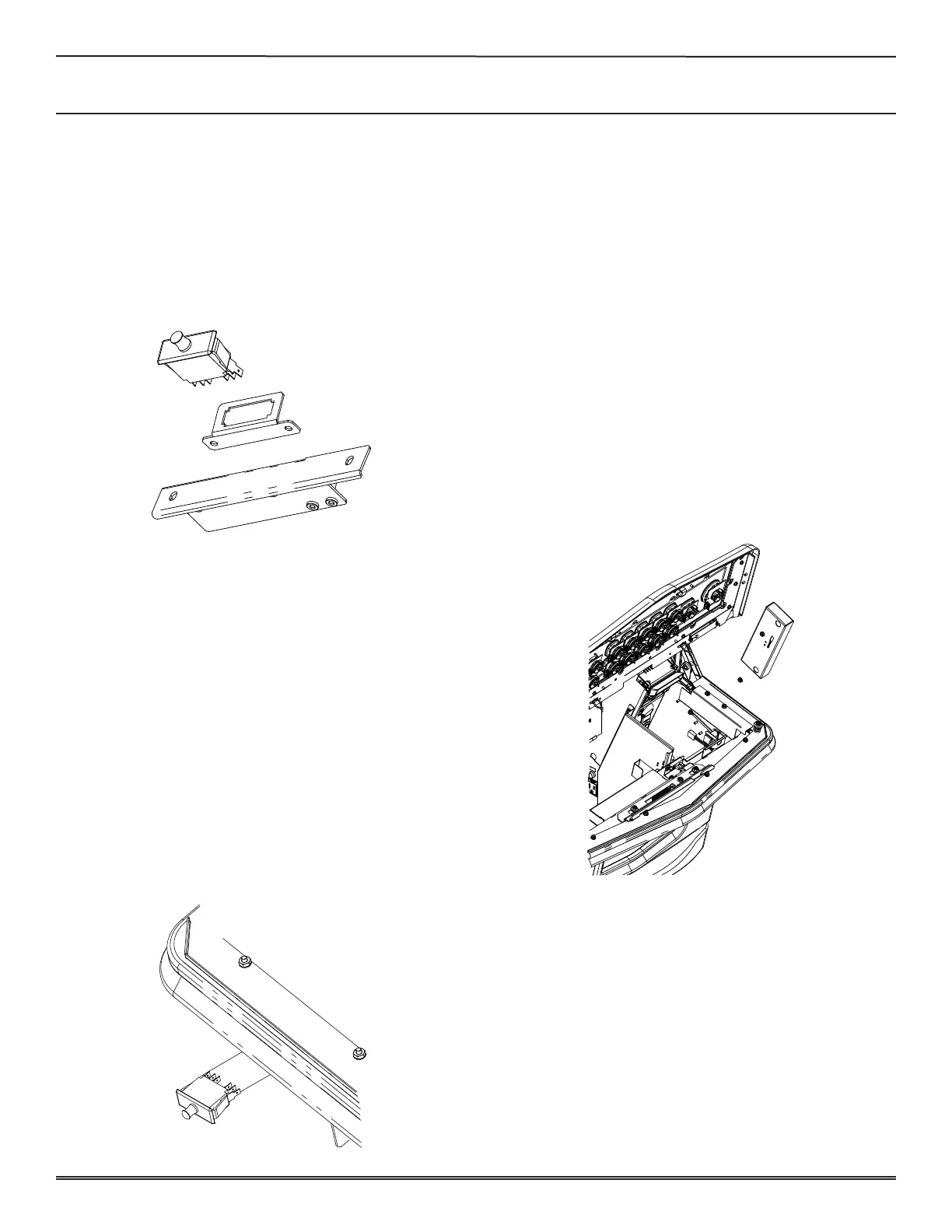

DISPLAY DOOR SWITCH
reMoval
1. Unlock and open Deck Door.
2. Unlatch Display Door and remove door to access Switch.
3. Note wire locations for installation and remove wires
from back of Switch.
4. Grasp the Display Door Switch from the top and bottom
behind the mounting bracket and push Switch forward.
installation
1. Insert switch from the front of machine.
2. Gently push switch into the bracket until it seats.
3. Connect wires to terminals.
4. Install and latch display door.
5. Turn on machine power.
6. Close and lock deck door.
SUB DOOR SWITCH
reMoval
1. Unlock and open Sub Door.
2. Note wire locations for installation and remove all wires
from Switch.
3. Gently grasp Sub Door Switch from the top and bottom
behind the mounting bracket and push the Switch forward.
installation
1. Insert Switch from the front of the machine.
2. Gently push Switch into the bracket until it seats.
3. Connect wires to the terminals.
4. Turn on machine power.
5. Close and lock Sub Door.
BILL VALIDATOR SWITCH ASSEMBLY
reMoval
1. Unlock and open Sub Door and Main Deck Door.
2. Turn off machine power.
3. Open Bill Validator Door and remove Stacker.
4. Remove Bill Validator.
5. Disconnect harnesses from Bill Validator Door Switch
Assembly.
6. Remove two #8-32 nuts and Bill Validator Door Switch
Assembly.
installation
1. Install Bill Validator Door Switch Assembly and secure
with two #8-32 nuts.
2. Connect harnesses to Bill Validator Door Switch Assembly.
3. Install Bill Validator.
4. Turn on machine power.
5. Close and lock Main Deck Door and Sub Door.
