SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-20
3-20
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

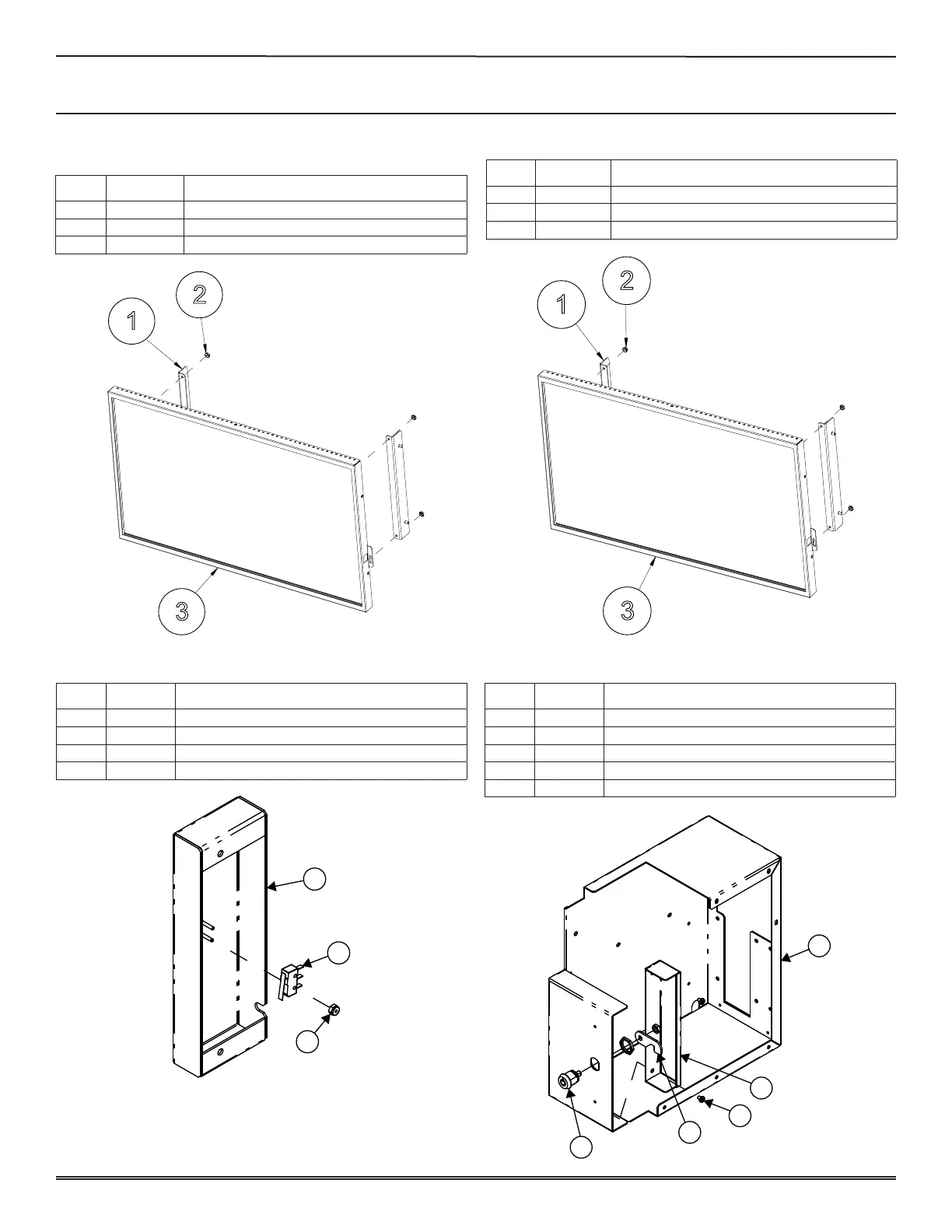

P/n 310620 assy, lcd, Wg, 27”, W/ts PodiuM
ii
2
1
3
ITEM PART # DESCRIPTION
1. 192738 BRKT, MTG, LCD (2)
2. 450016 NUT, HEX, KEP, 8-32 (4)
3. 530732 LCD, WG, 27”, W/TS, CLSD FRAME
P/n 310652 assy, lcd, Wg, 27”, W/o ts
2
1
3
ITEM PART # DESCRIPTION
1. 192738 BRKT, MTG, LCD (2)
2. 450016 NUT, HEX, KEP, 8-32 (4)
3. 530733 LCD, WG, 27”, WO/TS, CLSD FRAME
P/n 331272 assy, sW, bv dr
1
2
3
ITEM PART # DESCRIPTION
- 110054 HRNS,BILL DOOR SWITCH
1. 192689 BRKT, SW, BV DR
2. 450144 NUT, NYLOK, 2-56 (2)
3. 490050 SWITCH,OMRON,SBMIN, W/LVR ACTUATOR
P/n 331271 assy, Hsg, bv
1
5
2
3
4
ITEM PART # DESCRIPTION
1. 130964 ASSY, WLDMNT, BV HSG
2. 192688 CAM, DR, BV
3. 192699 CVR, LOCK, BV
4. 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
5. 710000 LOCK, BARREL, .625 LONG
