Konami KGP 3.5 PDM2 User Manual

SECTION 8
APPENDIX A: VLT QUEBEC
1-8-3
8-3
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)

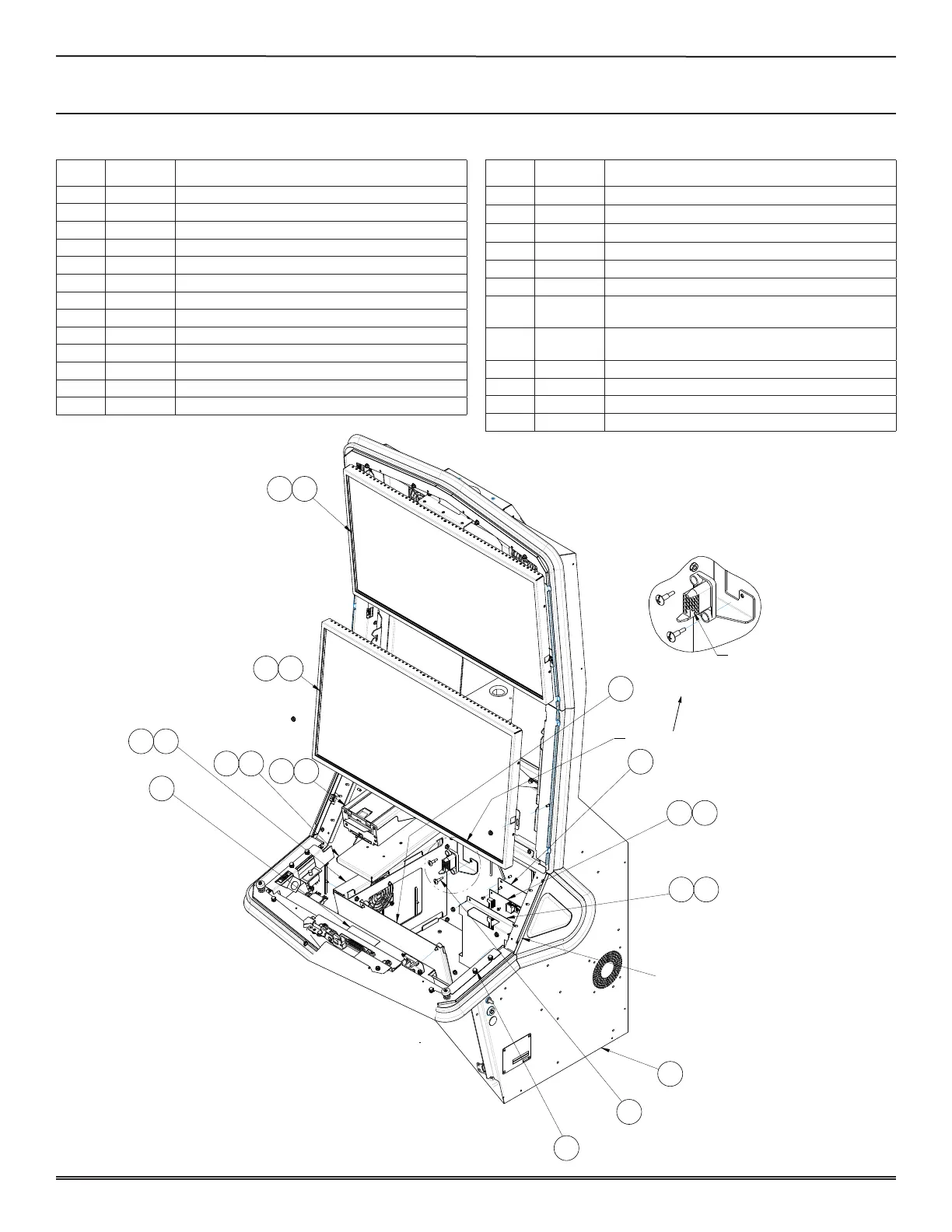

P/n 331529 assy, cab, Main (Fig. 1 oF 3)
ITEM PART # DESCRIPTION
- 110465 HRNS, K3-URV, LED, LINK
- 110864 HRNS, PDM2, LED, B2B (7)
- 110865 HRNS, PDM2, LED, B2B-2
- 110866 HRNS, PDM2, BV
- 110867 HRNS, PDM2, PRINTER
- 110886 HRNS, PDM2, UPPER
- 110890 HRNS, PDM2, BASE
- 110895 HRNS, PDM2, LED, DECK2ELBOW
- 111238 HRNS, PDM2, DOOR SW, VLT QUEBEC
2. 130947 ASSY, WLDMNT, MAIN CAB
8. 192697 BRKT, MTG, PS HSG
9. 192698 BRKT, MTG, PTR
11. 192736 PNL, MTG, ICON PCB
ITEM PART # DESCRIPTION
12. 192737 CVR, ICON PCB
20. 192773 PNL, CVR, FRT
47. 310620 ASSY, LCD, WG, 27”, W/TS
49. 310652 ASSY, LCD, WG, 27”, W/O TS
50. 310821 PRINTER, JCM, GEN 5 UNIV
71. 450016 NUT, HEX KEP, 8-32 (120)
73. 450107
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X
1/4 (6)
79. 450127
SCREW, SEMS, PAN HEAD PHILLIPS, M4 X 6
(10)
80. 450155 NUT, HEX ACORN, 8-32 (7)
81. 450161 SCREW, CONNECTOR MOUNTING (2)
111. 530590 PCB, PODIUM2, PDM2-ICON
115. 830080 DECAL, SERVICE PHONE NUMBER
SEE DETAIL A
DETAIL A
71
49
71
47
11
111
73
20
71
12
2
81
80
79
50
115
71
8
71
9
NOTE: APPLY ONE PIECE OF GASKET 470052,
APPROX. 7.87" LONG, AS SHOWN. APPLY ON
BOTH SIDES.
SCALE 0.500
ORIENT CONNECTOR
NOTCH AS SHOWN
