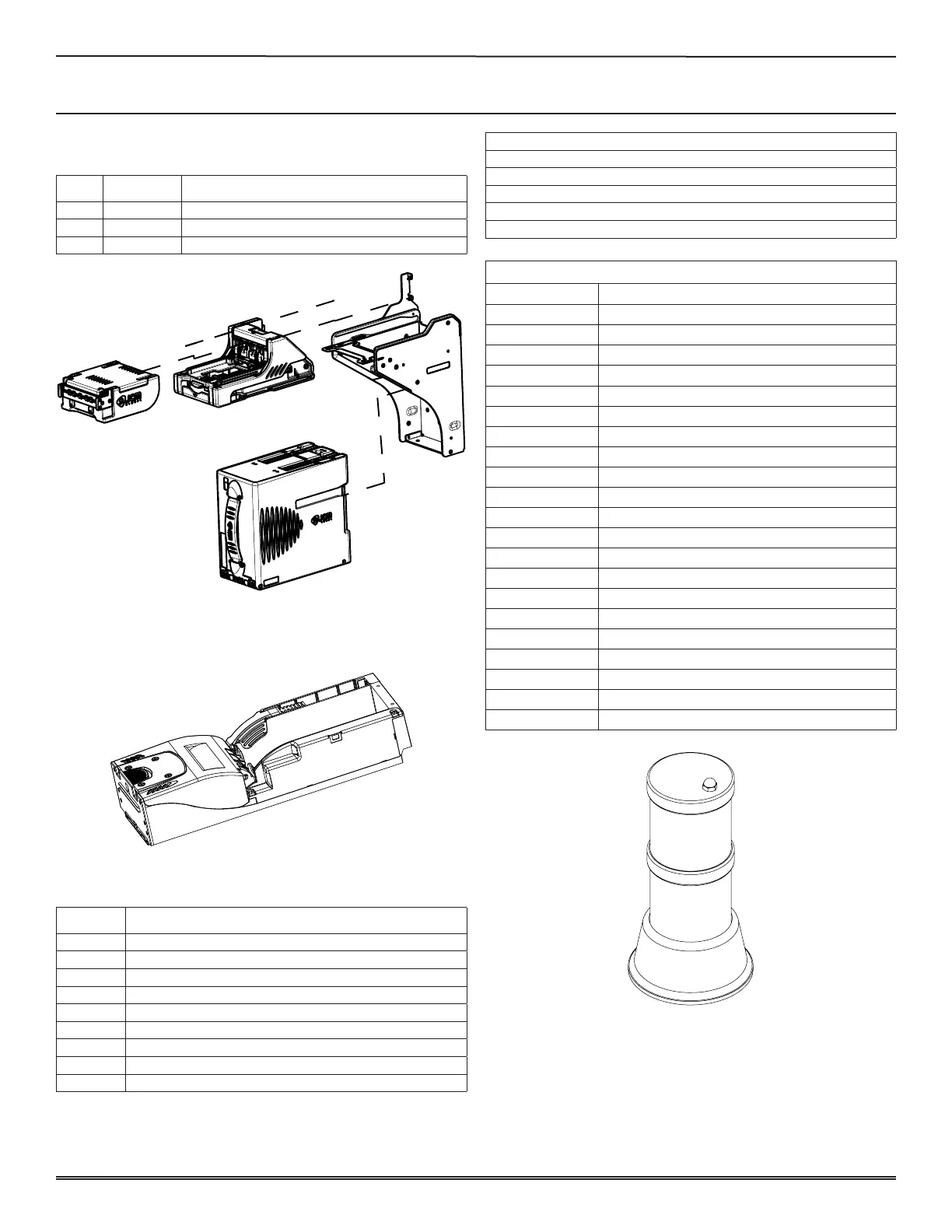

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE

1-3-29

3-29

CONCERTO UPRIGHT

(Original Instructions)

gaMe PoWer cord oPtions:

PART # DESCRIPTION

490078

CORD, AC, 7.5’ US/CANADA

490466 CORD, AC, 250V, 10A, IRAM (ARGENTINA)

490467 CORD, AC, 250V, 10A, UK

490468 CORD, AC, 250V, 10A, EUROPE/KOREA

490469 CORD, AC, 250V, 10A, AUSTRALIA

490470 CORD, AC, 250V, 10A, CHILE/ITALY

490514 CORD, AC, IEC320 C14 TO C13

490515 CORD, AC, 250V, 10A, NEMA 6-15P, IEC320-C13

490516 CORD, AC, 250V, 10A, SWITZERLAND

P/n 630088 assy, toWer, tWo-tier, cHroMe (tall)

P/n 630007 assy, toWer, tWo-tier, cHroMe (sHort)

P/n 630015 assy, toWer, tWo-tier, gold (tall)

P/n 630016 assy, toWer, tWo-tier, gold (sHort)

P/n 630025 assy, toWer, tHree-tier, cHroMe (sHort)

P/n 630026 assy, toWer, tHree-tier, gold (sHort)

SIGNAL TOWER FILTERS PART NUMBERS

PART # DESCRIPTION

630001 FILTER, TALL, YELLOW

630002 FILTER, TALL, RED

630005 FILTER, TALL, BLUE

630008 FILTER, TALL, ORANGE

630009 FILTER, TALL, GREEN

630010 FILTER, SHORT, RED

630011 FILTER, SHORT, BLUE

630012 FILTER, SHORT, YELLOW

630013 FILTER, SHORT, GREEN

630014 FILTER, SHORT, ORANGE

630017 FILTER, TALL, BROWN

630018 FILTER, TALL, PINK

630019 FILTER, SHORT, BROWN

630020 FILTER, SHORT, PINK

630021 FILTER, YEL/GRN/BLUE, Multi-Denom

630022 FILTER, YEL/ORG/BLUE, Multi-Denom

630023 FILTER, TWO-TIER, SHORT, PURPLE

630024 FILTER, TWO-TIER, TALL, PURPLE

630029 FILTER, TRIPLE, RED/WHT/RED

630030 FILTER, TRIPLE, RED/WHT/YEL

630031 FILTER, TRIPLE, RED/WHT/GREY

P/n 310437 Prt, Future logic, gen3,

450 tkt

P/n 310375 assy, bv, JcM iviZion, 1000 note,

72MM

ITEM PART # DESCRIPTION

1. 310338 HEAD, BV

2. 310339 TRANSPORT, BV

3. 310343 BILL BOX, 1000 NOTE, JCM IVIZION
