SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-14
3-14
© 2018 Konami Gaming Inc. P/N 810237
CONCERTO UPRIGHT
(Original Instructions)
ITEM PART # DESCRIPTION
- 110465 HRNS, K3-URV, LED, LINK
- 110864 HRNS, PDM2, LED, B2B (7)
- 110865 HRNS, PDM2, LED, B2B-2
- 110866 HRNS, PDM2, BV
- 110867 HRNS, PDM2, PRINTER
- 110886 HRNS, PDM2, UPPER
- 110890 HRNS, PDM2, BASE
- 110895 HRNS, PDM2, LED, DECK2ELBOW
- 110896 HRNS, PDM2, DOOR SW
1. 130057 PLUG, RESET KEY (3)
9. 192724 BRKT, MTG, DAMPER, CAB SIDE
14. 192744 CAM, LOCK, DECK
15. 192745 BRKT, MTG, OPTIC SENSOR
27. 192846 CAM, LOCK, MAIN DR
31. 192919 PLT, SERIAL, CONCERTO, US/CANADA
32. 192922 CVR, HARNESS
33. 192923 BRKT, SW, DECK
34. 192927 CVR, RESET SW
35. 193398 BRKT, LATCH, ROTARY
36. 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
37. 230118 BALL STUD, MODIFIED
38. 310025 ASSY, KEYSWITCH, ROTARY, SLIDE
49. 310648 ASSY, PLUNGER, SPRING
51. 310830 ASSY, ACT, ROTARY LATCH
52. 330920 ASSY, METER
ITEM PART # DESCRIPTION
59. 410292 CVR, METER
69. 450015 NUT, HEX KEP, 6-32 (15)
70. 450016 NUT, HEX KEP, 8-32 (118)
72. 450109
SCREW, SEMS, PAN HEAD PHILLIPS, 6-32 X
1/2
80. 450163 RIVET,POP,1/8”DIA X 3/8” LONG (4)
83. 450185 DOOR STAY, 10.5” (2)
84. 450282 NUT, HEX, NYLOCK, 8-32 (8)
85. 450285
WASHER, FENDER, #10 OD 1”X7/32 ID X 3/64
(3)
86. 450386 SPRING,EXT, 2.25” FL, .375 OD, .039 WD
87. 450430 SCREW, TPG, HEX WSHR HD, 8-32 X .375 (4)
88. 450467
SCREW, SEMS, PAN HD, PHILLIPS, 1/4-20 X
1/2 (2)
90. 450587 RING, RTNG, EXT, E-STYLE, 1/2 SHAFT
91. 450588 HINGE, CONCEALED, 90 DEG OPENING (2)
92. 450589 SCREW, TPG, HEX WSHR HD, 10-32 X .375 (4)
93. 450601 DAMPER, 235 LG X 76 STROKE, W/ END FTG
96. 450605 SPACER, LOCK, 1/2 LG
97. 450631
LATCH, ROTARY, TWO STAGE, LH, IN-LINE
ACT, 1/4-20 THD
98. 490044 SWITCH,CHERRY, E79-30A (3)
99. 490065 SENSOR, PHOTO, ALEPH
101. 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (36)
109. 610087 CVR, BTM, MAIN DR
110. 710000 LOCK, BARREL, .625 LONG (2)
111. 830079 DECAL, RESET, AUDIT

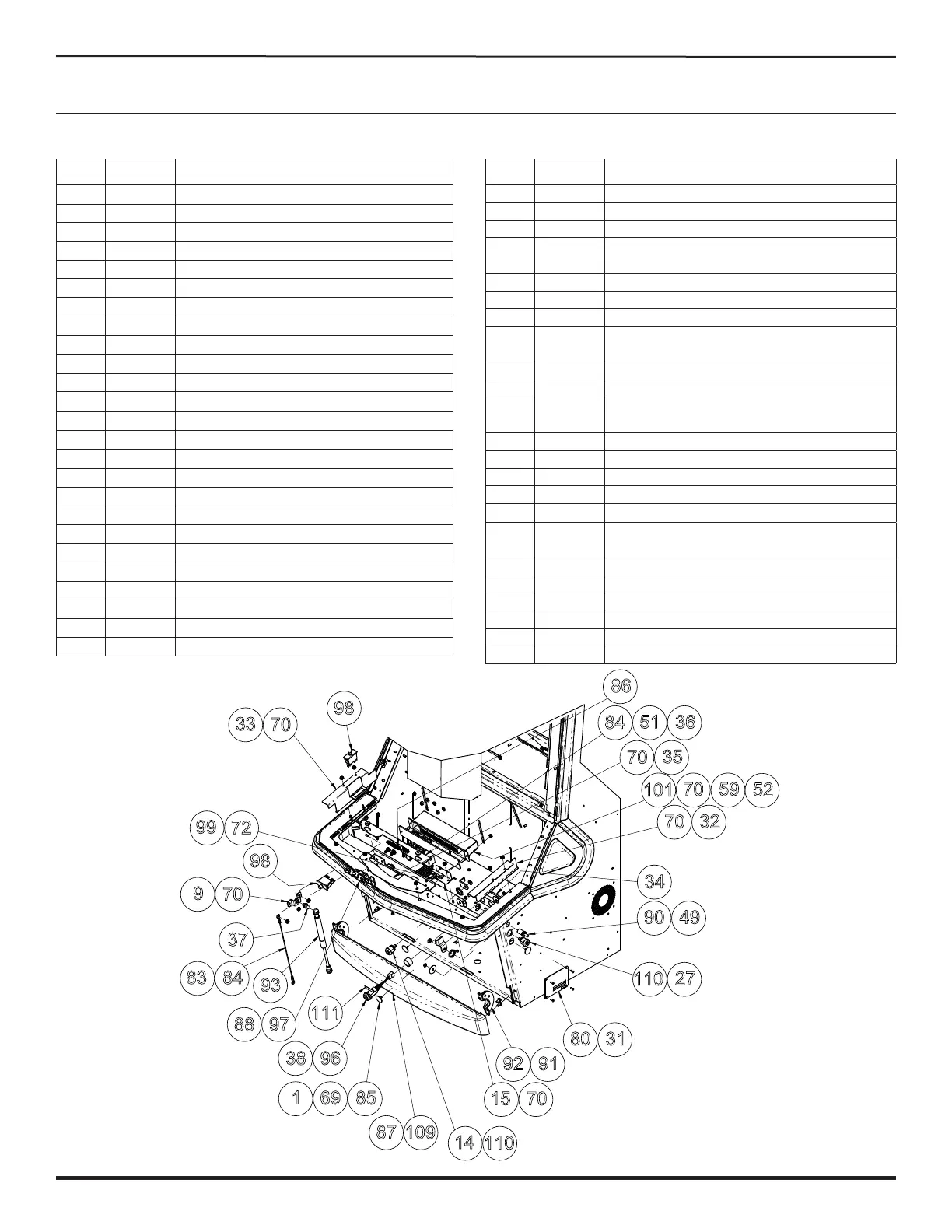

P/n 331259 assy, cab, Main (Fig. 5 oF 6)
9
37
70
38 96
88 97
33
98
98
70
1
69
14
110
87
109
99
72
15
70
83
93
84
80
31
111
92
91
90
49
70
32
52
86
70
35
34
110
27
85
84
51
36
101
70
59
To Next Page
